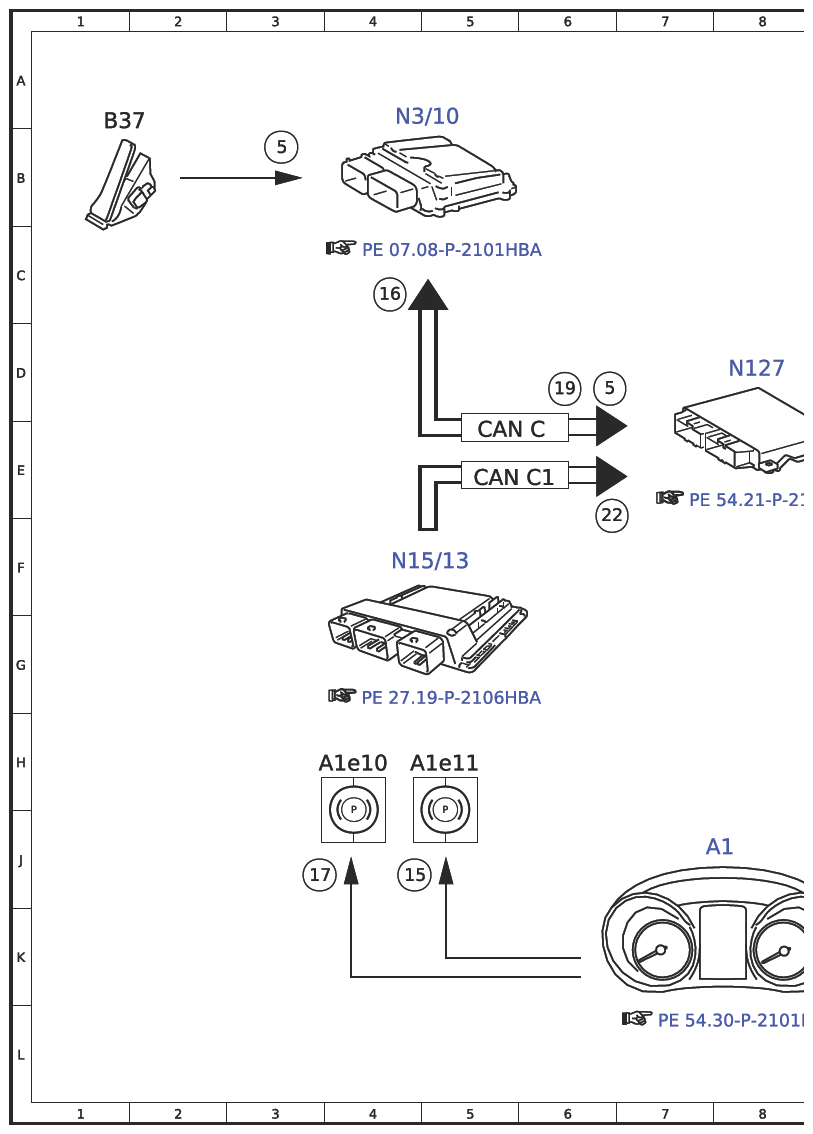

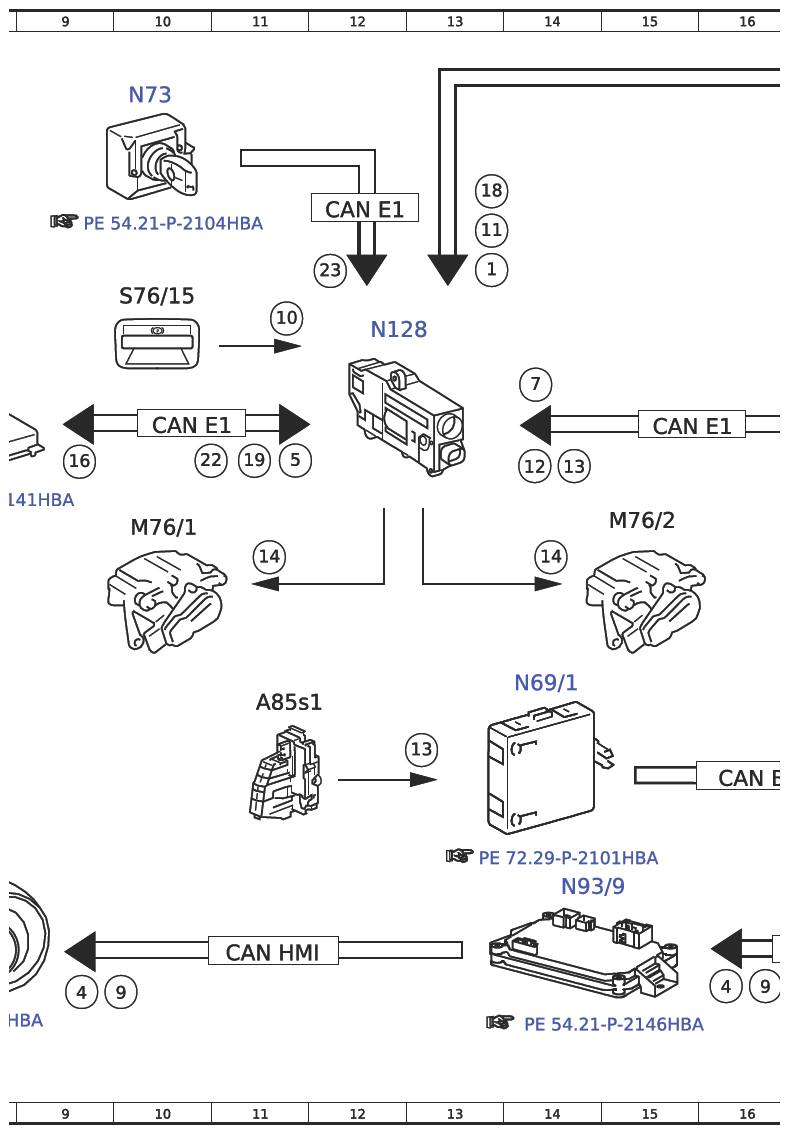

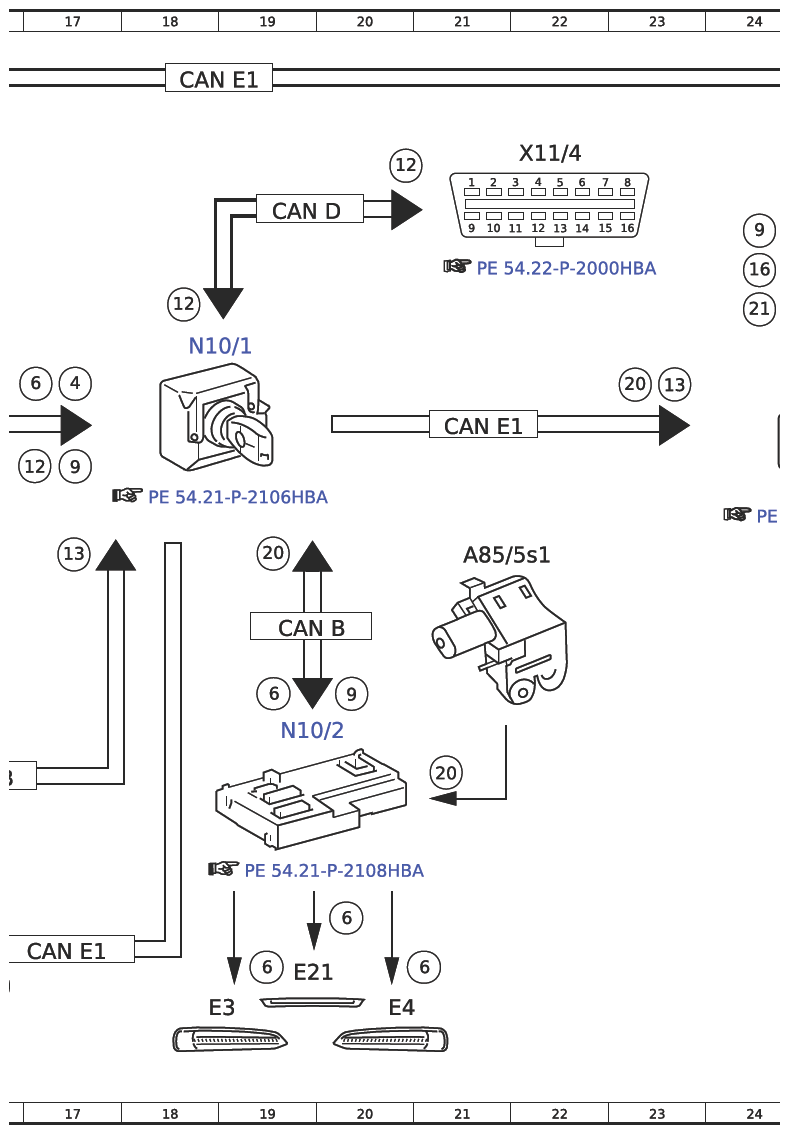

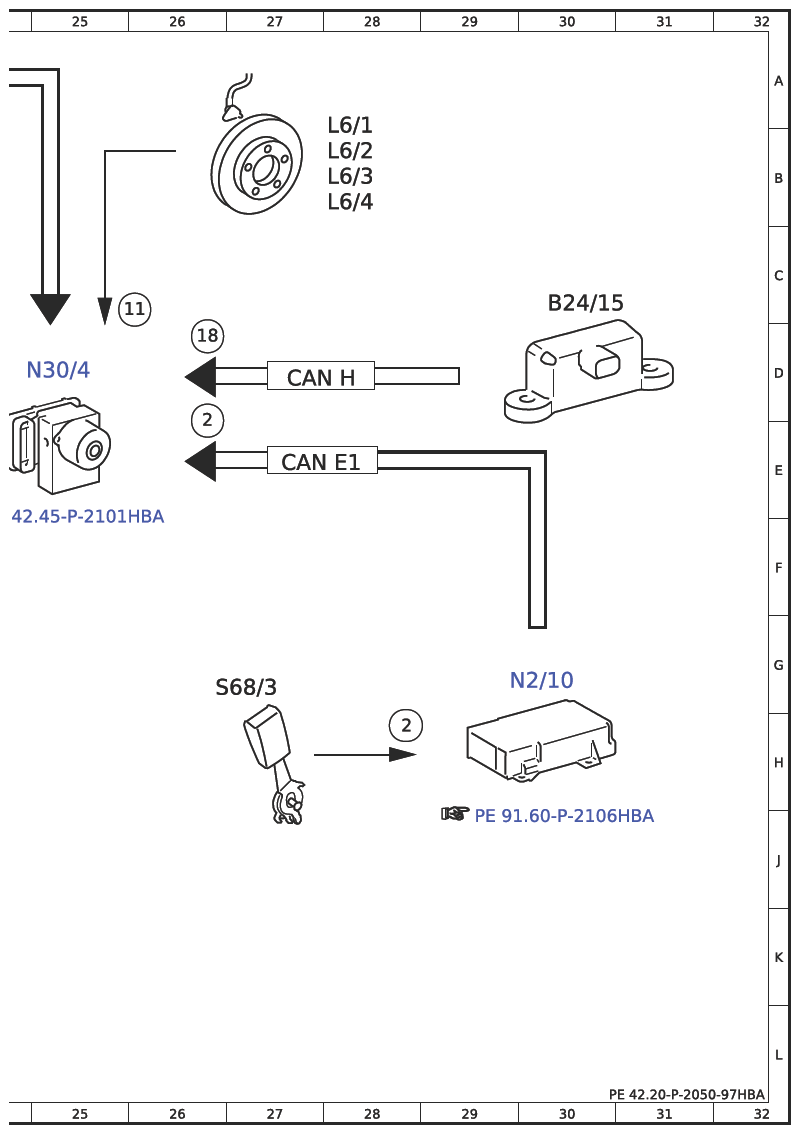

Electrical Function Schematic For Electric Parking Brake - PE42.20-P-2050-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ESP®, status | 13C |
| 10 | Electric parking brake switch, status | 11D |
| 11 | Wheel speed, signal | 13C |
| 11 | Wheel speed, signal | 26C |
| 12 | Diagnosis, communication | 14E |
| 12 | Diagnosis, communication | 17E |
| 12 | Diagnosis, communication | 18C |
| 12 | Diagnosis, communication | 22C |
| 13 | Rotary tumbler switch, status | 13H |
| 13 | Rotary tumbler switch, status | 14E |
| 13 | Rotary tumbler switch, status | 17F |
| 13 | Rotary tumbler switch, status | 23D |
| 14 | Actuator motors, actuation | 11F |
| 14 | Actuator motors, actuation | 14F |
| 15 | Parking brake warning lamp, actuation | 4J |
| 16 | Electric parking brake control unit, status | 9E |
| 16 | Electric parking brake control unit, status | 24C |
| 16 | Electric parking brake control unit, status | 4C |
| 17 | Parking brake indicator lamp, actuation | 3J |
| 18 | Turn rate, lateral and longitudinal acceleration sensor, signal | 13B |
| 18 | Turn rate, lateral and longitudinal acceleration sensor, signal | 26D |
| 19 | Engine running, signal | 11E |
| 19 | Engine running, signal | 6D |
| 2 | Seat belt buckle switch, status | 28H |
| 2 | Seat belt buckle switch, status | 26E |
| 20 | Liftgate latch main catch switch, status | 21H |
| 20 | Liftgate latch main catch switch, status | 19F |
| 20 | Liftgate latch main catch switch, status | 23D |
| 21 | Dynamometer mode, status | 24C |
| 22 | Gear range, status | 6F |
| 22 | Gear range, status | 10E |
| 23 | Circuit 15R, status | 12C |
| 4 | Instrument cluster, message | 16K |
| 4 | Instrument cluster, message | 17D |
| 4 | Instrument cluster, message | 9K |
| 5 | Accelerator pedal sensor, signal | 3B |
| 5 | Accelerator pedal sensor, signal | 11E |
| 5 | Accelerator pedal sensor, signal | 6D |
| 6 | Brake lights, actuation | 17D |
| 6 | Brake lights, actuation | 19K |
| 6 | Brake lights, actuation | 20K |
| 6 | Brake lights, actuation | 21K |
| 6 | Brake lights, actuation | 19G |
| 7 | Circuit 15R, status | 14D |
| 9 | Emergency stop, signal | 16K |
| 9 | Emergency stop, signal | 17E |
| 9 | Emergency stop, signal | 24C |
| 9 | Emergency stop, signal | 10K |
| 9 | Emergency stop, signal | 20G |
| A1 | Instrument cluster | 8J |
| A1e10 | Parking brake indicator lamp | 4H |
| A1e11 | Parking brake indicator lamp | 5H |
| A85/5s1 | Liftgate latch main catch switch | 21F |
| A85s1 | Left door lock rotary tumbler switch | 11G |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 30C |
| B37 | Accelerator pedal sensor | 1A |
| CAN B | Interior CAN | 16H |
| CAN B | Interior CAN | 19G |
| CAN C | Engine CAN | 5E |
| CAN C1 | Drive train CAN | 5E |
| CAN D | Diagnostic CAN | 19B |
| CAN E1 | Chassis CAN 1 | 15E |
| CAN E1 | Chassis CAN 1 | 21E |
| CAN E1 | Chassis CAN 1 | 18A |
| CAN E1 | Chassis CAN 1 | 27E |
| CAN E1 | Chassis CAN 1 | 10E |
| CAN E1 | Chassis CAN 1 | 17K |
| CAN E1 | Chassis CAN 1 | 12B |
| CAN H | Vehicle dynamics CAN | 27D |
| CAN HMI | User interface CAN | 11K |
| E21 | Center stop lamp | 19K |
| E3 | Left rear lamp unit | 18L |
| E4 | Right rear lamp unit | 20L |
| L6/1 | Left front axle RPM sensor | 28B |
| L6/2 | Right front axle RPM sensor | 28B |
| L6/3 | Left rear axle RPM sensor | 28B |
| L6/4 | Right rear axle RPM sensor | 28B |
| M76/1 | Left electric parking brake actuator motor | 10F |
| M76/2 | Right electric parking brake actuator motor | 15F |
| N10/1 | Front SAM control unit with fuse and relay module | 18D |
| N10/2 | Rear SAM control unit with fuse and relay module | 19H |
| N127 | Drivetrain control unit | 8D |
| N128 | Electric parking brake control unit | 12D |
| N15/13 | Double clutch transmission control unit | 4F |
| N2/10 | Supplemental restraint system control unit | 30G |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 25D |
| N69/1 | Left door control unit | 14G |
| N73 | Electronic ignition switch control unit | 10A |
| N93/9 | AMG gateway control unit | 14J |
| S68/3 | Driver seat belt buckle restraint system switch | 26G |
| S76/15 | Electric parking brake switch | 10C |
| X11/4 | Diagnostic connector | 22B |
