Assess Condition Of Brakepads For Track Check Inspection - AP42.10-P-4255GT

Model 190

Courtesy of MERCEDES-BENZ USA

Shown on model 221

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
Topical note	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Topical note	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Check

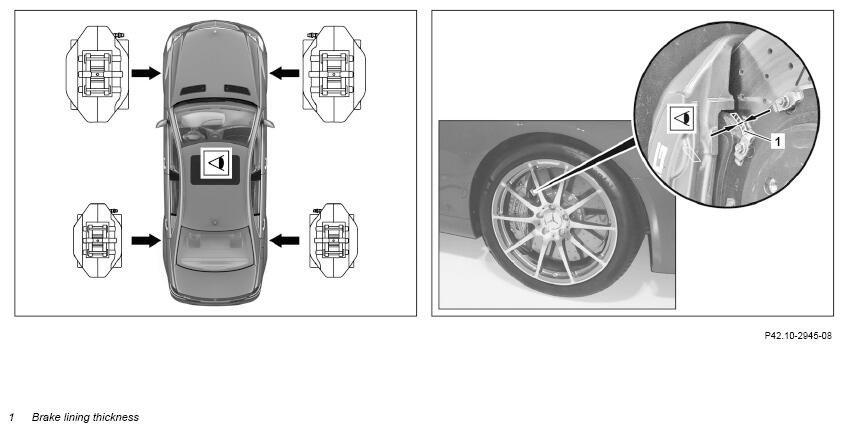

1	Assess brakepad thickness (1) of brakepads on front axle.	If the wear limit of the brakepads has been reached, replace the brakepads subject to a separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result.

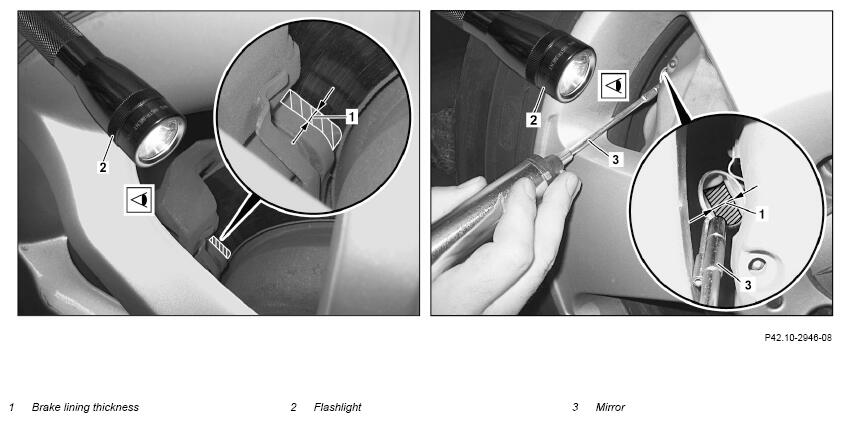

		If necessary, use flashlight (2) or mirror (3). To assess the brakepad thickness (1), take the thickness of the backing plate as a reference point and identify the brakepad with the smallest brakepad thickness (1) on each axle.
		For racetrack operations, the customer should be advised to change the brakepads prematurely at 9 mm (steel) or at 7 mm (ceramic) brakepad thickness (1).
		Brake pad	*BE42.10-P-1001-05ZA
		If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove front wheels and assess them.
		After obtaining special order.
2	Assess brakepad thickness (1) of brakepads on rear axle.	If the wear limit of the brakepads has been reached, replace the brakepads subject to a separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result.
		If necessary, use flashlight (2) or mirror (3). To assess the brakepad thickness (1), take the thickness of the backing plate as a reference point and identify the brakepad with the smallest brakepad thickness (1) on each axle.
		For racetrack operations, the customer should be advised to change the brakepads prematurely at 9 mm (steel) or at 7 mm (ceramic) brakepad thickness (1).
		Brake pad	*BE42.10-P-1001-15V
		If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove rear wheels and assess them.
		After obtaining special order.

CHECK VALUES FOR FRONT AXLE BRAKE LINING

Number	Designation			Model 190.377/378/379/380/477/478/480
BE42.10-P-1001-05ZA	Brake pad	Brake pad, new	mm	10
		Pad backing plate	mm	6
		Wear limit	mm	2
		Wear indicator activated (if installed)	mm	2...3

CHECK VALUES FOR REAR AXLE BRAKE LINING

Number	Designation			Model 190.377/378/379/380/477/478/480
BE42.10-P-1001-15V	Brake pad	Brake pad, new	mm	12
		Pad backing plate	mm	6
		Wear limit	mm	2
		Wear indicator activated (if installed)	mm	2...3
