Assess Condition Of Brake Linings - AP42.10-P-4252A

Model 190

MODIFICATION NOTES

11.12.2015	Brake pad		BE42.10-P-1001-05ZA
11.12.2015	Brake pad		BE42.10-P-1001-15V

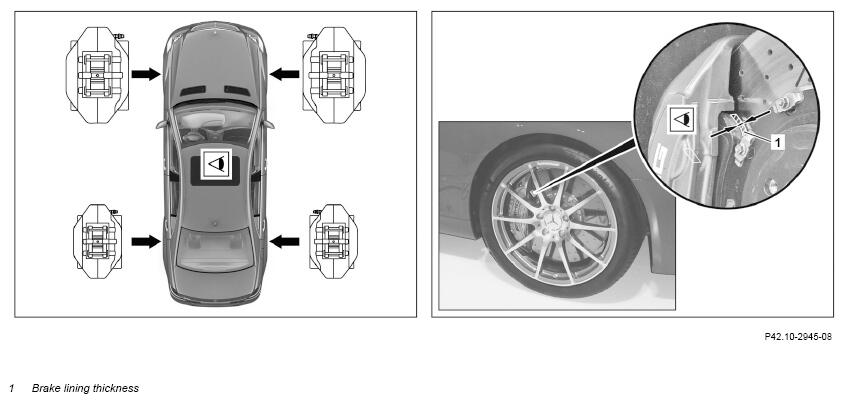

G16681765

Courtesy of MERCEDES-BENZ USA

Shown on model 221

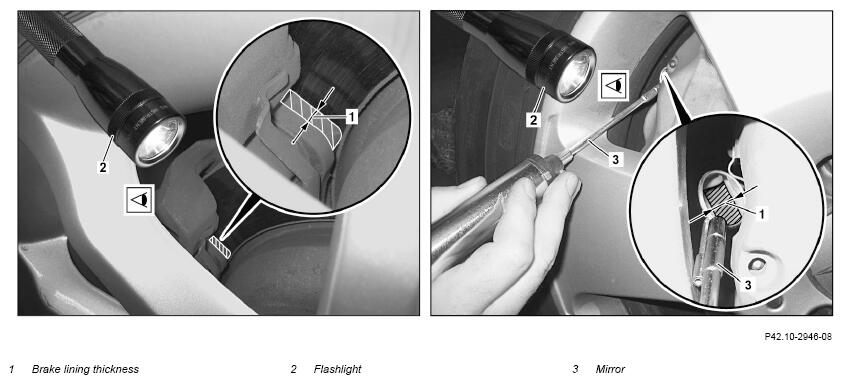

G16681766

Courtesy of MERCEDES-BENZ USA

	Risk of injury. Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
Topical note	Notes on repairs to brake system		AH42.00-P-0003-01A
Topical note	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Topical note	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Check
1	Assess brakepad thickness (1) of brakepads on front axle.	If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
		Brake pad	*BE42.10-P-1001-05ZA
		If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove front wheels and assess them.
		After obtaining special order.
2	Assess brakepad thickness (1) of brakepads on rear axle.	If necessary, use a flashlight (2) or a mirror (3). The thickness of the pad backing plate can be used as a reference when assessing the brake lining thickness (1).
		Brake pad	*BE42.10-P-1001-15V
		If, in exceptional cases, assessment through visual inspection is not possible. ↓ Remove rear wheels and assess them.
		After obtaining special order.
3	Determine expected remaining distance of brakepads.	If the wear limit for the brakepads has been reached, replace brakepads. After obtaining special order. Otherwise the braking effect may be impaired and people, property and environmental damage may result.	AP42.10-P-4253-03EW
		To determine the prospective remaining distance for each axle, refer to the brakepad with the least brakepad thickness (1). In order to avoid an unscheduled workshop visit between services, determine the remaining distance of the present brakepads. If the remaining distance determined is less than the next service interval, advise the customer to replaced the brakepads before the due service date.

CHECK VALUES FOR FRONT AXLE BRAKE LINING

Number	Designation			Model 190
BE42.10-P-1001-05ZA	Brake pad	Brake pad, new	mm	10
		Pad backing plate	mm	6
		Wear limit	mm	2
		Wear indicator activated (if installed)	mm	2...3

CHECK VALUES FOR REAR AXLE BRAKE LINING

Number	Designation			Model 190.377/378/379/380/477/478/479/480
BE42.10-P-1001-15V	Brake pad	Brake pad, new	mm	12
		Pad backing plate	mm	6
		Wear limit	mm	2
		Wear indicator activated (if installed)	mm	2...3
