Remove/Install Electric Parking Brake Switch - AR42.20-P-0505RG
Model 190
| Remove/install | |||
| 1 | Switch off ignition, remove transmitter key if necessary and lay transmitter key down outside of KEYLESS-GO transmission range | ||

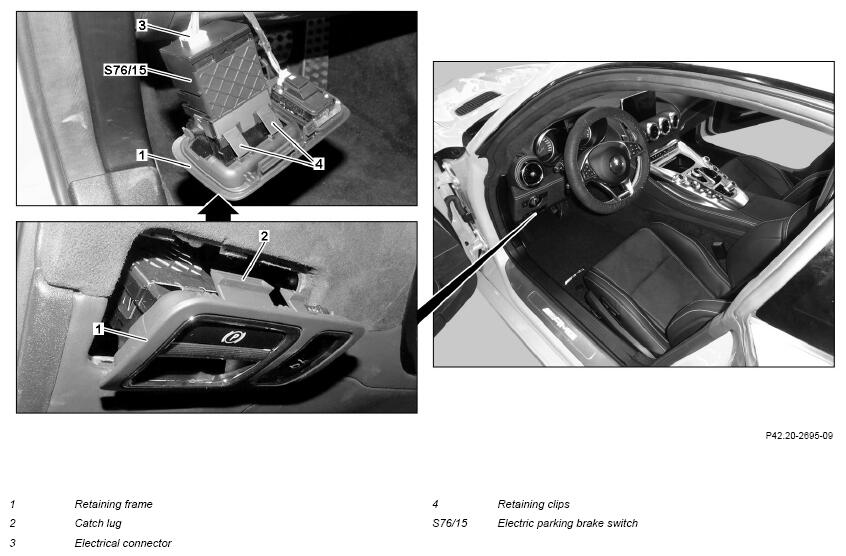

| 2 | Push catch tab (2) downwards using suitable tool and remove retaining frame (1) from instrument panel | ||
| 3 | Disconnect electrical connection (3) from parking brake electrical switch (S76/15) | ||
| 4 | Release retaining clamps (4) and remove electric parking brake switch (S76/15) forwards out of retaining frame (1) | ||
| 5 | Install in the reverse order |
