Detach/Mount Connector - AR42.45-P-0820-02RG

Model 190

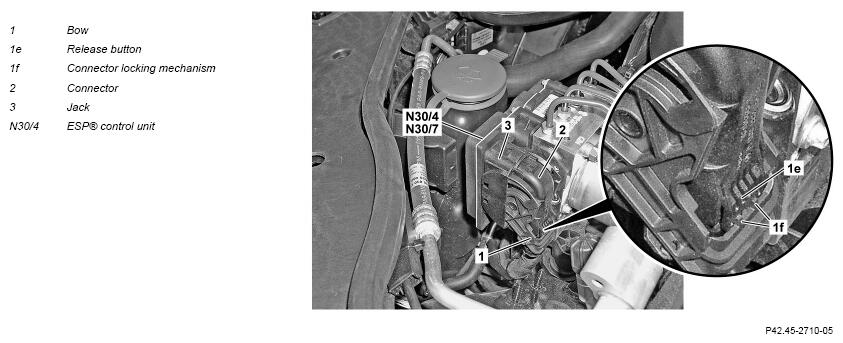

Fig 1: Identifying Unlocking Tool (000 589 20 63 00)

Courtesy of MERCEDES-BENZ USA

Shown on Model 212.003

Courtesy of MERCEDES-BENZ USA

Disconnect electrical connection.

If there is damage to the bracket (1), connector (2) or connector locking mechanism (1f), the corresponding parts MUST be replaced.

Otherwise, the connector (2) may work its way loose from the ESP® control unit (N30/4).

1. Carefully press release button (1e), hold it down and swivel bracket (1) upwards through approx. 90°.

   To unlock the connector (2), use removal tool. Otherwise, the release button (1e), connector locking mechanism (1f) or the bracket (1) may be damaged.

   By swiveling the bracket (1), the connector (2) is pushed slightly out of the jack (3) on the ESP control unit® (N30/4). Do not use a tool!

2. Pull connector (2) out of jack (3).

   Do not  handle the connector (2) by the bracket (1). Otherwise, the bracket (1) may be damaged!

3. Swivel bracket (1) downwards until connector locking mechanism (1f) engages.

   Connect electrical connector.

4. Swivel bracket (1) upwards approx. 90°.
5. Insert connector (2) far enough into jack (3) on ESP control unit® (N30/4) until connector fits flush along its entire length with base of jack (3).

   Do not  handle the connector (2) by the bracket (1). Otherwise, the bracket (1) may be damaged!

6. Swivel bracket (1) downwards until connector locking mechanism (1f) engages.

   The connector (2) is hereby drawn into its end position and locked.
