Check Brake Disks For Wear - AR42.10-P-0264-01RGB

Model 190.381

with code B07 (AMG - ceramic brake system)

	Risk of injury  to skin and eyes from laser beams	Never look directly into the laser beam. Do not attempt to suppress natural reflex of closing the eyelids.	AS30.30-Z-0001-01A
		Avoid direct skin contact with the laser beam. If damage to the eye is suspected, consult an eye specialist immediately.

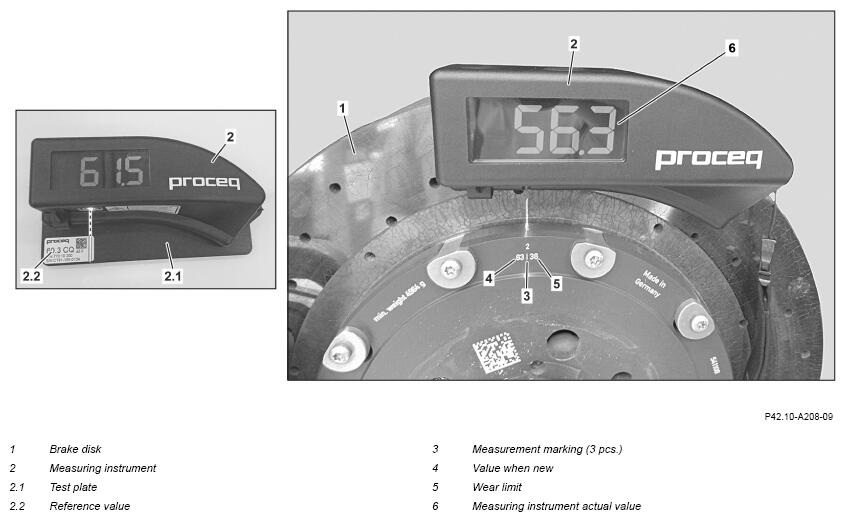

Rear axle

Courtesy of MERCEDES-BENZ USA

Only use the electronic measuring method at the rear axle.

Before starting the measurement, check calibration of measuring equipment (2) using supplied test plate (2.1). Make sure that no external electromagnetic fields are present in the area of use of the measuring equipment (2). Use measuring equipment (2) within the specified operating temperature range only.

1. Switch on measuring equipment (2) and place into both positioning openings of test plate (2.1).

   The displayed measurement value must match the reference value (2.2) on the adhesive label attached to the test plate (2.1). A deviation of ± 2.0 units CQ (Carboteq value) is permissible. If the deviation exceeds ± 2.0 units of CQ (Carboteq value), perform a reset procedure on the measuring equipment (2) in accordance with the operating instructions. If the reset procedure of the measuring equipment (2) fails, calibrate the measuring equipment. For proper calibration, send the measuring equipment (2) to a service center that is certified by the manufacturer.

2. Position measuring equipment (2) absolutely flush with the outer edge of the brake disk (1).
3. Move the measuring equipment (2) along the curved radius of the brake disk (1) until the laser beam is aligned with the measurement marking (3) engraved on the brake disk (1). The brake disk (1) must be dry during the measurement. Otherwise, there may be deviations in the measurement result. The displayed value must be between the new value (4) and the wear limit (5) attached to the brake disk (1). If the wear limit (5) is undershot, replace the brake disk (1).

   If only one brake disk (1) is replaced on the rear axle because of damage, a wear value of 33 percent of the difference between the new value (4) and the lower wear limit (5) applies to the second brake disk (1) on this axle.

   It is not necessary to remove the brake caliper. Only measure the outside of the brake disk (1). The outside is subjected to a higher thermal load and therefore, with regard to the Carboteq limit value, is always more critical than the side facing the vehicle.

   The measuring equipment (2) contains a class 2 laser. It is essential to observe the safety information in the manufacturer's operating instructions.

   Example calculation

   Courtesy of MERCEDES-BENZ USA

4. Freeze the display of the measuring equipment (2) in order to be able to read off the measurement value even after the measurement.
5. Turn brake disk (1) and perform a wear measurement at the remaining engraved measurement markings (3) as described in operation steps 3 and 4.

   The measurement does not replace visually inspecting the brake disk (1) for damage.
