(Remove/Install Rear Brake Cable At Wheel Carrier - AR42.20-P-0525-03RQ)
Model 197
MODIFICATION NOTES
| 11.5.10 | Value changed: Bolt, brake cable to wheel carrier | BA35.20-P-1006-07D |
WHEEL CONTROL
| Number | Designation | MODEL 197 | |
|---|---|---|---|
| BA35.20-P-1006-07D | Bolt, brake cable to wheel carrier | Nm | 8 |

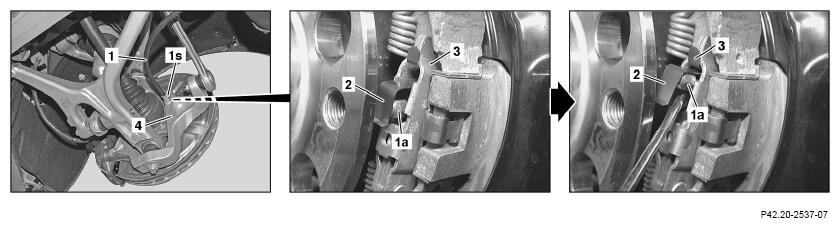

Detach
- Remove bolt (1s).
- Press toggle (1a) of brake cable (1) upwards against the spring (2) in the expansion lock (3) using a screwdriver.
- Pull brake cable (1) out of wheel carrier (4).
Attach
- Insert brake cable (1) into the wheel carrier (4) until the toggle (1a) latches into the expansion lock (3).
- Screw in bolt (1s).
Replace screw/bolt.
