Notes On Installing Brake Wear Indicator Contact Sensors - AH42.10-P-0003-01RG
Model 190

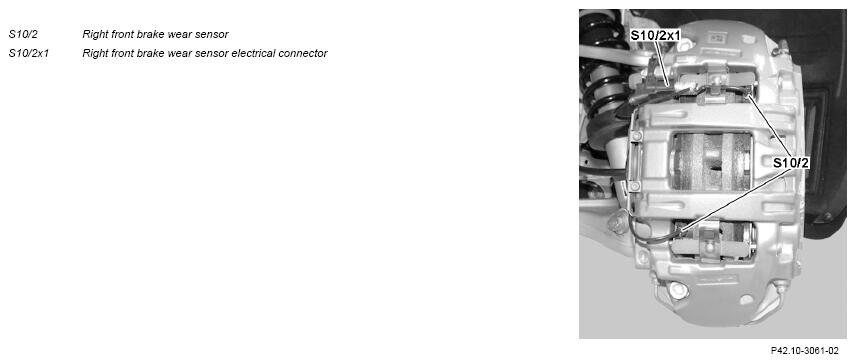

Front axle:
Two brake wear sensors are installed on the right-side of the vehicle.

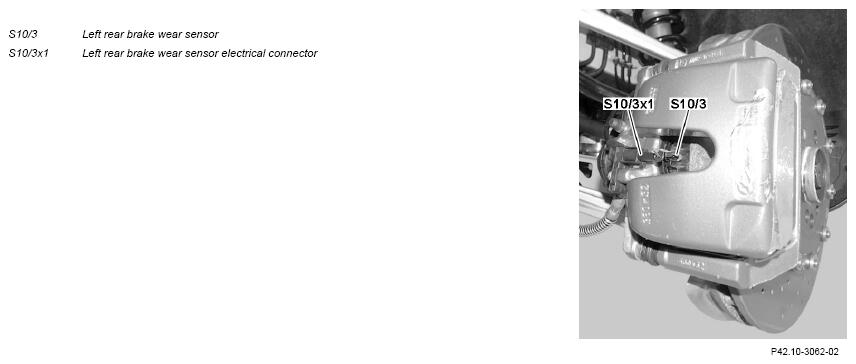

Rear axle
One brake wear sensor is installed on the left side of the vehicle.
Front axle
Rear axle
For reasons of replacement part simplification, the brake pads must be installed so that the brake wear sensors can be installed in the corresponding installation position.
The corresponding installation position for the brake wear sensors is as follows:
- Front-axle version 5 and 6
- Rear-axle version 8
