Prepare Body Flange For Installation Of Window - AR67.10-P-1501-01RG
Model 190
| Topical note | General notes about painting the body flange in the glazing area | AH98.00-P-9408-06A |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1012-07A | Primer stick | A 000 986 27 50 |
| BR00.45-Z-1135-02A | Repair kit for installing windshields, 1-component adhesive | A 221 670 81 01 |
Observe manufacturer's information for curing and processing times of 2-component primer/filler.

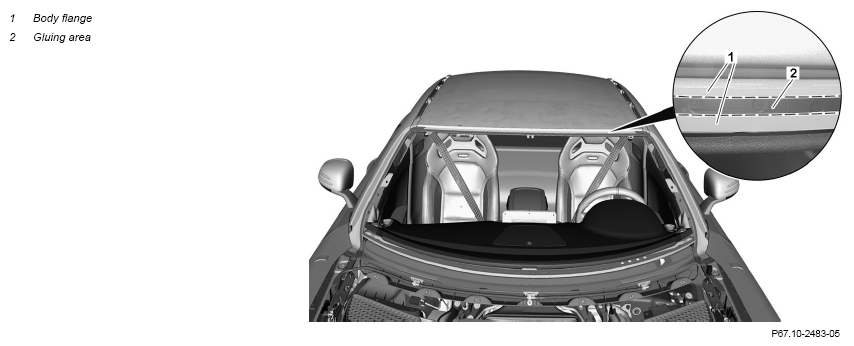

The bonding area (2) on the body flange (1) must be free of dust and grease.
Otherwise the adhesive force of the adhesive material starts to decrease when installing window.
Only apply 2-component primer/filler in entire adhesive area (2) of body flange (1) when repairing damage.
Otherwise the adhesive force of the adhesive material starts to decrease when installing window.
If the damage is < 10%, repair is possible with a primer stick, if the damage is >10 % coat body flange (1) with 2-component primer filler.
- Cut off residual adhesive material on body flange (1) down to a height of approx. 2 mm using suitable scraper.
- Remove loose adhesive material and clean working area with wet/dry vacuum cleaner.
- Clean adhesive surface on body flange (1) with cleaner from repair kit and rub dry with rag.
- Repair paint damage in bonding area (2) and on body flange (1) with primer stick or 2-component primer filler.
- Apply primer from - component repair kit in areas where residual adhesive material on body flange (1) is missing or damaged.
Allow primer to flash off for at least 10 minutes.
- Install windshield rubber spacers.
