Align Windshield In Body Opening - AR67.10-P-1000-04RQ

Model 190, 197

Illustrated on model 197

1. Install windshield (1) on spacers (2) on body flange (3) with aid of helper.

   The guide pin on the windshield (1) should reach into the receptacle on the body flange.

2. Center windshield (1) and parallel to body opening.

   Courtesy of MERCEDES-BENZ USA

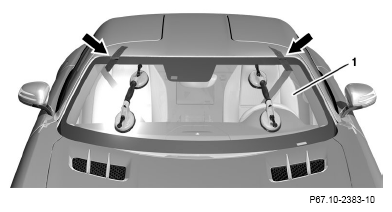

3. Glue in suitable adhesive tapes (arrows) and cut transmission of windshield rubber spacers (1) to body flange.
4. Remove windshield (1) from body flange with aid of helper.
