Remove/Install Center Beltline Trim - AR68.30-P-0600RGR

Model 190.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Completely open soft top

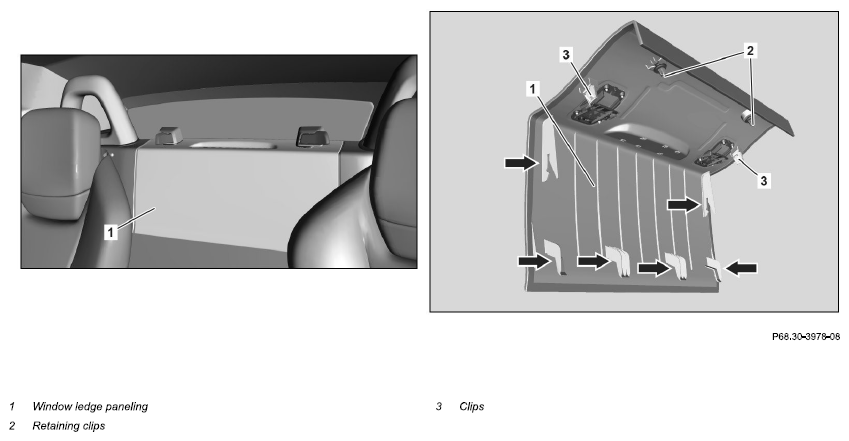

2	Unclip window ledge paneling (1) from retaining clips (2)
3	Unclip window ledge paneling (1) from clips (3)	Proceed carefully. Otherwise the adjacent paneling can be damaged. Mounting wedge	Fig 1
4	Remove window ledge paneling (1) until electrical connector is accessible and is unlocked and disconnected	Model 190.4 with code 220 (PARKTRONIC) Ensure that the guides (arrows) are seated correctly. Otherwise the window ledge paneling (1) can be damaged.
5	Remove window ledge paneling (1)	Ensure that the guides (arrows) are seated correctly. Otherwise the window ledge paneling (1) can be damaged.
6	Install in the reverse order

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
