Electrical Function Schematic, Standing Light/Parking Lights Actuation - PE82.10-P-2054-97HBA
Model 190
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 10G |
| 10 | Instrument cluster message, request | 15A |
| 10 | Instrument cluster message, request | 12D |
| 11 | Side-marker lamp, actuation | 1C |
| 11 | Side-marker lamp, actuation | 8C |
| 2 | Standing and parking lights, request | 7E |
| 2 | Standing and parking lights, request | 2E |
| 2 | Standing and parking lights, request | 15E |
| 3 | Standing and parking lights, actuation | 18D |
| 3 | Standing and parking lights, actuation | 23D |
| 3 | Standing and parking lights, actuation | 7D |
| 3 | Standing and parking lights, actuation | 2D |
| 4 | License plate lamp, actuation | 20E |
| 5 | Standing lights indicator lamp, request | 15B |
| 5 | Standing lights indicator lamp, request | 12C |
| 6 | Door rotary tumbler switch, status | 12G |
| 7 | Circuit 15, status | 9G |
| 8 | Warning tone, request | 15B |
| 8 | Warning tone, request | 12C |
| 9 | Speaker, actuation | 13C |
| A1 | Instrument cluster | 14C |
| A1e38 | Standing lamps indicator lamp | 12D |
| A1p13 | Multifunction display | 14B |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 11H |
| CAN B | Interior CAN | 14E |
| CAN B | Interior CAN | 8G |
| CAN E2 | Chassis CAN 2 | 8F |
| CAN E2 | Chassis CAN 2 | 4F |
| CAN HMI | User interface CAN | 13A |

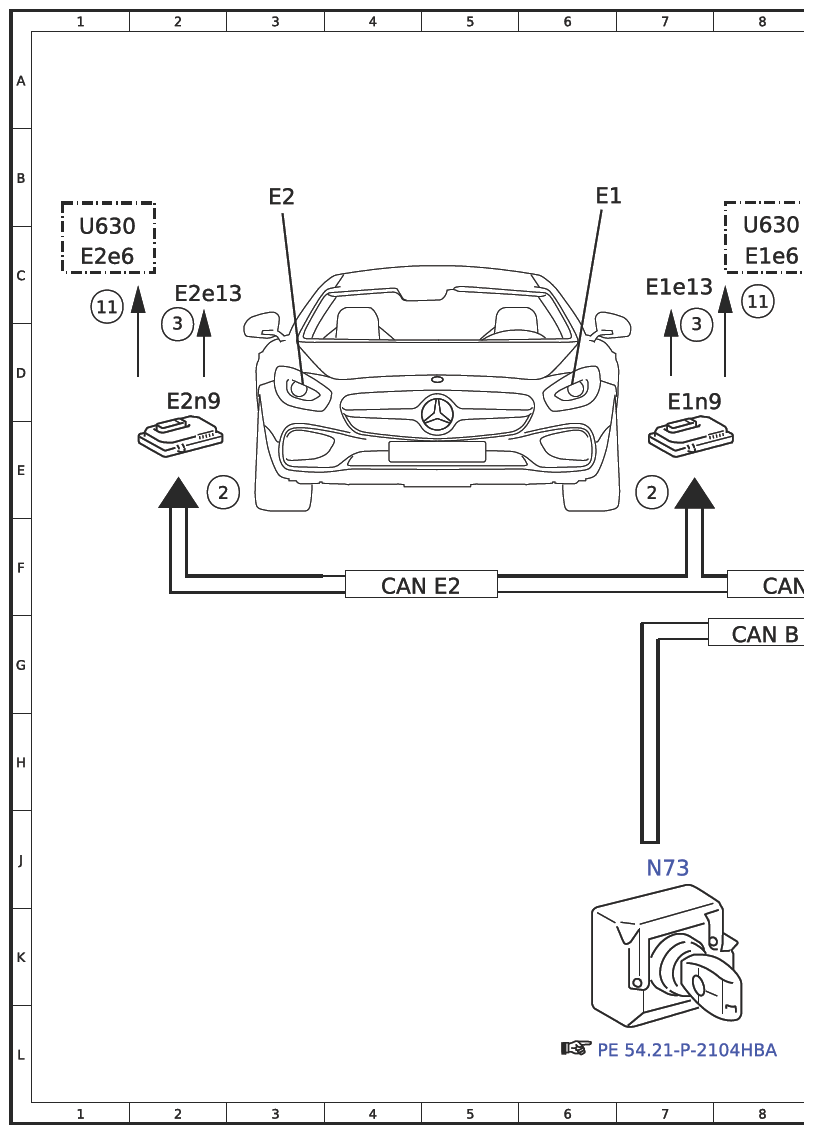

| E1 | Left front lamp unit | 6B |
| E19/1 | Left license plate lamp | 19E |
| E19/2 | Right license plate lamp | 21E |
| E1e13 | Left parking light and daytime running light | 7C |
| E1e6 | Left front side-marker lamp | 8C |
| E1n9 | Left headlamp control unit | 7D |
| E2 | Right front lamp unit | 3B |
| E2e13 | Right parking light and daytime running light | 2C |
| E2e6 | Right front side-marker lamp | 1C |
| E2n9 | Right headlamp control unit | 2D |

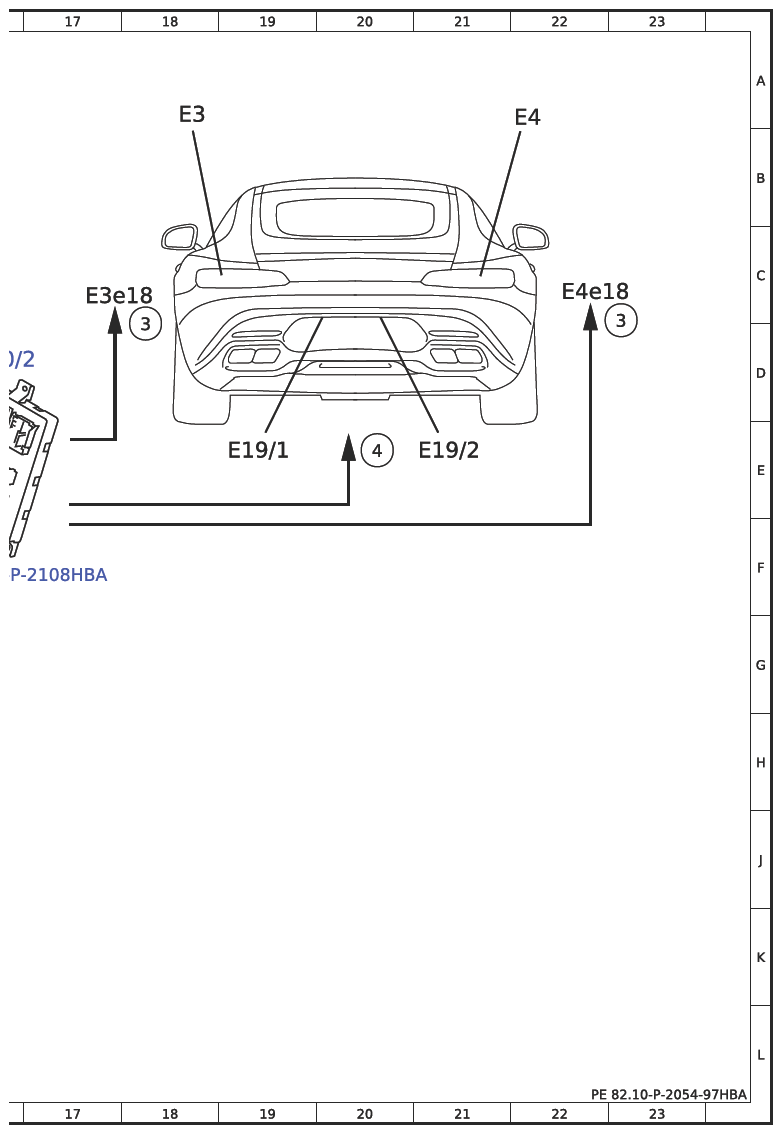

| E3 | Left rear lamp unit | 18A |
| E3e18 | Left tail lamp | 17C |
| E4 | Right rear lamp unit | 22A |
| E4e18 | Right tail lamp | 22C |
| H4/61 | Instrument cluster speaker | 13B |

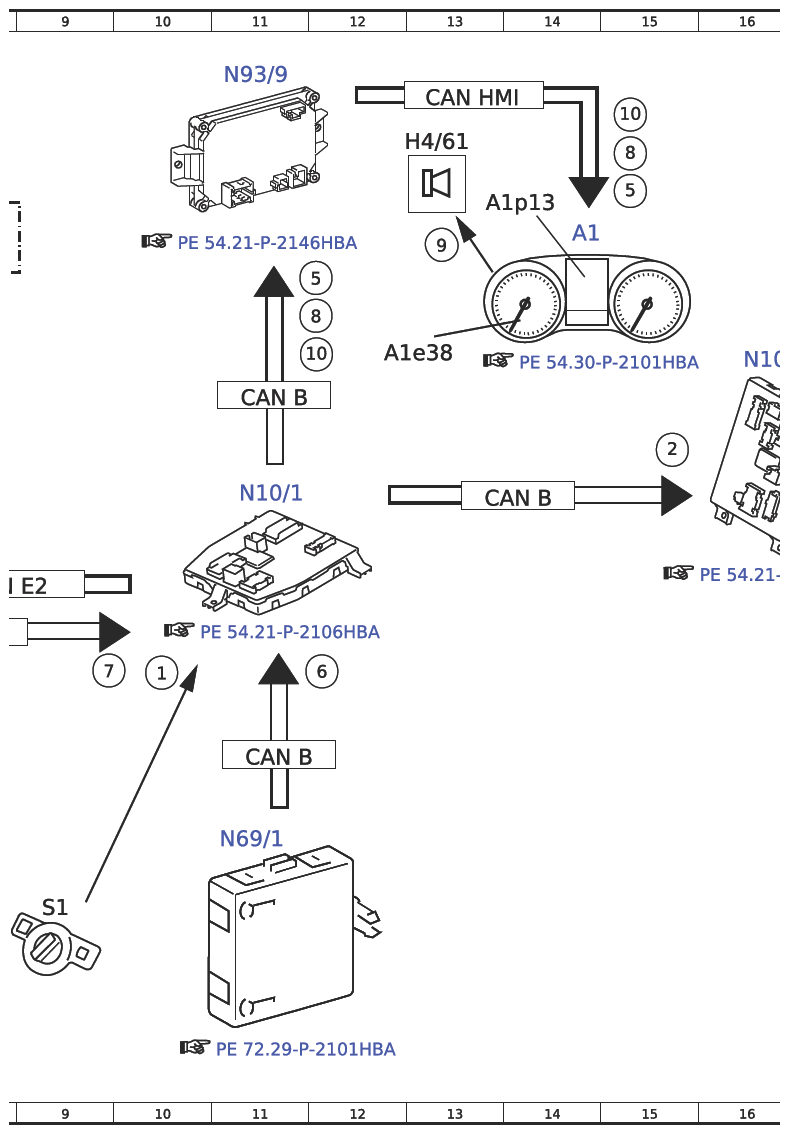

| N10/1 | Front SAM control unit with fuse and relay module | 11E |
| N10/2 | Rear SAM control unit with fuse and relay module | 16D |
| N69/1 | Left door control unit | 11J |
| N73 | Electronic ignition switch control unit | 7J |
| N93/9 | AMG gateway control unit | 11A |
| S1 | Exterior lights switch | 9K |
| U630 | Valid for USA and Canada | 1C |
| U630 | Valid for USA and Canada | 8C |
