Electrical Function Schematic For Cruise Control (CC) - PE30.30-P-2051-97HBD

Model 190 as of 12/1/18 as of Model year 2019 with code 239 (Active Distance Assist DISTRONIC)

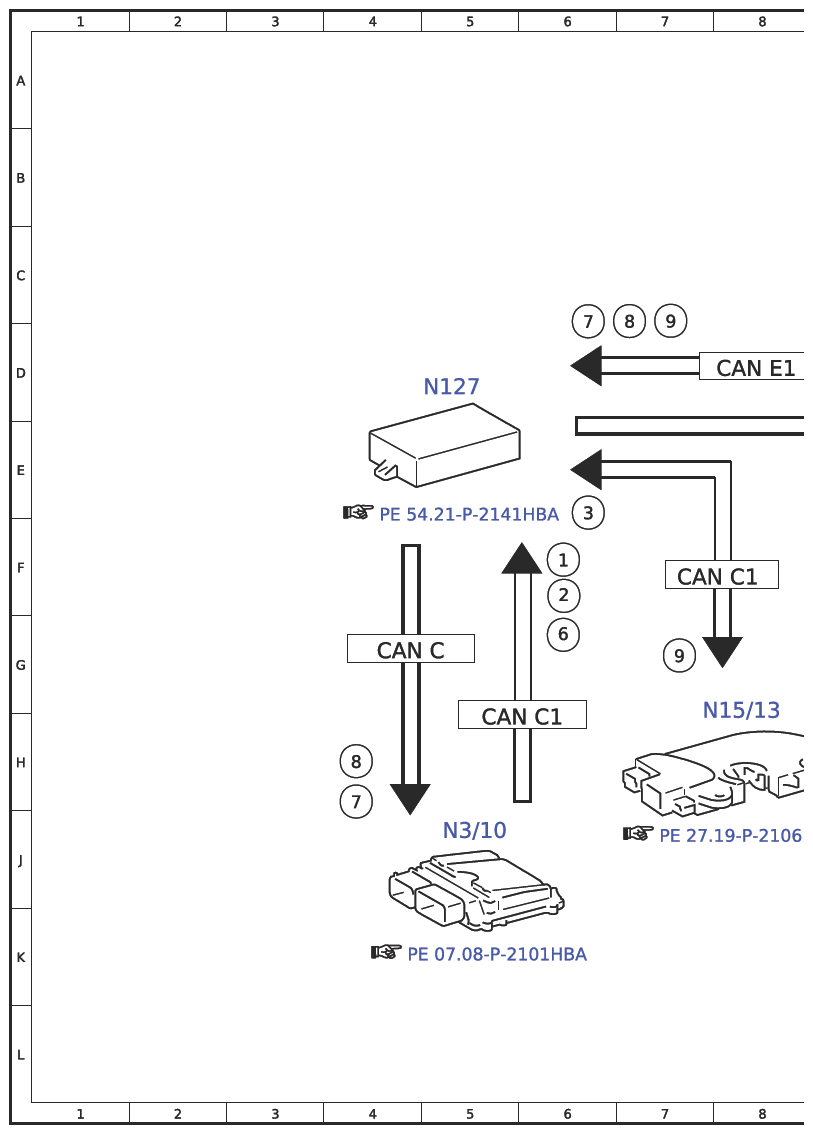

G16677610Courtesy of MERCEDES-BENZ USA

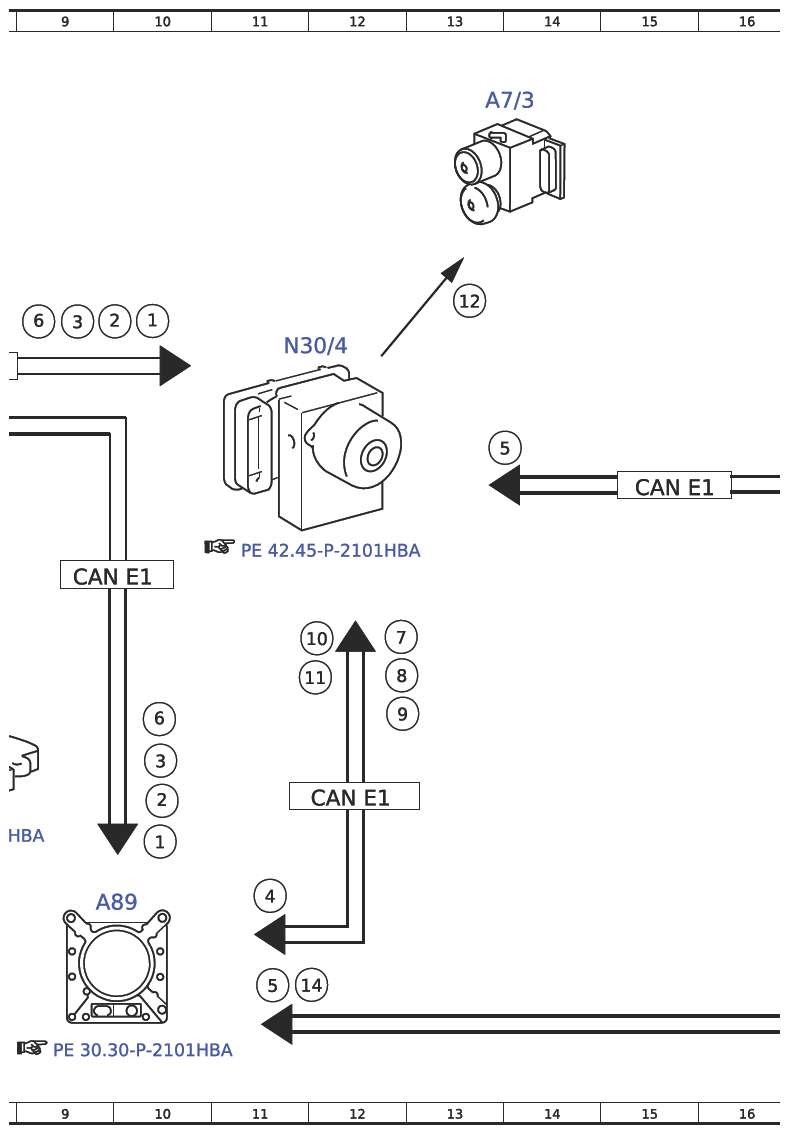

G16677611Courtesy of MERCEDES-BENZ USA

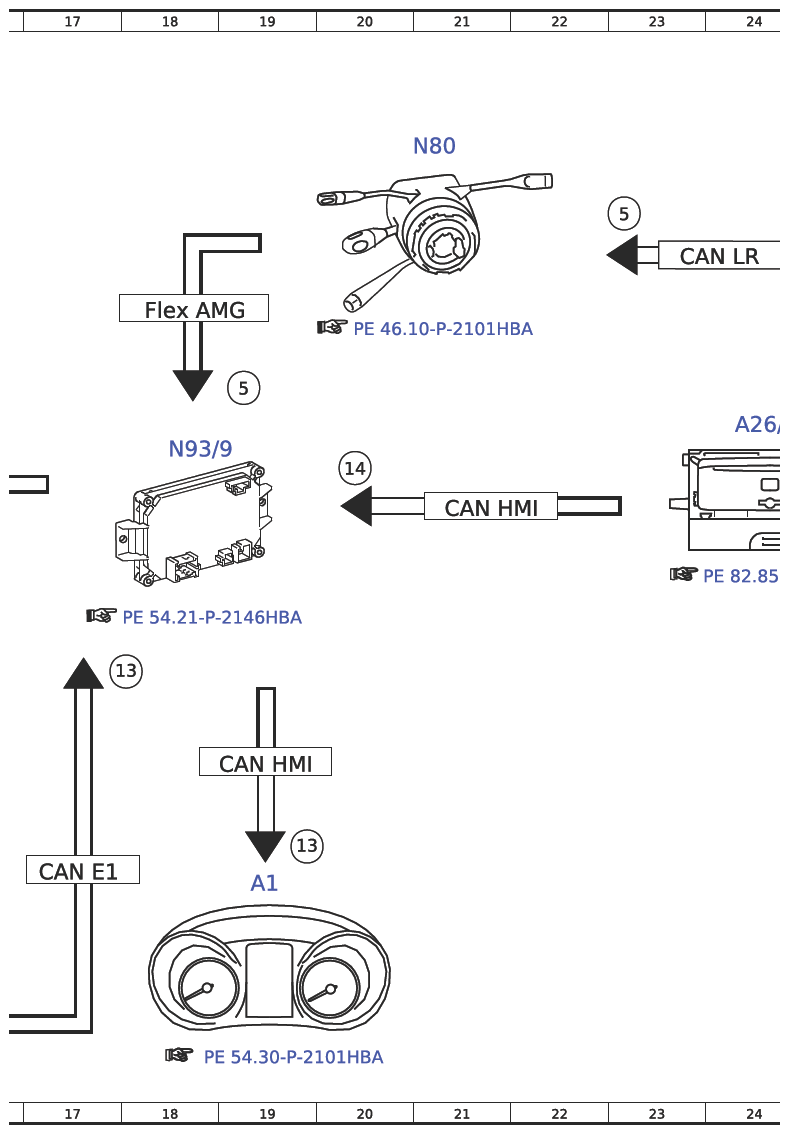

G16677612Courtesy of MERCEDES-BENZ USA

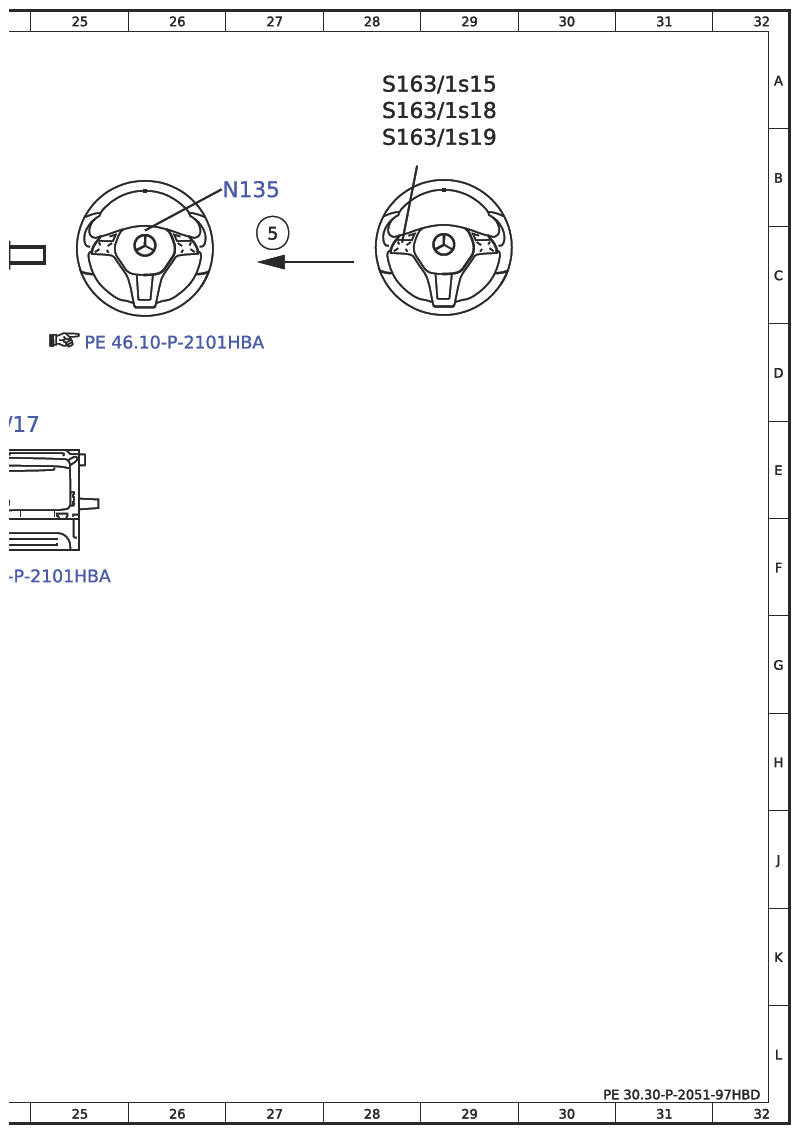

G16677613Courtesy of MERCEDES-BENZ USA
