DISTRONIC PLUS Electrical Function Schematic - PE30.30-P-2053-97HBA

Model 190 up to 11/30/18 up to Model year 2019 with code 239 (Active Distance Assist DISTRONIC)

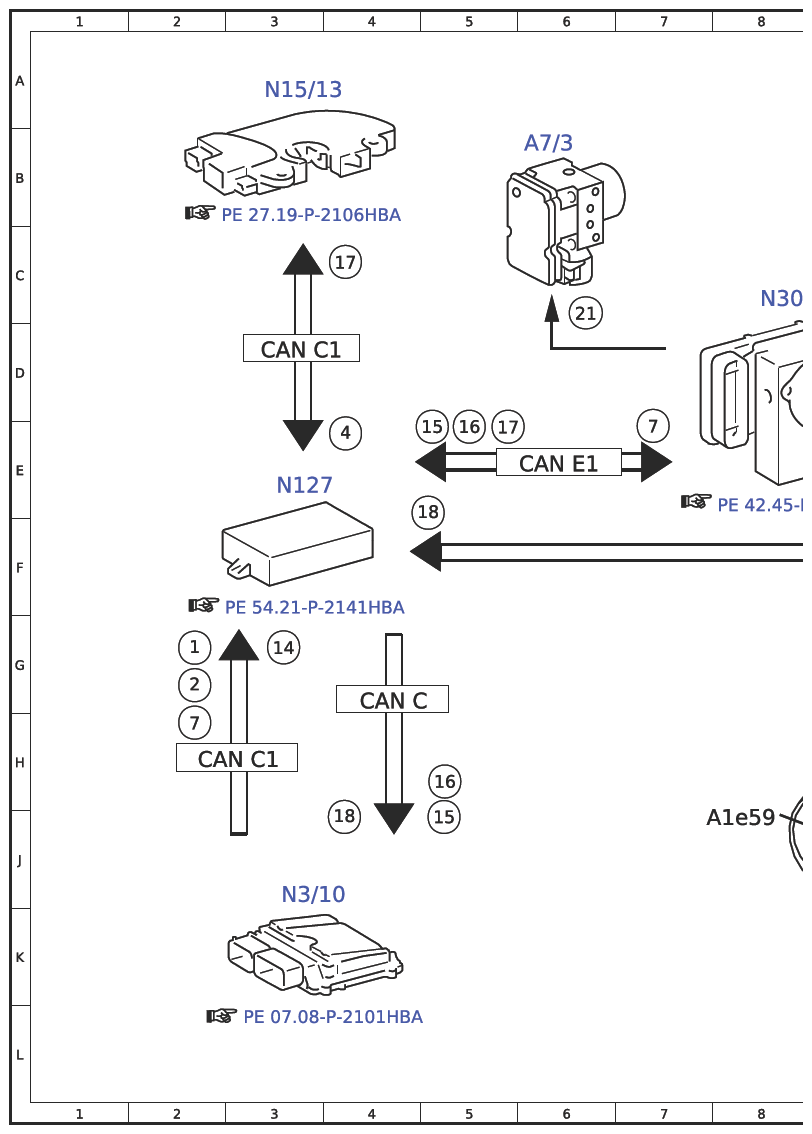

G16677614Courtesy of MERCEDES-BENZ USA

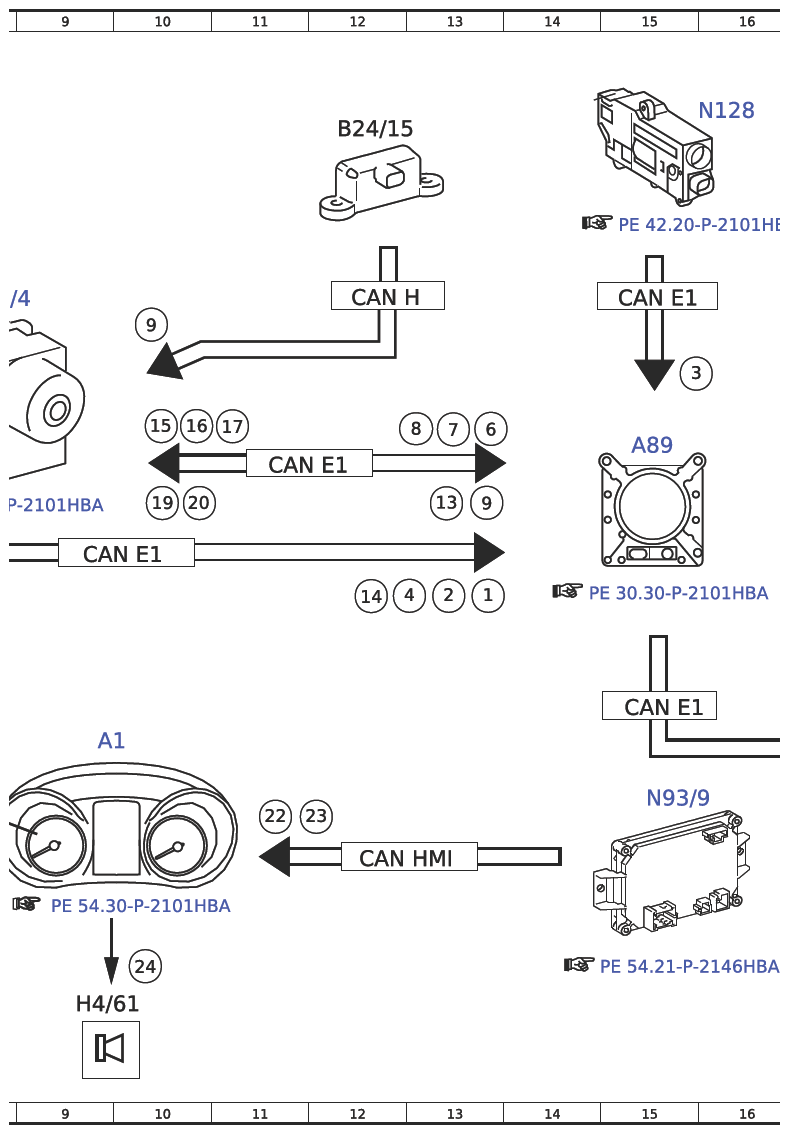

G16677615Courtesy of MERCEDES-BENZ USA

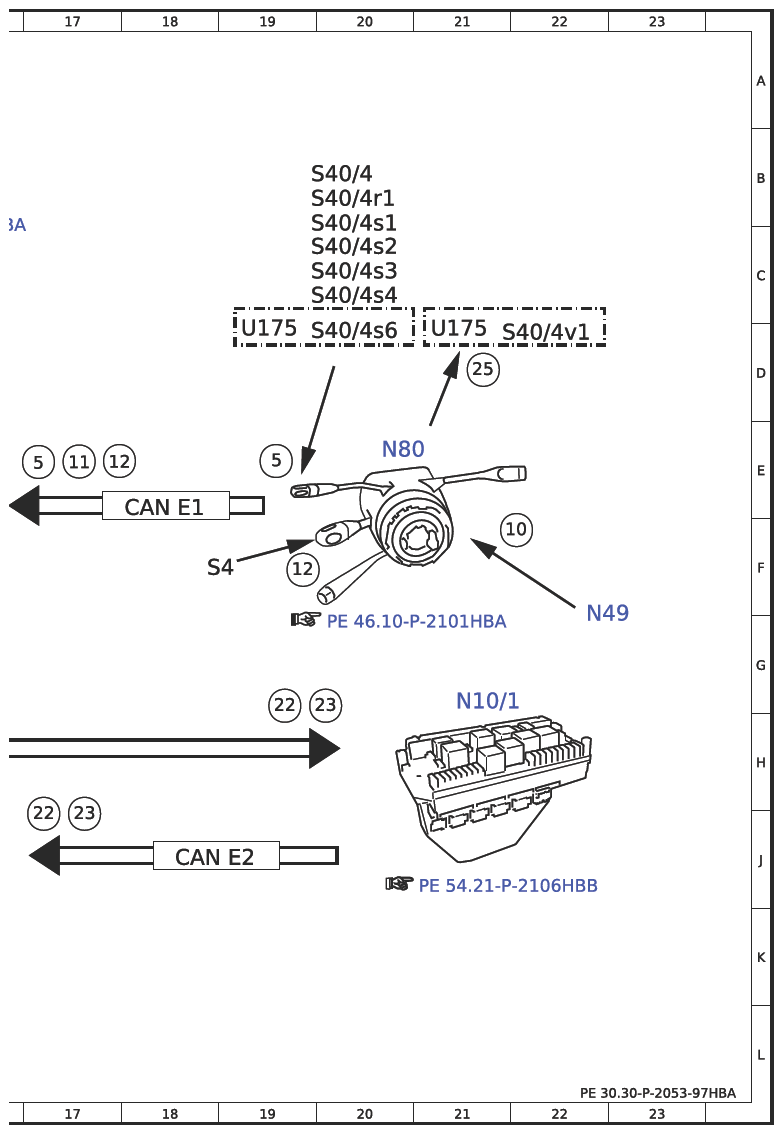

G16677616Courtesy of MERCEDES-BENZ USA
