Adjust Vehicle Level By Changing The Spacer Rings - AR40.20-P-0301-02GQ
Model 164, 166, 251, 292 except code 489 (AIRMATIC Dual Control/semi-active air suspension)
MODIFICATION NOTES
| 05.07.2013 | Vehicle level front axle | BE40.20-P-1001-02N | |
| 05.07.2013 | Permissible difference in vehicle level between the right and left side of the vehicle | BE40.20-P-1002-02N | |
| 05.07.2013 | Vehicle level rear axle | BE40.20-P-1001-03N | |
| 05.07.2013 | Permissible difference in vehicle level on the rear axle between the right and left side of the vehicle | BE40.20-P-1002-03N |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 494, except CODE 489 | MODEL 164.122/124/125/12 8/175/177/182/186 except CODE 489/494 | |
|---|---|---|---|---|
| BE40.20-P-1001-02M | Front axle vehicle level | ∠° | +9, 0 | +9, 7 |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.120/121/156 except CODE 489 | Model 164.120/121/122/12 4/125/128/156/175/1 77/182/186 with CODE 489, MODEL 164.172/195/8 | |
|---|---|---|---|---|
| BE40.20-P-1001-02M | Front axle vehicle level | ∠° | +7, 1 | +5, 1 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 ECE+USA with front+rear steel suspension, except code 847 | Model 251 ECE+USA with front+rear steel suspension, with code 847 | |
|---|---|---|---|---|
| BE40.20-P-1001-02N | Vehicle level - front axle | ∠° | +2, 97° (±1, 3°) | +3, 35° (±1, 3°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 ECE with front steel suspension and rear air suspension | Model 251 USA with front steel suspension and rear air suspension | |
|---|---|---|---|---|
| BE40.20-P-1001-02N | Vehicle level - front axle | ∠° | +3, 98° (±1, 3°) | +5, 37° (±1, 3°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 AMG | |
|---|---|---|---|
| BE40.20-P-1001-02N | Vehicle level - front axle | ∠° | +0, 69° (±1, 3°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166.0 except code 489/491/Z04/Z05 | Model 166.0 with code 489, model 166.8 | |
|---|---|---|---|---|
| BE40.20-P-1001-02T | Vehicle level at front axle | ∠° | 9, 07 (±1, 2) | 5, 26 (±1, 2) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166.0 with code 491 | Model 166.0 with code Z04/Z05 | |
|---|---|---|---|---|
| BE40.20-P-1001-02T | Vehicle level at front axle | ∠° | 7, 97 (±1, 2) | 5, 26 (±1, 2) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166 AMG | Model 292 except code 489 | |
|---|---|---|---|---|
| BE40.20-P-1001-02T | Vehicle level at front axle | ∠° | 5, 26 (±1, 2) | 6, 49 (±1, 2) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 292 AMG | |
|---|---|---|---|
| BE40.20-P-1001-02T | Vehicle level at front axle | ∠° | 5, 26 (±1, 2) |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 494, except CODE 430, except CODE 489 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 430, with CODE 494, except CODE 489 | |
|---|---|---|---|---|
| BE40.20-P-1001-03M | Vehicle level - rear axle | ∠° | +1, 8 | +2, 4 |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 430, with CODE 489, MODEL 164.172/195 with CODE 430, MODEL 164.8 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 489, except CODE 430, MODEL 164.172/195 except CODE 430 | |
|---|---|---|---|---|
| BE40.20-P-1001-03M | Vehicle level - rear axle | ∠° | -1, 1 | -1, 5 |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.120/121/156 except CODE 430, except CODE 489 | MODEL 164.120/121/156 with CODE 430, except CODE 489 | |
|---|---|---|---|---|
| BE40.20-P-1001-03M | Vehicle level - rear axle | ∠° | +0, 6 | +1, 0 |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 except CODE 430, except CODE 489, except CODE 494 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 430, except CODE 489, except CODE 494 | |
|---|---|---|---|---|
| BE40.20-P-1001-03M | Vehicle level - rear axle | ∠° | +2, 4 | +3, 0 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 ECE+USA with front+rear steel suspension, except code 847 | Model 251 ECE+USA with front+rear steel suspension, with code 847 | |
|---|---|---|---|---|
| BE40.20-P-1001-03N | Vehicle level - rear axle | ∠° | -1, 94° (±0, 9°) | -1, 94° (±0, 9°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 ECE with front steel suspension and rear air suspension | Model 251 USA with front steel suspension and rear air suspension | |
|---|---|---|---|---|
| BE40.20-P-1001-03N | Vehicle level - rear axle | ∠° | -3, 81° (±0, 9°) | -3, 81° (±0, 9°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 AMG | |
|---|---|---|---|
| BE40.20-P-1001-03N | Vehicle level - rear axle | ∠° | -4, 47° (±0, 9°) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166.0 except code 489/491/Z04/Z05 | Model 166.0 with code 489, model 166.8 | |
|---|---|---|---|---|
| BE40.20-P-1001-03U | Vehicle level at rear axle | ∠° | 3, 36 (±1, 1) | -0, 77 (±1, 1) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166.0 with code 491 | Model 166.0 with code Z04/Z05 | |
|---|---|---|---|---|
| BE40.20-P-1001-03U | Vehicle level at rear axle | ∠° | 2, 39 (±1, 1) | -0, 77 (±1, 1) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166 AMG | Model 292 except code 489 | |
|---|---|---|---|---|
| BE40.20-P-1001-03U | Vehicle level at rear axle | ∠° | -0, 77 (±1, 1) | -0, 64 (±1, 1) |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 292 AMG | |
|---|---|---|---|
| BE40.20-P-1001-03U | Vehicle level at rear axle | ∠° | -0, 77 (±1, 1) |
FRONT AXLE ALIGNMENT
| Number | Designation | Model 164 | Model 166 | |||
|---|---|---|---|---|---|---|
| BE40.20-P-1001-11C | Vehicle level adaptation | Shim 1 | Thickness | mm | 1, 50 | 1, 50 |
| Adaptation (height) | mm | 2, 46 | 2, 54 | |||
| Adaptation (Romess) | ∠° | 0, 31 | 0, 31 | |||
| Shim 2 | Thickness | mm | 2, 00 | 2, 00 | ||
| Adaptation (height) | mm | 3, 28 | 3, 38 | |||
| Adaptation (Romess) | ∠° | 0, 41 | 0, 42 | |||
| Shim 3 | Thickness | mm | 5, 00 | 5, 00 | ||
| Adaptation (height) | mm | 8, 20 | 8, 45 | |||
| Adaptation (Romess) | ∠° | 1, 03 | 1, 03 | |||
| Shim 4 | Thickness | mm | 10, 00 | 10, 00 | ||
| Adaptation (height) | mm | 16, 40 | 16, 90 | |||
| Adaptation (Romess) | ∠° | 2, 06 | 2, 06 |
FRONT AXLE ALIGNMENT
| Number | Designation | Model 251 | Model 292 | |||
|---|---|---|---|---|---|---|
| BE40.20-P-1001-11C | Vehicle level adaptation | Shim 1 | Thickness | mm | 1, 50 | 1, 50 |
| Adaptation (height) | mm | 2, 46 | 2, 54 | |||
| Adaptation (Romess) | ∠° | 0, 31 | 0, 31 | |||
| Shim 2 | Thickness | mm | 2, 00 | 2, 00 | ||
| Adaptation (height) | mm | 3, 28 | 3, 38 | |||
| Adaptation (Romess) | ∠° | 0, 42 | 0, 42 | |||
| Shim 3 | Thickness | mm | 5, 00 | 5, 00 | ||
| Adaptation (height) | mm | 8, 20 | 8, 45 | |||
| Adaptation (Romess) | ∠° | 1, 04 | 1, 03 | |||
| Shim 4 | Thickness | mm | 10, 00 | 10, 00 | ||
| Adaptation (height) | mm | 16, 40 | 16, 90 | |||
| Adaptation (Romess) | ∠° | 2, 08 | 2, 06 |
REAR AXLE ALIGNMENT
| Number | Designation | Model 164 | Model 166 | |||
|---|---|---|---|---|---|---|
| BE40.20-P-1001-12B | Vehicle level adaptation | Shim 1 | Thickness | mm | 1, 50 | 1, 50 |
| Adaptation (height) | mm | 2, 91 | 2, 91 | |||
| Adaptation (Romess) | ∠° | 0, 28 | 0, 34 | |||
| Shim 2 | Thickness | mm | 2, 00 | 2, 00 | ||
| Adaptation (height) | mm | 3, 88 | 3, 88 | |||
| Adaptation (Romess) | ∠° | 0, 37 | 0, 45 | |||
| Shim 3 | Thickness | mm | 5, 00 | 5, 00 | ||
| Adaptation (height) | mm | 9, 70 | 9, 70 | |||
| Adaptation (Romess) | ∠° | 0, 94 | 1, 13 | |||
| Shim 4 | Thickness | mm | 10, 00 | 10, 00 | ||
| Adaptation (height) | mm | 19, 40 | 19, 40 | |||
| Adaptation (Romess) | ∠° | 1, 88 | 2, 26 |
REAR AXLE ALIGNMENT
| Number | Designation | Model 251 | Model 292 | |||
|---|---|---|---|---|---|---|
| BE40.20-P-1001-12B | Vehicle level adaptation | Shim 1 | Thickness | mm | 1, 50 | 1, 50 |
| Adaptation (height) | mm | 2, 73 | 2, 91 | |||
| Adaptation (Romess) | ∠° | 0, 26 | 0, 34 | |||
| Shim 2 | Thickness | mm | 2, 00 | 2, 00 | ||
| Adaptation (height) | mm | 3, 64 | 3, 88 | |||
| Adaptation (Romess) | ∠° | 0, 34 | 0, 45 | |||
| Shim 3 | Thickness | mm | 5, 00 | 5, 00 | ||
| Adaptation (height) | mm | 9, 10 | 9, 70 | |||
| Adaptation (Romess) | ∠° | 0, 85 | 1, 13 | |||
| Shim 4 | Thickness | mm | 10, 00 | 10, 00 | ||
| Adaptation (height) | mm | 18, 20 | 19, 40 | |||
| Adaptation (Romess) | ∠° | 1, 70 | 2, 26 |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 494, except CODE 489 | MODEL 164.122/124/125/12 8/175/177/182/186 except CODE 489/494 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-02M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 3 | 1, 3 |
| When calibrating with Star Diagnosis | ∠° | - | - |
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.120/121/156 except CODE 489 | Model 164.120/121/122/12 4/125/128/156/175/1 77/182/186 with CODE 489, MODEL 164.172/195/8 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-02M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 3 | 1, 3 |
| When calibrating with Star Diagnosis | ∠° | - | 1, 0 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 ECE+USA with front+rear steel suspension, except code 847 | Model 251 ECE+USA with front+rear steel suspension, with code 847 | |
|---|---|---|---|---|
| BE40.20-P-1002-02N | Permissible difference in vehicle level between right and left side of vehicle | ∠° | 0, 6 | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 ECE with front steel suspension and rear air suspension | Model 251 USA with front steel suspension and rear air suspension | |
|---|---|---|---|---|
| BE40.20-P-1002-02N | Permissible difference in vehicle level between right and left side of vehicle | ∠° | 0, 6 | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 251 AMG | |
|---|---|---|---|
| BE40.20-P-1002-02N | Permissible difference in vehicle level between right and left side of vehicle | ∠° | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166.0 except code 489/491/Z04/Z05 | Model 166.0 with code 489, model 166.8 | |
|---|---|---|---|---|
| BE40.20-P-1002-02T | Permissible difference in vehicle level When checking at front axle between right and left sides of the vehicle | ∠° | 0, 6 | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166.0 with code 491 | Model 166.0 with code Z04/Z05 | |
|---|---|---|---|---|
| BE40.20-P-1002-02T | Permissible difference in vehicle level When checking at front axle between right and left sides of the vehicle | ∠° | 0, 6 | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 166 AMG | Model 292 except code 489 | |
|---|---|---|---|---|
| BE40.20-P-1002-02T | Permissible difference in vehicle level When checking at front axle between right and left sides of the vehicle | ∠° | 0, 6 | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT FRONT AXLE
| Number | Designation | Model 292 AMG | |
|---|---|---|---|
| BE40.20-P-1002-02T | Permissible difference in vehicle level When checking at front axle between right and left sides of the vehicle | ∠° | 0, 6 |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 494, except CODE 430, except CODE 489 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 430, with CODE 494, except CODE 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-03M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 0 | 1, 0 |
| When calibrating with Star Diagnosis | ∠° | - | - |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 with CODE 430, with CODE 489, MODEL 164.172/195 with CODE 430, MODEL 164.8 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 489, except CODE 430, MODEL 164.172/195 except CODE 430 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-03M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 0 | 1, 0 |
| When calibrating with Star Diagnosis | ∠° | 0, 8 | 0, 8 |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.120/121/156 except CODE 430, except CODE 489 | MODEL 164.120/121/156 with CODE 430, except CODE 489 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-03M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 0 | 1, 0 |
| When calibrating with Star Diagnosis | ∠° | - | - |
TEST AND ADJUSTMENT VALUES FOR REAR AXLE VEHICLE LEVEL
| Number | Designation | MODEL 164.122/124/125/128/175/177/182/186 except CODE 430, except CODE 489, except CODE 494 | MODEL 164.122/124/125/12 8/175/177/182/186 with CODE 430, except CODE 489, except CODE 494 | ||
|---|---|---|---|---|---|
| BE40.20-P-1002-03M | Permissible difference in vehicle level between right and left side of vehicle | When checking | ∠° | 1, 0 | 1, 0 |
| When calibrating with Star Diagnosis | ∠° | - | - |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 ECE+USA with front+rear steel suspension, except code 847 | Model 251 ECE+USA with front+rear steel suspension, with code 847 | |
|---|---|---|---|---|
| BE40.20-P-1002-03N | Permissible difference in vehicle level at rear axle between right and left side of vehicle | ∠° | 0, 5 | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 ECE with front steel suspension and rear air suspension | Model 251 USA with front steel suspension and rear air suspension | |
|---|---|---|---|---|
| BE40.20-P-1002-03N | Permissible difference in vehicle level at rear axle between right and left side of vehicle | ∠° | 0, 5 | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 251 AMG | |
|---|---|---|---|
| BE40.20-P-1002-03N | Permissible difference in vehicle level at rear axle between right and left side of vehicle | ∠° | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166.0 except code 489/491/Z04/Z05 | Model 166.0 with code 489, model 166.8 | |
|---|---|---|---|---|
| BE40.20-P-1002-03U | Permissible difference in vehicle level When checking at rear axle between right and left sides of vehicle | ∠° | 0, 5 | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166.0 with code 491 | Model 166.0 with code Z04/Z05 | |
|---|---|---|---|---|
| BE40.20-P-1002-03U | Permissible difference in vehicle level When checking at rear axle between right and left sides of vehicle | ∠° | 0, 5 | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 166 AMG | Model 292 except code 489 | |
|---|---|---|---|---|
| BE40.20-P-1002-03U | Permissible difference in vehicle level When checking at rear axle between right and left sides of vehicle | ∠° | 0, 5 | 0, 5 |
TEST AND ADJUSTMENT VALUES FOR VEHICLE LEVEL AT REAR AXLE
| Number | Designation | Model 292 AMG | |
|---|---|---|---|
| BE40.20-P-1002-03U | Permissible difference in vehicle level When checking at rear axle between right and left sides of vehicle | ∠° | 0, 5 |
- Compare required vehicle level with measured vehicle level. Model 166, 292 except code 489 (AIRMATIC) Model 166, 292 except code 489 (AIRMATIC) Model 166, 292 except code 489 (AIRMATIC) Model 166, 292 except code 489 (AIRMATIC) Model 164 except code 489 (AIRMATIC) Model 164 except code 489 (AIRMATIC) Model 251 except code 489 (AIRMATIC) Model 251 except code 489 (AIRMATIC) Model 164 except code 489 (AIRMATIC) Model 164 except code 489 (AIRMATIC) Model 251 except code 489 (AIRMATIC) Model 251 except code 489 (AIRMATIC)
- 2.1 When adjusting vehicle level on front axle.

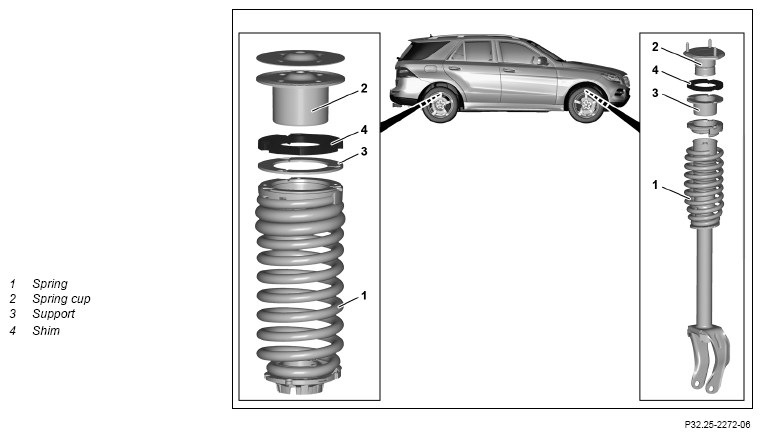

Fit shim (4) between upper spring cup (2) and contact surface (3).
Shims (4) are available in sizes 1.5 mm, 2.0 mm, 5.0 mm and 10 mm.
- 2.2 When adjusting vehicle level on rear axle.
Fit shim (4) between upper spring cup (2) and contact surface (3).
- Check shim (4) is correctly seated.
