Remove/Install Rear Seat Cushion - AR91.12-P-1020GQ
MODEL 166
60 % rear seat cushion

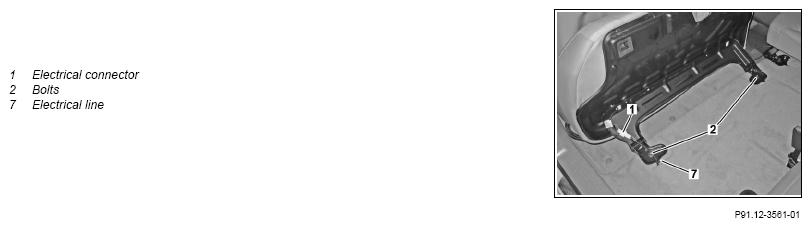

Shows model 166.0

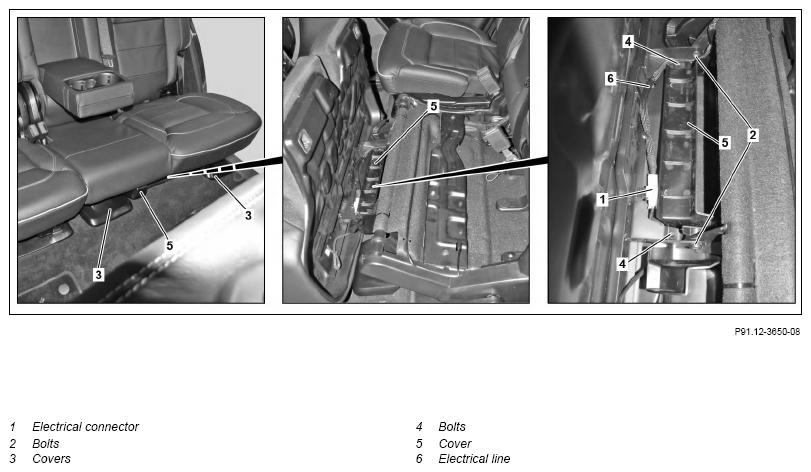

Shown on model 166.8
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove both covers (3) at vehicle floor | MODEL 166.860 % rear seat cushion | |
| 2 | Fold up rear seat cushion | ||
| 3 | Remove screws/bolts (4) and remove cover (5) | MODEL 166.860 % rear seat cushion | |
| 4.1 | Disconnect electrical connector (1) | MODEL 166.0 with CODE 872 (Electrically heated left and right rear seats) 60 % rear seat cushion |
|
| 4.2 | Disconnect electrical connector (1) and unclip electrical line (6) from rear seat cushion | MODEL 166.8 with CODE 872 (Electrically heated left and right rear seats) 60 % rear seat cushion |
|
| 5 | Remove bolts (2) | ||
MODEL 166.8 60 % rear seat cushion |
*BA91.12-P-1004-03F | ||
MODEL 166.0 60 % rear seat cushion |
*BA91.12-P-1001-03F | ||
| 6 | Remove rear seat cushion | ||
| 7 | Install in the reverse order |
REAR SEATS
| Number | Designation | MODEL 166.8 | |
|---|---|---|---|
| BA91.12-P-1004-03F | Bolt, rear seat cushion to rear seat console | Nm | 25 |
REAR SEATS
| Number | Designation | MODEL 166.0 | |
|---|---|---|---|
| BA91.12-P-1001-03F | Bolt, rear seat console to vehicle floor | Nm | 50 |
