(Remove/Install Head Restraint Guide On Front Seat - AR91.16-P-0050GQ)

Model 166

up to model year 2016

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove
1	Remove head restraint		AR91.16-P-0040GQ

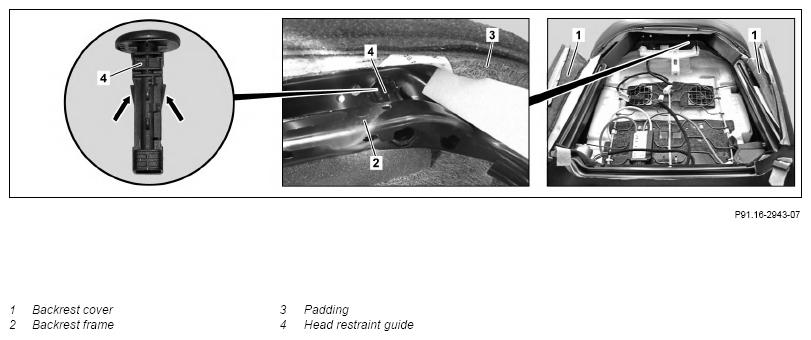

2	Unhook tabs of backrest cover (1) from backrest frame (2)
3	Release backrest cover (1) with padding (3) from backrest frame (2)
4	Expose right or left head restraint guide (4) and create a gap between padding (3) and backrest frame (2) using a suitable tool	Do not overstretch padding (3) and backrest cover (1).
5	Release right or left head restraint guide (4) from both catch hooks (arrows) using a suitable tool and pull out upwards from backrest frame (2)	Replace head restraint guides (1).
	Install
6	Align backrest cover (1) with padding (3) on backrest frame (2)
7	Insert right and left head restraint guide (4) into backrest frame (2) from above and engage	Ensure that it is seated correctly in the backrest frame (2).
8	Hook tabs of backrest cover (1) into backrest frame (2)
9	Install heat restraint		AR91.16-P-0040GQ
