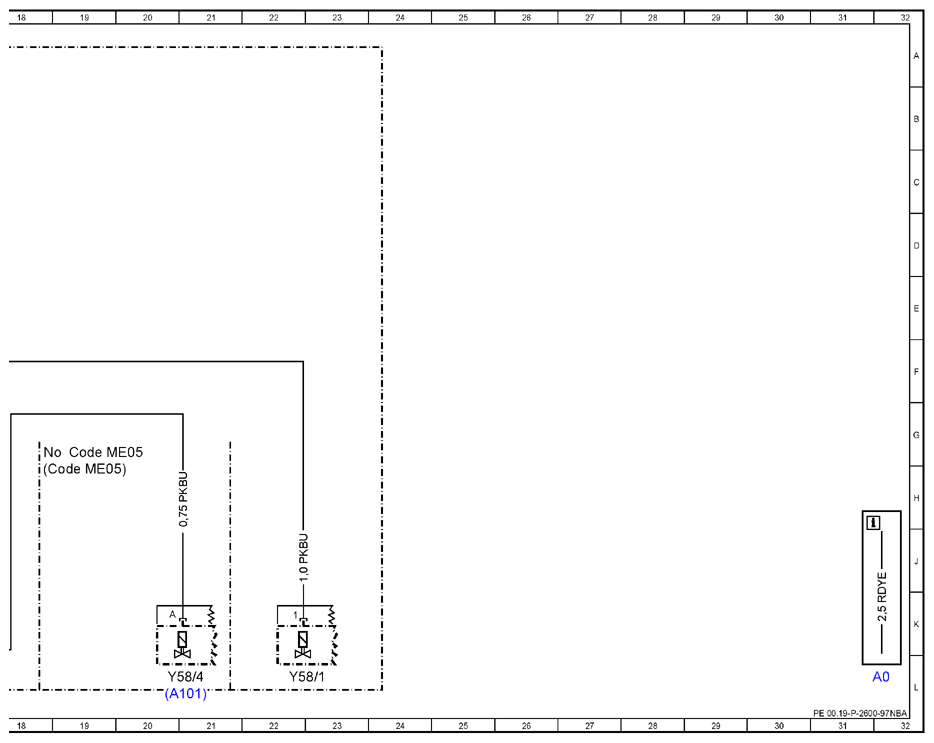

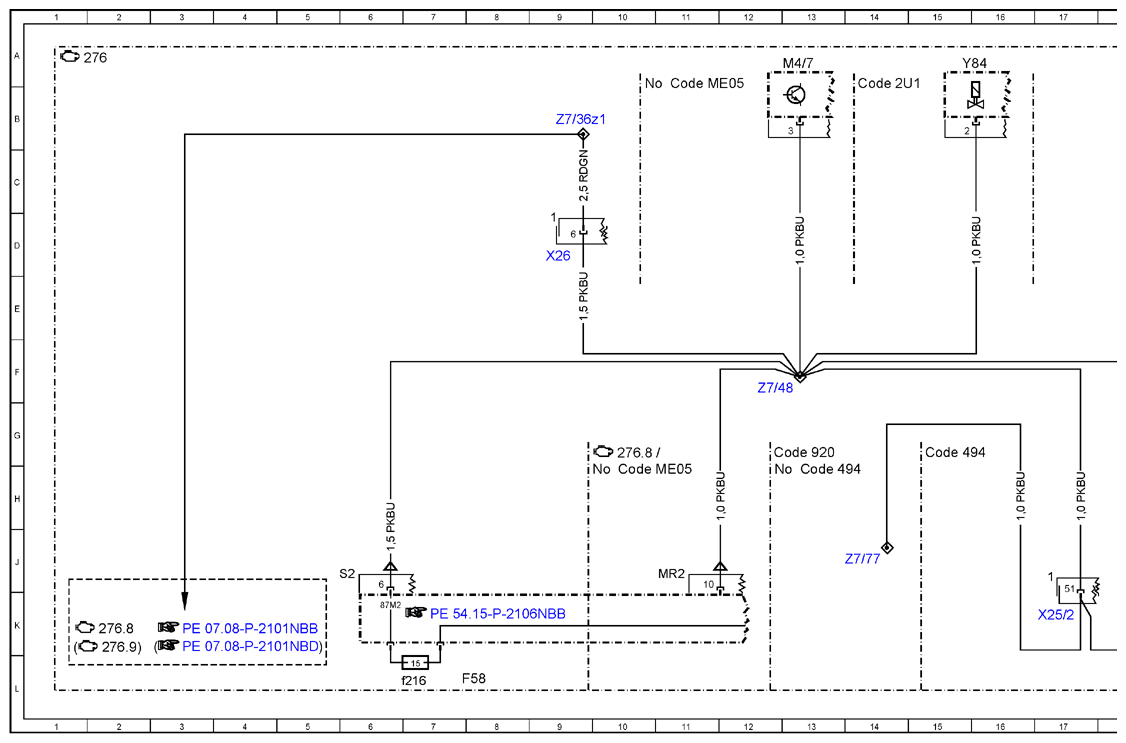

Wiring Diagram Of Soldered Points/Z Connector Sleeves - PE00.19-P-2600-97NBA
Model 166 with engine 276 as of model year 2016 Z7/48
Model 292 with engine 276 Z7/48
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A101 | Fuel tank diagnostic module | 20L |
| Code 2U1 | Radiator shutters | 14B |
| Code 494 | USA version | 15G |
| Code 494 | USA version | 13H |
| Code 920 | Gasoline direct injection with stratified charge | 12G |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 18H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 11B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 19G |
| F58 | Engine compartment fuse and relay module | 8L |
| F58f216 | Fuse 216 | 7L |
| M4/7 | Fan motor | 13A |
| X25/2 | Engine compartment/vehicle interior electrical connector | 17K |
| X26 | Interior and engine wiring harness electrical connector | 9D |
| Y58/1 | Purge control valve | 22L |
| Y58/4 | Activated charcoal filter shutoff valve | 20L |
| Y84 | Radiator shutters actuator | 15A |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 9B |
| Z7/48 | Circuit 87D2 connector sleeve | 12F |
| Z7/77 | Circuit 87 D2 connector sleeve | 14J |
