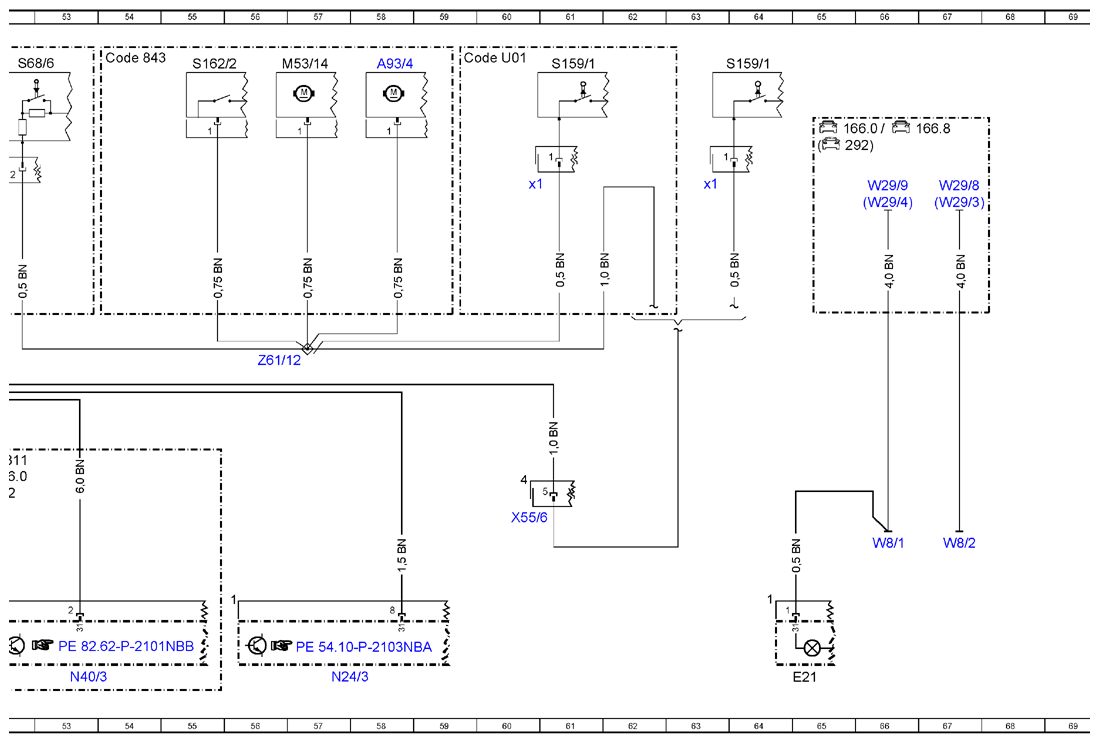

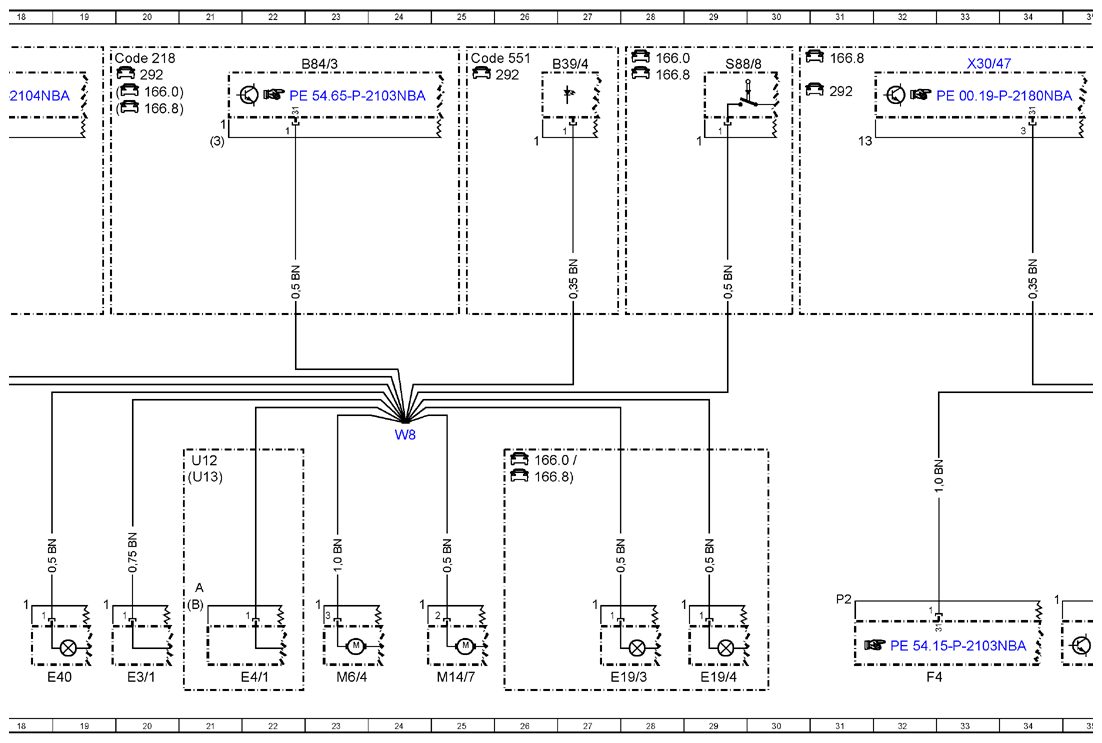

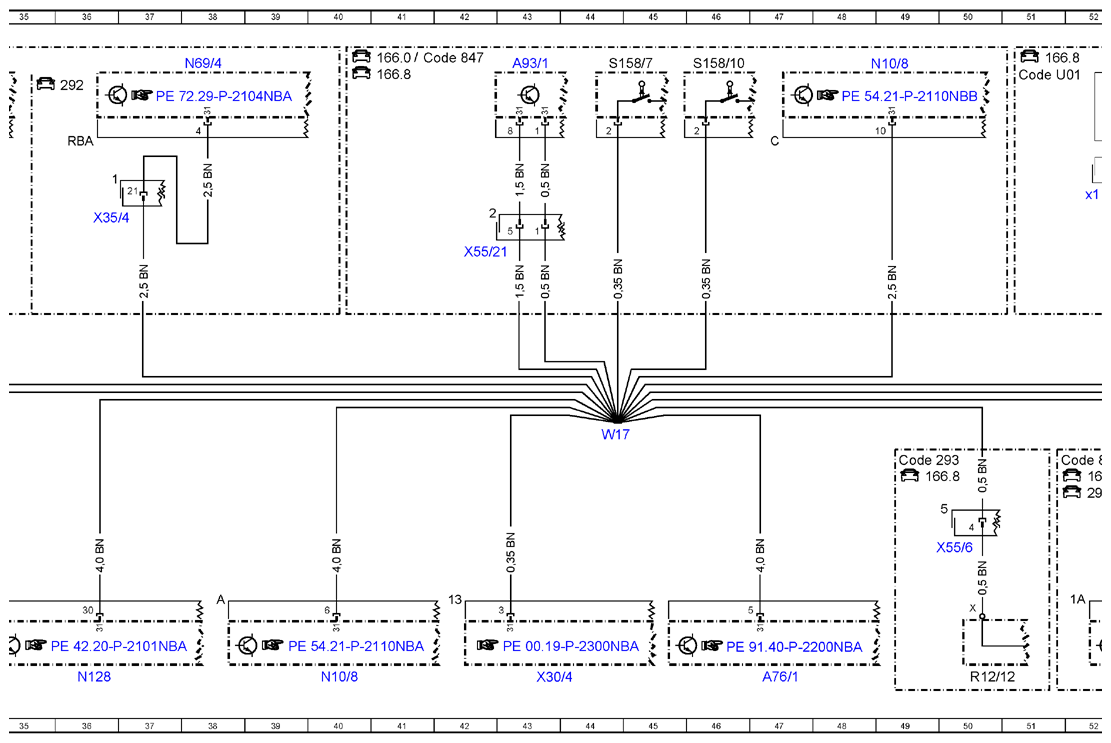

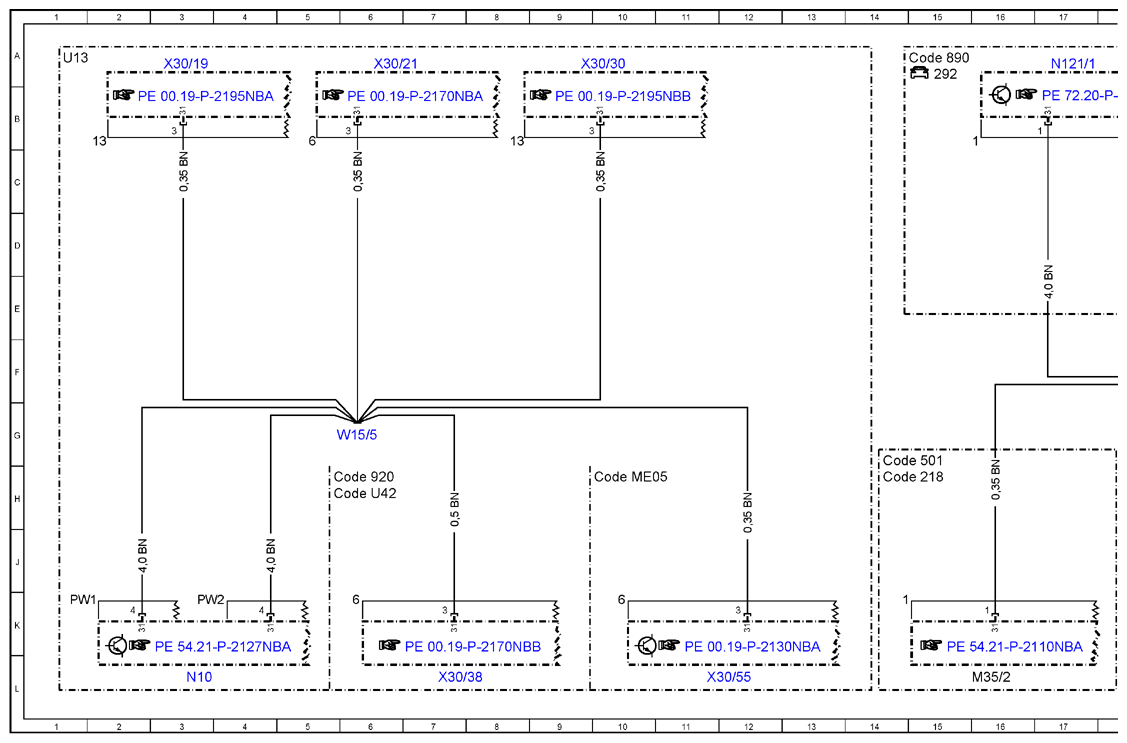

Wiring Diagram Of Ground Cabling - PE00.19-P-2800-97NBE
Model 166 as of model year 2016 W8, W15/5, W17, Z61/12
Model 292 W8, W15/5, W17, Z61/12
| Code: | Designation: | Position: |
|---|---|---|

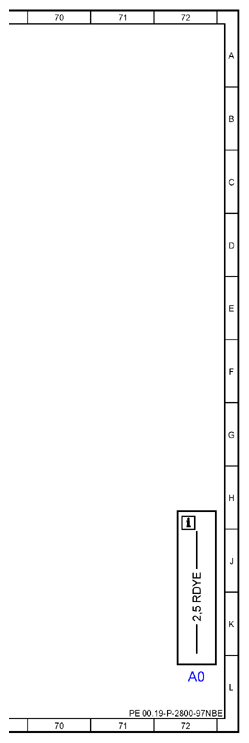

| A0 | Color code key | 72L |
| A76/1 | Right front reversible emergency tensioning retractor | 47L |
| A93/1 | Left 3rd seat row backrest release unit | 43A |
| A93/4 | Right 2nd seat row release unit | 58A |
| B39/4 | Rear window glass breakage sensor | 27A |
| B84/3 | Backup camera | 23A |
| Code 218 | Backup camera | 19A |
| Code 218 | Backup camera | 14H |
| Code 293 | Left and right rear sidebag | 49G |
| Code 501 | 360 degree camera | 14G |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 25A |
| Code 811 | Extended sound system | 51G |
| Code 843 | Electric EASY-ENTRY | 54A |
| Code 847 | 3rd seat row | 41A |
| Code 890 | Tailgate control | 15A |
| Code 920 | Gasoline direct injection with stratified charge | 5H |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10H |
| Code U01 | Rear seat belt status indicator in instrument cluster | 51A |
| Code U01 | Rear seat belt status indicator in instrument cluster | 59A |
| Code U42 | BlueTEC® diesel exhaust treatment | 5H |
| E19/3 | Left liftgate license plate lamp | 27L |
| E19/4 | Right liftgate license plate lamp | 29L |
| E21 | Center stop lamp | 65L |
| E3/1 | Inner left rear lamp unit | 20L |
| E4/1 | Inner right rear lamp unit | 22L |
| E40 | Tailgate ambient lamp | 19L |
| F4 | Rear fuse box | 32L |
| M14/7 | Tailgate central locking motor | 25L |
| M35/2 | Rear camera cover motor | 16L |
| M53/14 | Right 2nd seat row head restraint motor | 57A |
| M6/4 | Tailgate wiper motor | 23L |
| N10 | SAM control unit | 3L |
| N10/8 | Rear control unit | 40L |
| N10/8 | Rear control unit | 49A |
| N121/1 | Tailgate control control unit | 17A |
| N128 | Electric parking brake control unit | 36L |
| N24/3 | DC/AC converter control unit | 57L |
| N40/3 | Sound system amplifier control unit | 53L |
| N69/4 | Right rear door control unit | 38A |
| R12/12 | Right rear sidebag squib | 50L |
| S158/10 | Right 3rd seat row folding backrest switch (right 2nd seat row) | 46A |
| S158/7 | Left 3rd seat row folding backrest switch (right 2nd seat row) | 44A |
| S159/1 | Right 2nd seat row easy entry/exit switch | 64A |
| S159/1 | Right 2nd seat row easy entry/exit switch | 61A |
| S159/1x1 | Right 2nd seat row easy entry/exit switch electrical connector | 60C |
| S159/1x1 | Right 2nd seat row easy entry/exit switch electrical connector | 63C |
| S162/2 | Right 2nd seat row folding backrest switch | 55A |
| S68/6 | Right rear seat belt buckle switch | 52A |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 52C |
| S88/8 | Tailgate external operation switch | 29A |
| U12 | Valid for left-hand drive vehicles | 21G |
| U13 | Valid for right-hand drive vehicles | 1A |
| U13 | Valid for right-hand drive vehicles | 21H |
| W15/5 | Left front footwell ground point | 6G |
| W17 | Right rear seat ground point | 44G |
| W29/3 | Left C-pillar ground point | 67C |
| W29/4 | Ground point/right C-pillar | 66C |
| W29/8 | Left D-pillar ground point | 67C |
| W29/9 | Right D-pillar ground point | 66C |
| W8 | Liftgate ground point | 24G |
| W8/1 | Left tailgate ground point | 66J |
| W8/2 | Right tailgate ground point | 67J |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 3A |
| X30/21 | Drive train CAN voltage distributor electrical connector | 6A |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 10A |
| X30/38 | Potential distributor electrical connector (CAN I) | 7L |
| X30/4 | Right potential distributor electrical connector (CAN) | 43L |
| X30/47 | Telematics CAN voltage distributor electrical connector | 33A |
| X30/55 | Front hybrid CAN (CAN L) potential distributor electrical connector | 11L |
| X35/4 | Right rear door electrical connector | 36D |
| X55/21 | Left 3rd seat row connector block | 42D |
| X55/6 | Right rear seat adjustment unit connector block | 50J |
| X55/6 | Right rear seat adjustment unit connector block | 60H |
| Z61/12 | Left circuit 31 2nd seat row connector sleeve | 56F |
