Remove/Install Right Inerting System Line In Engine Compartment - AR86.10-P-0419GQA
Model 166, 292 with engine 276, 278 with code 2U8 (Alternative refrigerant)

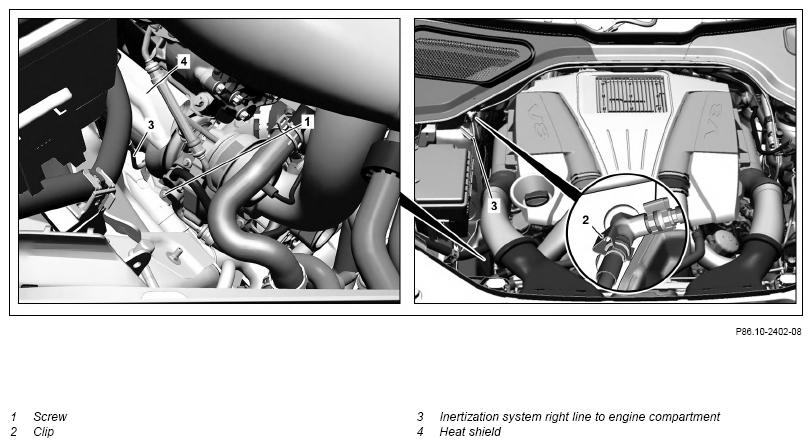

Fig 1: Right Inerting System Line In Engine Compartment Components Location - Model 166 With Engine 276, 278 With Code 2U8 (Shown On Model 292 With Engine 278)
Shown On Model 292 With Engine 278
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove right air filter housing with right engine air intake duct | Model 166, 292 with engine 276.8 with code 2U8 (Alternative refrigerant) | AR09.10-P-1150GQC |
| 3 | Remove bolt (1) | *BA86.10-P-1002-03B | |
| 4 | Expose inertization system right line to engine compartment (3) up to clamp (2) | ||
| 5 | Remove clamp (2) | ||
| 6 | Remove inertization system right line to engine compartment (3) | ||
| 7 | Install in the reverse order |
INERTING
| Number | Designation | Model 166, 292 | ||||
|---|---|---|---|---|---|---|
| BA86.10-P-1002-03B | Pipe for inerting to engine | M6 | Screw | Nm | 8 | |
| Nut | Stage 1 | Nm | 8 | |||
| Stage 2 | ∠° | 30 | ||||
