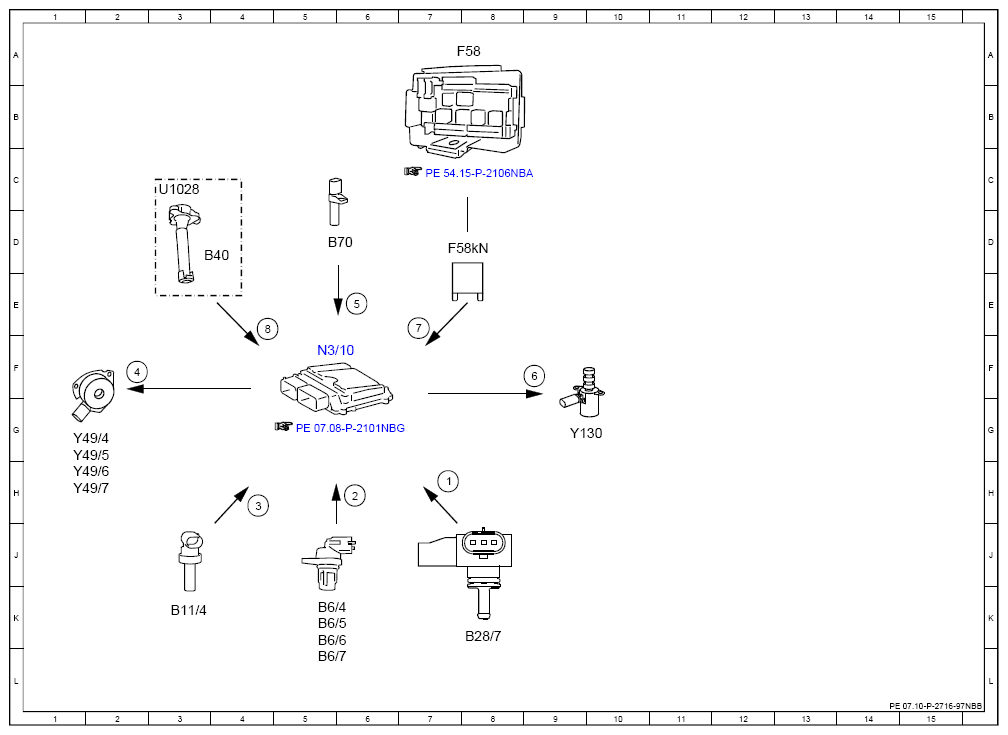

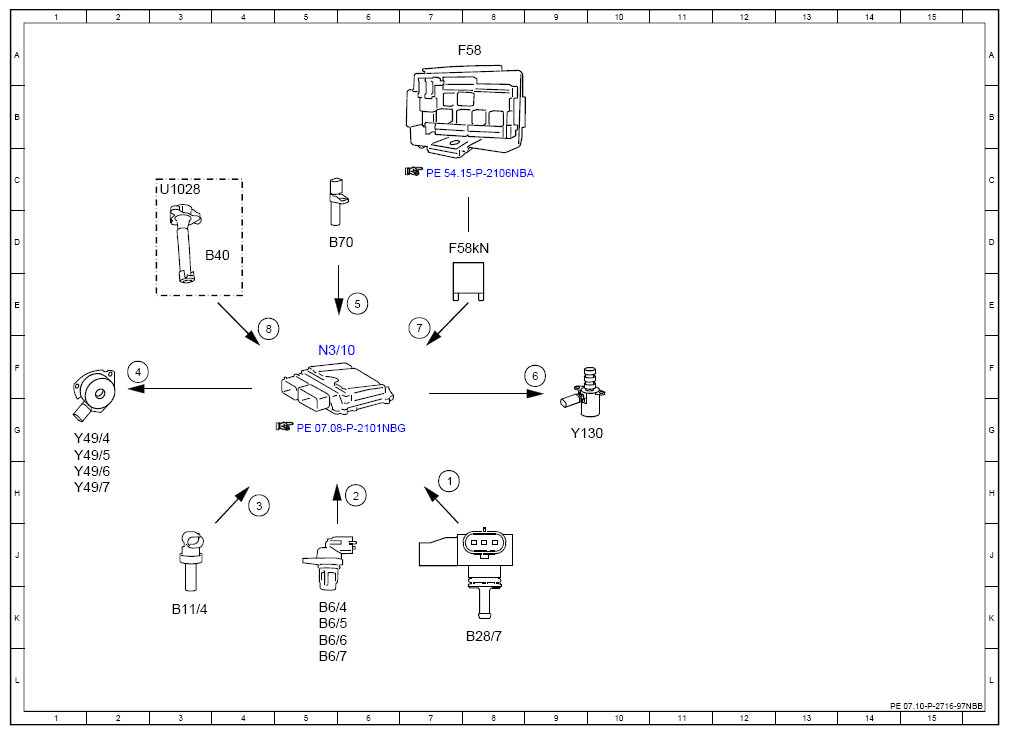

Electrical Function Schematic For Camshaft Adjustment - PE07.10-P-2716-97NBB
ENGINE 157, 278 in MODEL 166 as of model year 2016
ENGINE 157, 278 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine load, signal | 7H |
| 2 | Camshaft Hall sensor, signal | 6H |
| 3 | Coolant temperature sensor, signal | 4H |
| 4 | Camshaft solenoids, actuation | 2F |
| 5 | Engine speed, signal | 6E |
| 6 | Engine oil pump valve, actuation | 9F |
| 7 | Circuit 87, status | 7E |
| 8 | Oil sensor (oil level, temperature and quality), signal | 4E |
| B11/4 | Coolant temperature sensor | 3K |
| B28/7 | Pressure sensor downstream of throttle valve | 8K |
| B40 | Oil sensor (oil level, temperature and quality) | 4D |
| B6/4 | Left intake camshaft Hall sensor | 5K |
| B6/5 | Right intake camshaft Hall sensor | 5K |
| B6/6 | Left exhaust camshaft Hall sensor | 5K |
| B6/7 | Right exhaust camshaft Hall sensor | 5L |
| B70 | Crankshaft Hall sensor | 5D |
| F58 | Engine compartment fuse and relay module | 8A |
| F58kN | Circuit 87M relay | 7D |
| N3/10 | ME-SFI [ME] control unit | 5F |
| U1028 | Valid for engine 157 | 3C |
| Y130 | Engine oil pump valve | 9G |
| Y49/4 | Left intake camshaft solenoid | 1G |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1H |
| Y49/7 | Right exhaust camshaft solenoid | 1H |
