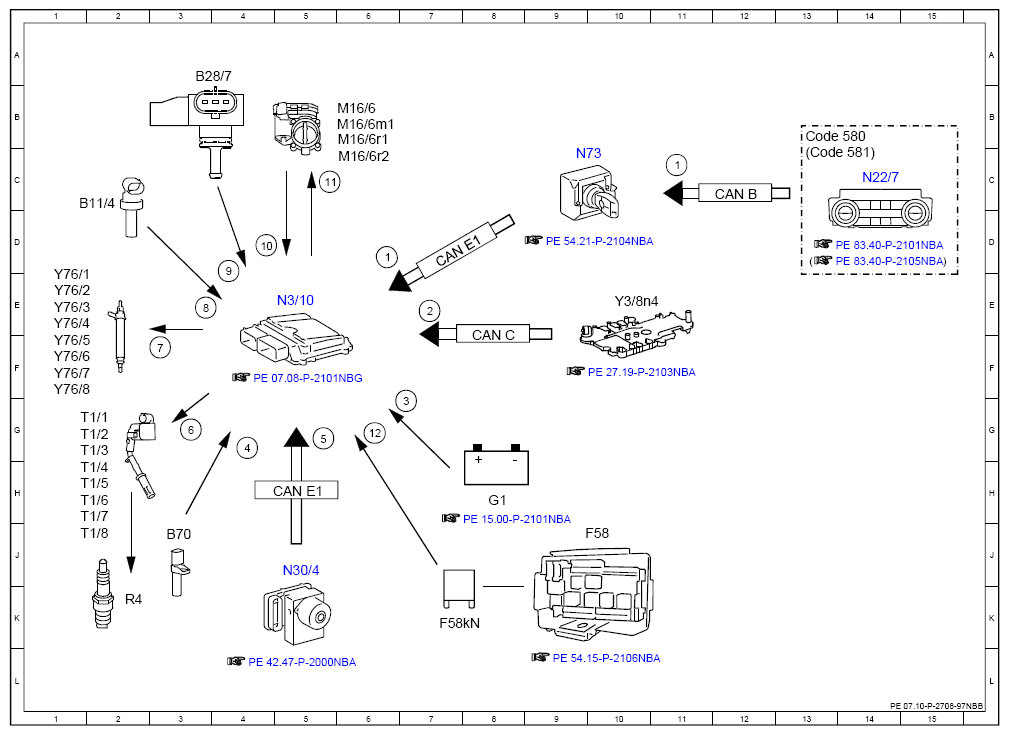

Electrical Function Schematic For RPM Control - PE07.10-P-2708-97NBB
ENGINE 157, 278 in MODEL 166 as of model year 2016
ENGINE 157, 278 in MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Air conditioning, status | 6D |
| 1 | Air conditioning, status | 11C |
| 10 | Throttle valve position, signal | 4D |
| 11 | Throttle valve actuator motor, actuation | 6C |
| 12 | Circuit 87, status | 6G |
| 2 | Gear range, status | 7E |
| 3 | Circuit 30, status | 7G |
| 4 | Engine speed, signal | 4G |
| 5 | Wheel speed, signal | 5G |
| 6 | Ignition coils, actuation | 3G |
| 7 | Fuel injectors, actuation | 3F |
| 8 | Coolant temperature sensor, signal | 3E |
| 9 | Engine load, signal | 4E |
| B11/4 | Coolant temperature sensor | 2C |
| B28/7 | Pressure sensor downstream of throttle valve | 3A |
| B70 | Crankshaft Hall sensor | 3J |
| CAN B | Interior CAN | 12C |
| CAN C | Drive train CAN | 8F |
| CAN E1 | Chassis CAN 1 | 5H |
| CAN E1 | Chassis CAN 1 | 7D |
| Code 580 | Automatic air conditioning | 13B |
| Code 581 | Comfort automatic air conditioning | 13C |
| F58 | Engine compartment fuse and relay module | 10J |
| F58kN | Circuit 87M relay | 7K |
| G1 | On-board electrical system battery | 8H |
| M16/6 | Throttle valve actuator | 6B |
| M16/6m1 | Actuator motor | 6B |
| M16/6r1 | Actual value potentiometer 1 | 6B |
| M16/6r2 | Actual value potentiometer 2 | 6C |
| N22/7 | Automatic air conditioning control and operating unit | 14C |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N30/4 | Electronic Stability Program control unit | 5J |
| N73 | Electronic ignition switch control unit | 9C |
| R4 | Spark plugs | 2K |
| T1/1 | Cylinder 1 ignition coil | 1G |
| T1/2 | Cylinder 2 ignition coil | 1G |
| T1/3 | Cylinder 3 ignition coil | 1G |
| T1/4 | Cylinder 4 ignition coil | 1H |
| T1/5 | Cylinder 5 ignition coil | 1H |
| T1/6 | Cylinder 6 ignition coil | 1H |
| T1/7 | Cylinder 7 ignition coil | 1H |
| T1/8 | Cylinder 8 ignition coil | 1J |
| Y3/8n4 | Fully integrated transmission control control unit | 10E |
| Y76/1 | Cylinder 1 fuel injector | 1E |
| Y76/2 | Cylinder 2 fuel injector | 1E |
| Y76/3 | Cylinder 3 fuel injector | 1E |
| Y76/4 | Cylinder 4 fuel injector | 1E |
| Y76/5 | Cylinder 5 fuel injector | 1F |
| Y76/6 | Cylinder 6 fuel injector | 1F |
| Y76/7 | Cylinder 7 fuel injector | 1F |
| Y76/8 | Cylinder 8 fuel injector | 1F |
