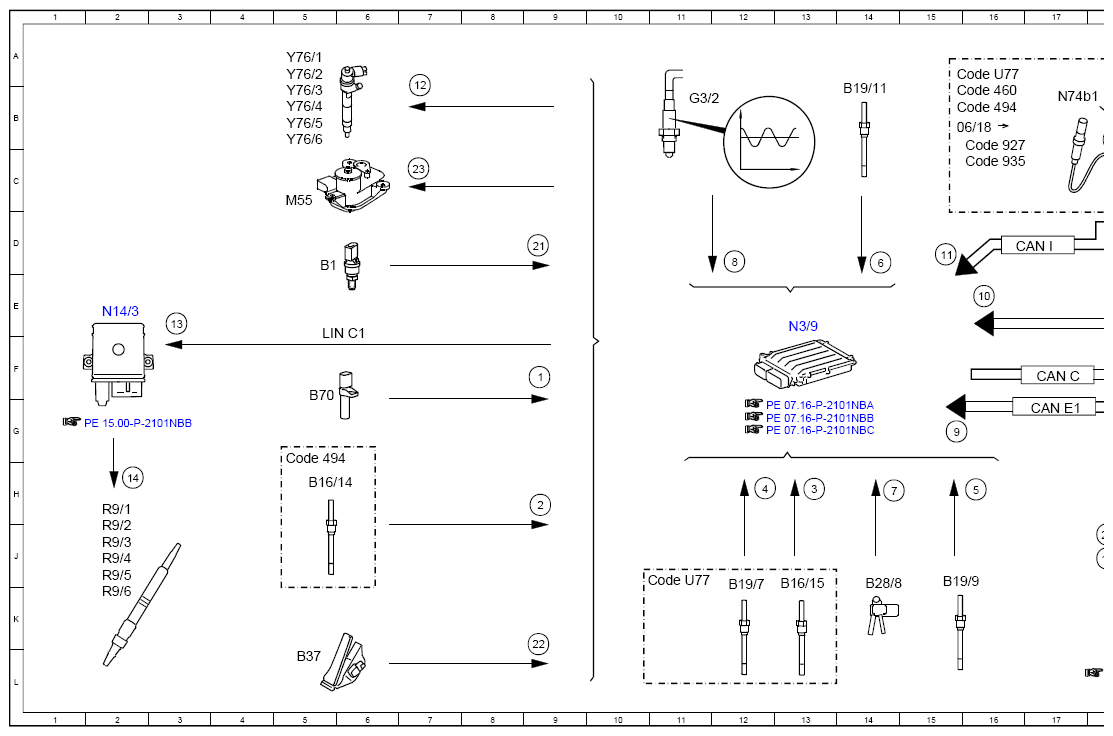

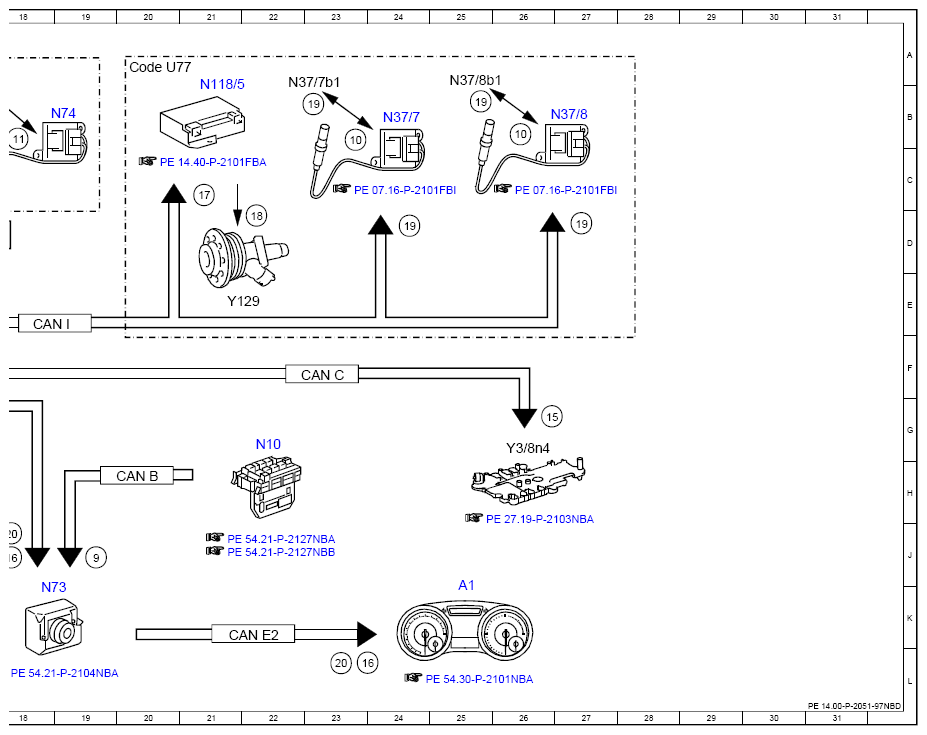

Electrical Function Schematic For Exhaust Treatment - PE14.00-P-2051-97NBD
Engine 642.8 in model 166 as of model year 2016
Engine 642.8 in model 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Crankshaft Hall sensor, signal | 9F |
| 10 | NOx sensor, signal | 23B |
| 10 | NOx sensor, signal | 26B |
| 10 | NOx sensor, signal | 16E |
| 11 | Soot particulate sensor, signal | 15D |
| 11 | Soot particulate sensor, signal | 18B |
| 12 | Fuel injectors, actuation | 7B |
| 13 | Glow, request | 3E |
| 14 | Glow plugs, actuation | 2H |
| 15 | Shift point, increase request | 26G |
| 16 | Indicator lamp, request | 18J |
| 16 | Indicator lamp, request | 23K |
| 17 | AdBlue® injection, request | 21C |
| 18 | AdBlue® metering valve, actuation | 22D |
| 19 | NOx sensor heater, actuation | 24D |
| 19 | NOx sensor heater, actuation | 27D |
| 19 | NOx sensor heater, actuation | 23B |
| 19 | NOx sensor heater, actuation | 25B |
| 2 | Exhaust gas recirculation temperature sensor, signal | 9H |
| 20 | Warning tone, request | 18J |
| 20 | Warning tone, request | 23L |
| 21 | Oil temperature sensor, signal | 9D |
| 22 | Accelerator pedal sensor, signal | 9K |
| 23 | Intake port shutoff actuator motor, actuation | 7C |
| 3 | Temperature sensor upstream of SCR catalytic converter, signal | 13H |
| 4 | Temperature sensor upstream of catalytic converter, signal | 12H |
| 5 | Temperature sensor upstream of diesel particulate filter, signal | 16H |
| 6 | Temperature sensor upstream of turbocharger, signal | 14D |
| 7 | Differential pressure sensor (DPF), signal | 14H |
| 8 | Oxygen sensor sensor element, signal | 12D |
| 9 | Outside temperature, signal | 15G |
| 9 | Outside temperature, signal | 19J |
| A1 | Instrument cluster | 25K |
| B1 | Engine oil temperature sensor | 5D |
| B16/14 | Exhaust gas recirculation temperature sensor | 5H |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 13K |
| B19/11 | Temperature sensor upstream of turbocharger | 14B |
| B19/7 | Temperature sensor upstream of catalytic converter | 12K |
| B19/9 | Temperature sensor upstream of diesel particulate filter | 15J |
| B28/8 | Differential pressure sensor (DPF) | 14K |
| B37 | Accelerator pedal sensor | 5L |
| B70 | Crankshaft Hall sensor | 5G |
| CAN B | Interior CAN | 20H |
| CAN C | Drive train CAN | 17F |
| CAN C | Drive train CAN | 23F |
| CAN E1 | Chassis CAN 1 | 17G |
| CAN E2 | Chassis CAN 2 | 22K |
| CAN I | Drive train sensor CAN | 18E |
| CAN I | Drive train sensor CAN | 17D |
| Code 460 | Canada version | 15B |
| Code 494 | USA version | 5H |
| Code 494 | USA version | 15B |
| Code 927 | Exhaust treatment with EUR06 technology | 16C |
| Code 935 | Super ultra low emission vehicle | 16C |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 10J |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 20A |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 15A |
| G3/2 | Oxygen sensor upstream of catalytic converter | 11B |
| LIN C1 | Drive train LIN | 5F |
| M55 | Intake port shutoff actuator motor | 5C |
| N10 | SAM control unit | 22G |
| N118/5 | AdBlue® control unit | 21B |
| N14/3 | Glow output stage | 2E |
| N3/9 | CDI control unit | 13E |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 24B |
| N37/7b1 | NOx sensor downstream of diesel particulate filter | 22B |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 27B |
| N37/8b1 | NOx sensor downstream of SCR catalytic converter | 25A |
| N73 | Electronic ignition switch control unit | 18K |
| N74 | Soot particulate sensor control unit | 19B |
| N74b1 | Soot particulate sensor | 17B |
| R9/1 | Cylinder 1 glow plug | 2H |
| R9/2 | Cylinder 2 glow plug | 2J |
| R9/3 | Cylinder 3 glow plug | 2J |
| R9/4 | Cylinder 4 glow plug | 2J |
| R9/5 | Cylinder 5 glow plug | 2J |
| R9/6 | Cylinder 6 glow plug | 2K |
| Y129 | AdBlue® metering valve | 21E |
| Y3/8n4 | Fully integrated transmission control control unit | 26G |
| Y76/1 | Cylinder 1 fuel injector | 5A |
| Y76/2 | Cylinder 2 fuel injector | 5A |
| Y76/3 | Cylinder 3 fuel injector | 5B |
| Y76/4 | Cylinder 4 fuel injector | 5B |
| Y76/5 | Cylinder 5 fuel injector | 5B |
| Y76/6 | Cylinder 6 fuel injector | 5B |
