Remove/Install Exhaust Gas Recirculation Positioner - AR14.20-P-1020OGR
Engine 642 in model 166, 292 except code 927 (EU6 emissions standard)

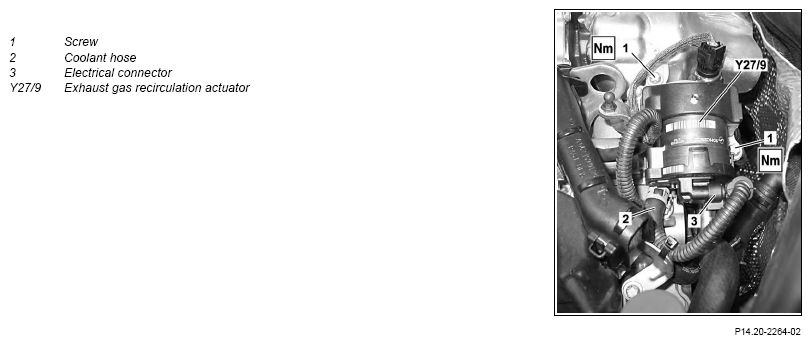

Fig 1: Exhaust Gas Recirculation Actuator/Positioner Components Location - Engine 642 In Model 166 Except Code 927
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Drain coolant at radiator. | AR20.00-P-1142GQ | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 2 | Open hood, position vertically. | Engine 642 in model 166, 292 except code 927 (EU6 emissions standard) | |
| Engine 642 in model 166 except code 927 (EU6 emissions standard) | AR88.40-P-1000GQ | ||
| 3 | Remove cover above the left suspension strut tower and left section of the bulkhead. | ||
| 4 | Remove water drain duct from the left suspension strut tower. | ||
| 5 | Remove left air filter housing. | AR09.10-P-1150OGR | |
| 6 | Remove left noise damper. | ||
| 7 | Remove bracket from the engine wiring harness on the left cylinder head cover. | ||
| 8 | Remove coolant hose (2) of the exhaust gas recirculation actuator (Y27/9) from the coolant line. | ||
| 9 | Disconnect electrical connector (3). | ||
| 10 | Remove bolts (1). | *BA14.20-P-1002-01G | |
| 11 | Remove exhaust gas recirculation actuator (Y27/9). | ||
| 12 | Install in the reverse order. | ||
| 13 | Fill in coolant. | AR20.00-P-1142GQ | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| 14 | Check cooling system for leaks. | AR20.00-P-1010GQ | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it i running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Check for leaktightness when engine is running. |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 642.82/83/85/86/87/886/887/9 | |
|---|---|---|---|
| BA14.20-P-1002-01G | Bolt, exhaust gas recirculation positioner to charge air distributor | Nm | 12 |
