Remove/Install Throttle Valve Actuator - AR07.51-P-1401MLJ

ENGINE 157, 278 in model 166

ENGINE 157, 278 in model 292

Shown on ENGINE 157

Courtesy of MERCEDES-BENZ USA

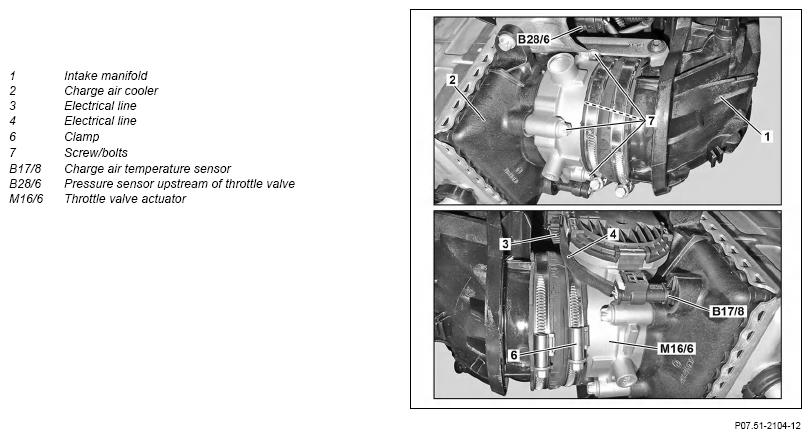

Fig 1: Throttle Valve Actuator Components Location - Engine 157, 278 In Model 166 (Shown On Engine 157)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove intake manifold (1)		AR09.20-P-1310MLJ
2	Disconnect electrical connections on charge air temperature sensor (B17/8) and pressure sensor upstream of throttle valve (B28/6)
3	Disconnect electrical connection at throttle valve actuator (M16/6)
4	Unclip electrical line (4) on throttle valve actuator (M16/6)

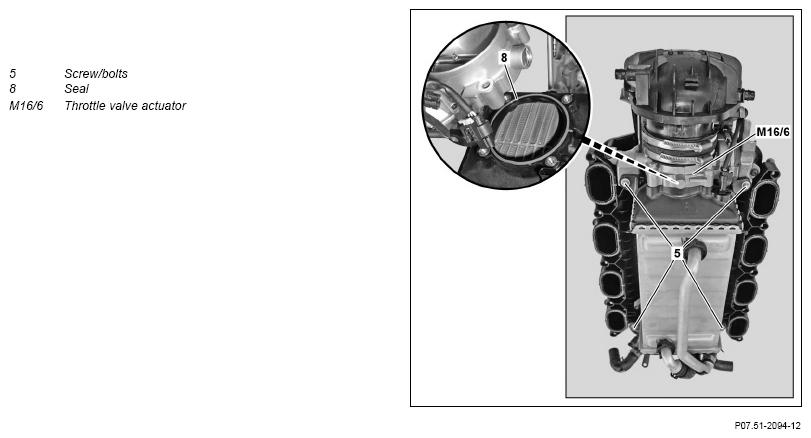

5	Unscrew screw/bolts (5) for charge air cooler (2) on intake manifold (1)	Bolt, charge air cooler to charge air distribution line	*BA09.41-P-1001-01O
6	Loosen clamp (6) for intake manifold (1) on throttle valve actuator (M16/6)
7	Detach charge air cooler (2) and throttle valve actuator (M16/6) on intake manifold (1)
8	Unclip electrical line (3) on throttle valve actuator (M16/6)
9	Remove screws/bolts (7) on throttle valve actuator (M16/6)	Bolt, throttle valve actuator to charge air cooler	*BA09.41-P-1002-01O
10	Detach throttle valve actuator (M16/6) from charge air cooler (2)	: Ensure correct seating of the seal between throttle valve actuator (M16/6) and charge air cooler (2).
11	Remove seal (8) for throttle valve actuator (M166) on charge air cooler (2)	: Install new seal (8). Hook seal (8) onto charge air cooler (2).
12	Install in the reverse order
13	Read out fault memory using diagnostic unit and clear, if necessary
			AD00.00-P-2000-04A
