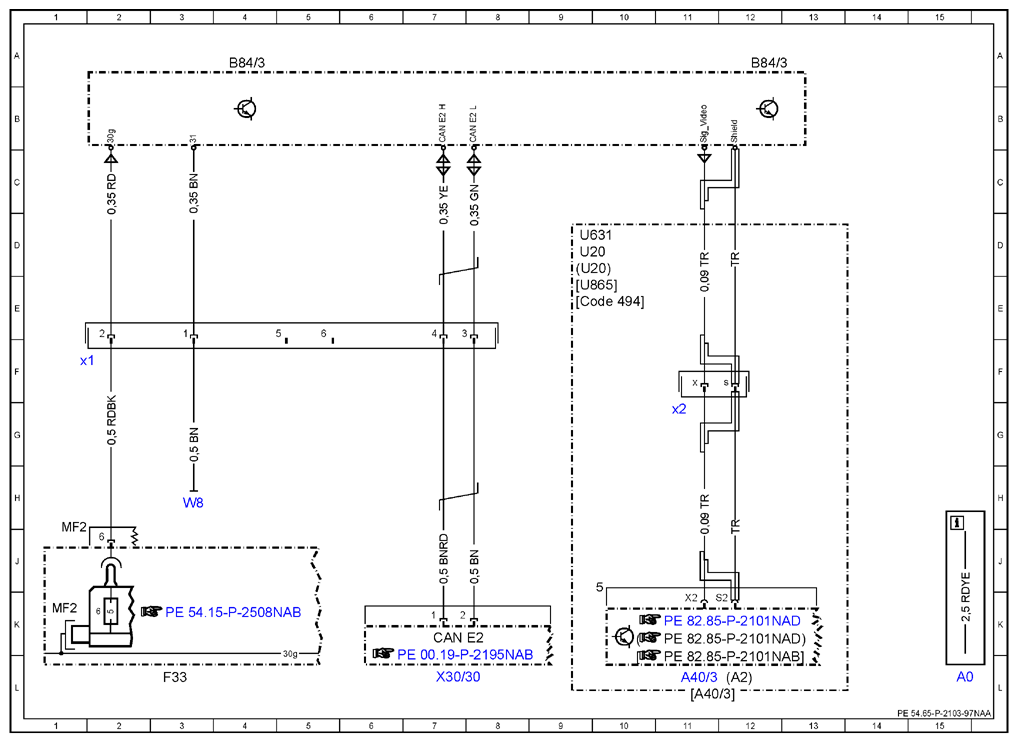

(Wiring Diagram Of Reversing Camera - PE54.65-P-2103-97NAA)
MODEL 166
Up To Model Year 2016
With Code 218 (Rear View Camera)
Without Code 498 (Japanese Version) Reversing Camera B84/3
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 15L |
| A2 | Radio | 12L |
| A40/3 | COMAND control unit | 11L |
| A40/3 | COMAND control unit | 11L |
| B84/3 | Backup camera | 12A |
| B84/3 | Backup camera | 4A |
| B84/3x1 | Backup camera electrical connector | 1F |
| B84/3x2 | Reversing camera electrical connector 2 | 11G |
| CAN E2 | Chassis CAN 2 | 7K |
| Code 494 | USA vers ion | 9E |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 9D |
| U20 | Valid for all (except {{USA}} {{Japan}}) | 9D |
| U631 | Valid for COMAND | 9D |
| U865 | Valid for Audio 20 | 9E |
| W8 | Liftgate ground point | 3H |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
