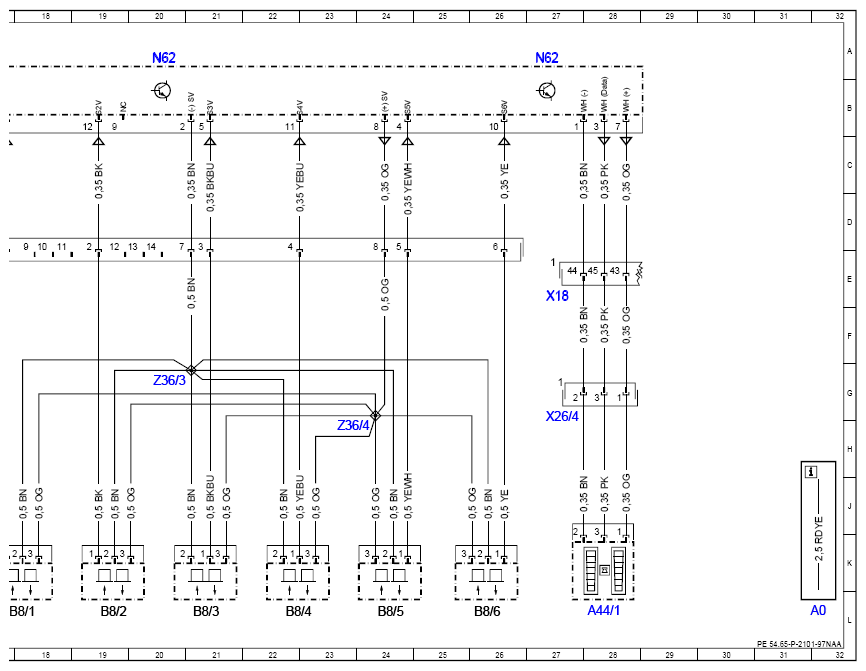

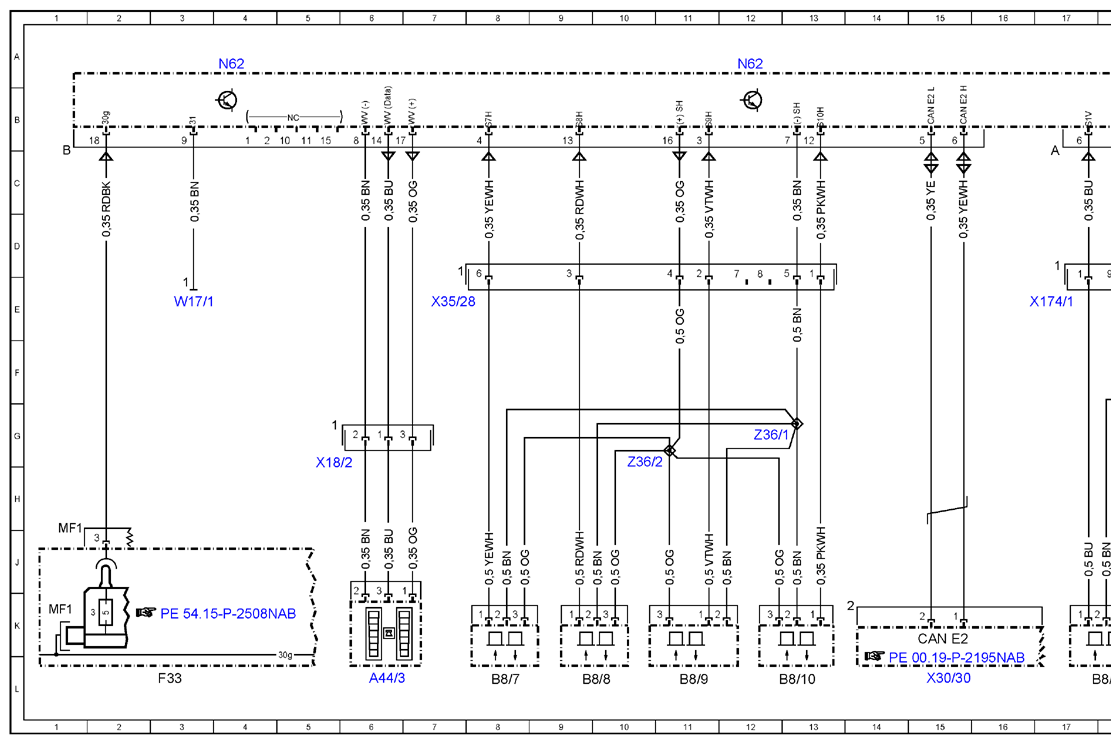

(Wiring Diagram For Parktronic System (PTS) Control Unit - PE54.65-P-2101-97NAA)
MODEL 166
Up To Model Year 2016
With Code 220 (PARKTRONIC system (PTS))
With Code 235 (Active Parking Assist) Control Unit N62
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 32L |
| A44/1 | Front parking system warning indicator | 28L |
| A44/3 | Rear parking system warning indicator | 6L |
| B8/1 | Outer left front parking system distance sensor | 18L |
| B8/10 | Outer left rear parking system distance sensor | 13L |
| B8/2 | Center left front parking system distance sensor | 19L |
| B8/3 | Inner left front parking system distance sensor | 21L |
| B8/4 | Inner right front parking system distance sensor | 22L |
| B8/5 | Center right front parking system distance sensor | 24L |
| B8/6 | Outer right front parking system distance sensor | 26L |
| B8/7 | Outer right rear parking system distance sensor | 8L |
| B8/8 | Inner right rear parking system distance sensor | 9L |
| B8/9 | Inner left rear parking system distance sensor | 11L |
| CAN E2 | Chassis CAN 2 | 15K |
| F33 | Battery compartment prefuse box | 3L |
| F33MF1 | Multiple fuse 1 | 1K |
| N62 | Parking system control unit | 4A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 20A |
| N62 | Parking system control unit | 27A |
| W17/1 | Left rear seat ground point | 3E |
| X174/1 | Vehicle interior/front bumper electrical connector | 17E |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 27E |
| X18/2 | Vehicle interior/roof electrical connector | 5H |
| X26/4 | Cockpit adapter wiring harness electrical connector | 27H |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 15L |
| X35/28 | Rear bumper parking system electrical connector | 7E |
| Z36/1 | Rear parking system sensors ground line connector sleeve | 12G |
| Z36/2 | Rear parking system sensors positive line connector sleeve | 10G |
| Z36/3 | Front parking system sensors ground line connector sleeve | 20G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 23H |
