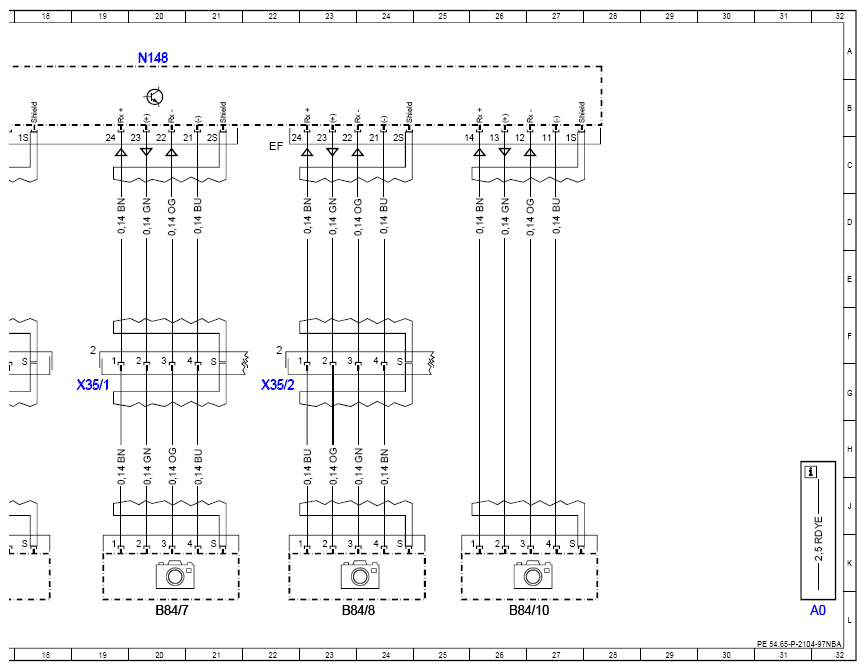

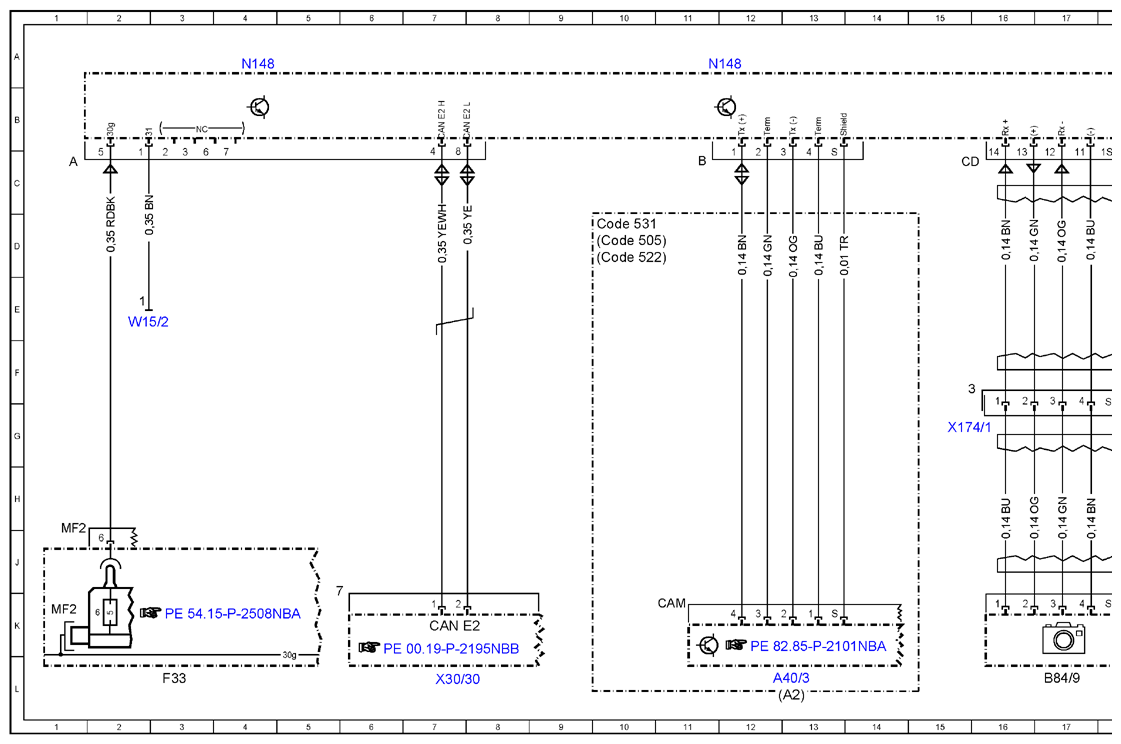

Wiring Diagram For 360° Camera Control Unit - PE54.65-P-2104-97NBA
MODEL 166
As Of Model Year 2016
With Code 501 (360° Camera)
Control Unit N148
MODEL 292
With Code 501 (360° Camera)
Control Unit N148
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 32L |
| A2 | Radio | 13L |
| A40/3 | COMAND control unit | 13L |
| B84/10 | Rear end 360° camera | 26L |
| B84/7 | Left side 360° camera | 20L |
| B84/8 | Right side 360° camera | 23L |
| B84/9 | Front end 360° camera | 17L |
| CAN E2 | Chassis CAN 2 | 7K |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 10D |
| Code 522 | Audio 20 radio | 10D |
| Code 531 | COMAND APS | 10D |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| N148 | 360° camera control unit | 4A |
| N148 | 360° camera control unit | 11A |
| N148 | 360° camera control unit | 20A |
| W15/2 | Left footwell ground point | 2E |
| X174/1 | Vehicle interior/front bumper electrical connector | 15G |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
| X35/1 | Left front door electrical connector | 19G |
| X35/2 | Right front door electrical connector | 22G |
