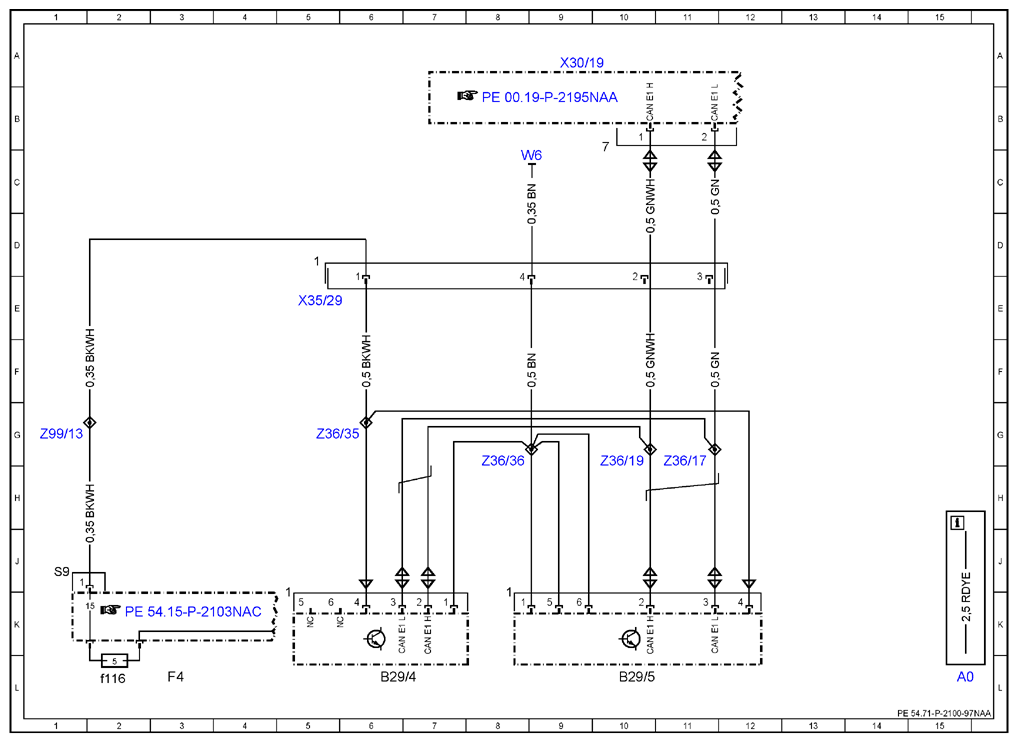

(Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97NAA)
MODEL 166
Up To Model Year 2016
With Code 234 (Blind Spot Monitoring) B29/4, B29/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| B29/4 | Left rear bumper intelligent radar sensor | 6L |
| B29/5 | Right rear bumper intelligent radar sensor | 10L |
| F4 | Rear fuse box | 3L |
| F4f116 | Fuse 116 | 2L |
| W6 | Inner left D-pillar ground point | 8C |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 9A |
| X35/29 | Rear bumper interior Blind Spot Monitoring electrical connector | 5E |
| Z36/17 | Rear sensor CAN (low) connector sleeve | 11G |
| Z36/19 | Rear sensor CAN (high) connector sleeve | 10G |
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | 5G |
| Z36/36 | Rear radar sensors sensor ground connector sleeve | 8G |
| Z99/13 | Radar sensors control unit circuit 87 connector sleeve | 1G |
