Wiring Diagram Rear Control Unit - PE54.21-P-2110-97NBA
Model 166 as of model year 2016

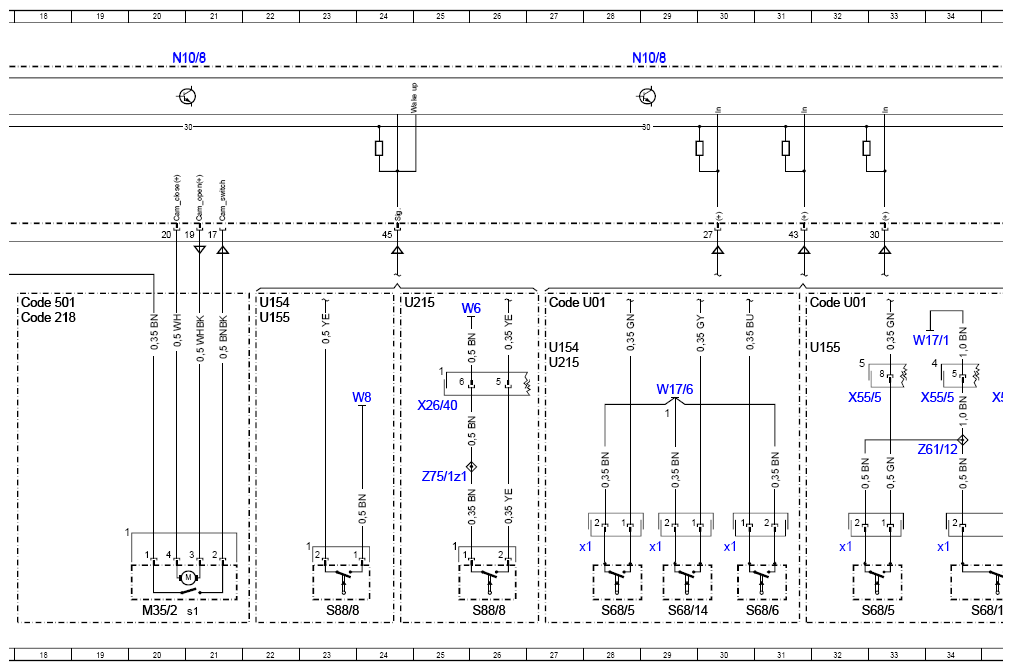

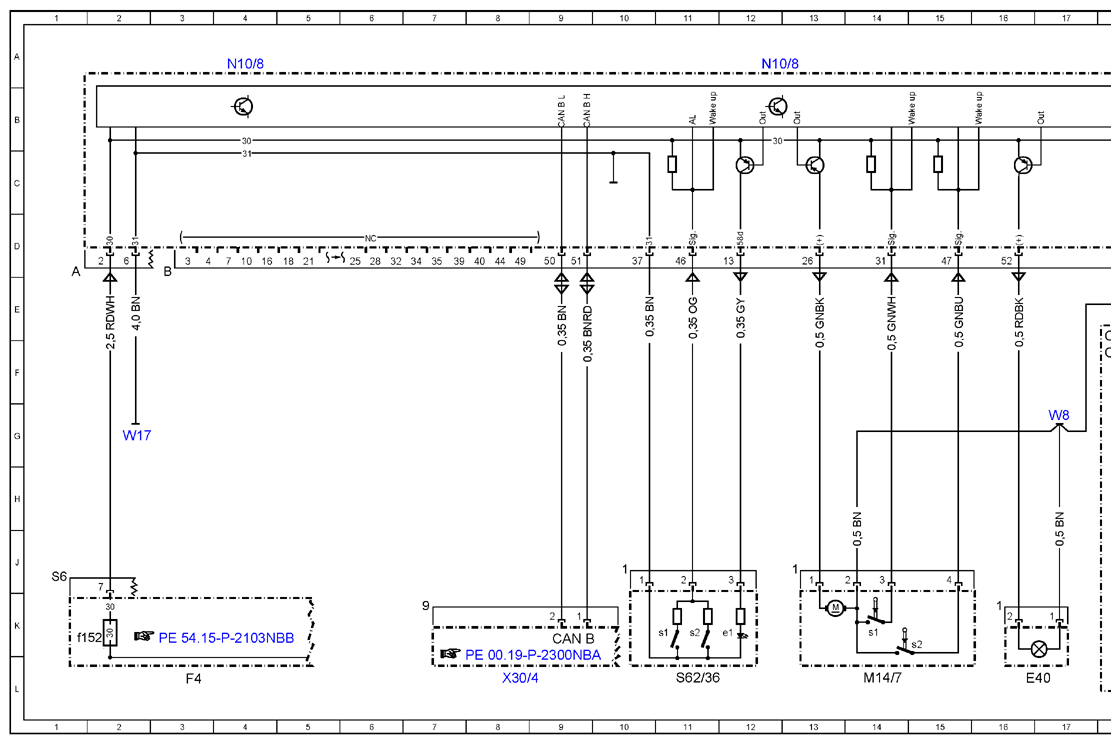

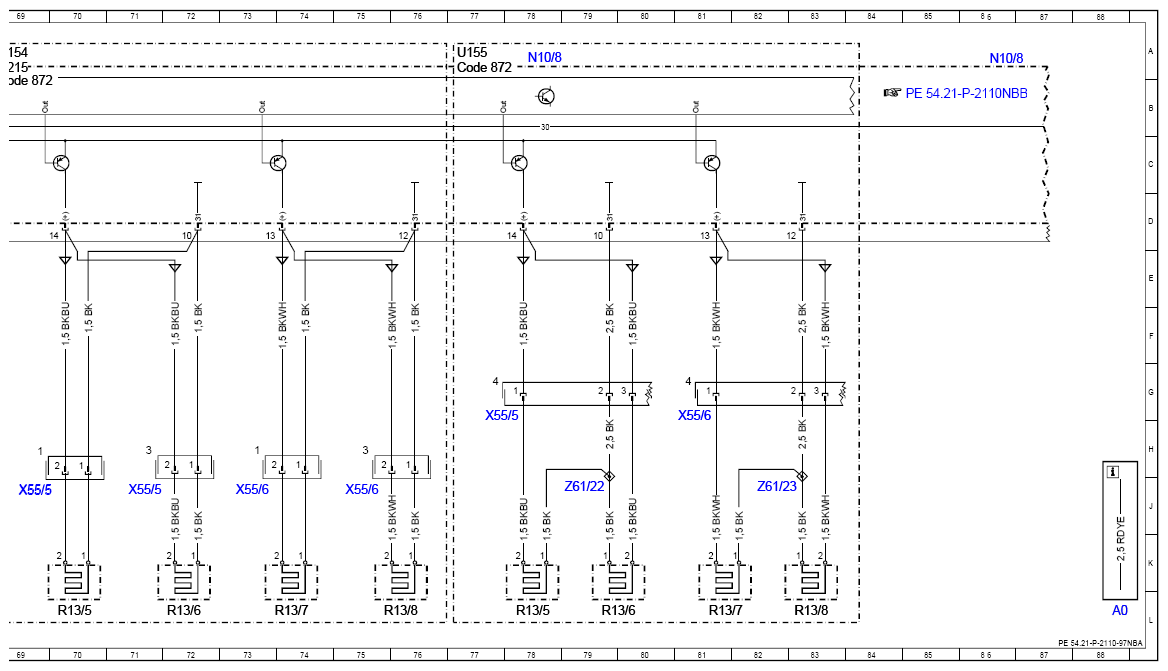

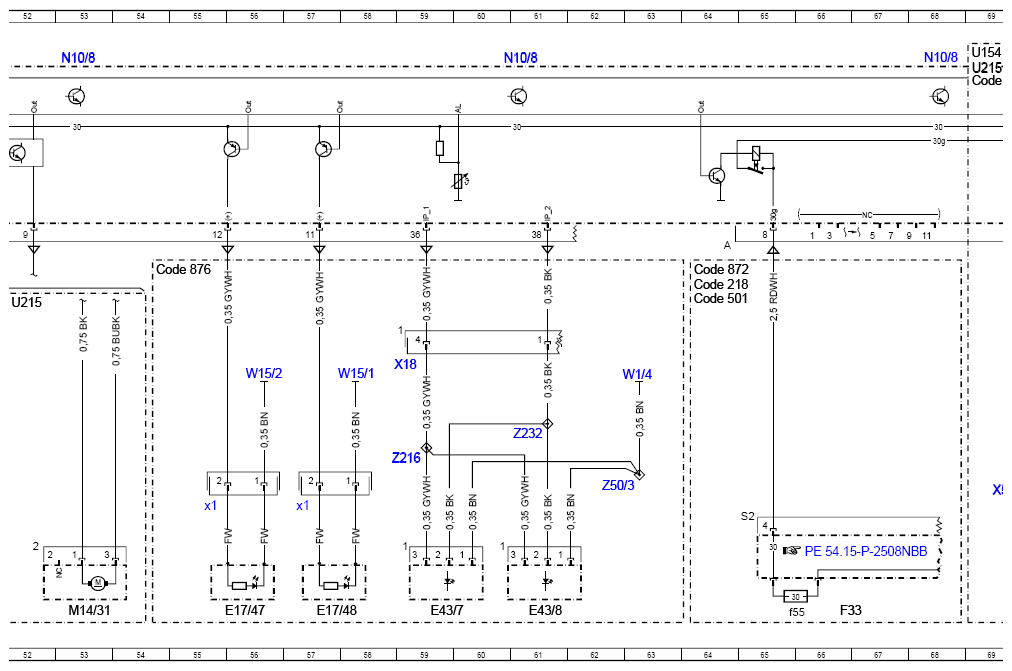

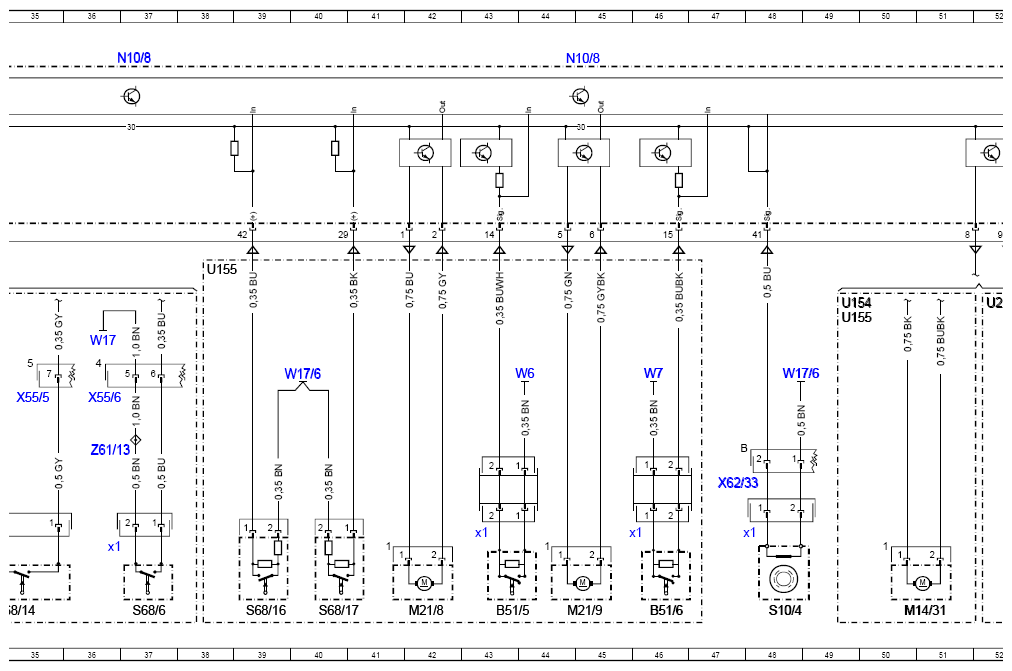

Control unit N10/8, sheet 1
Model 292 Control unit N10/8, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 88L |
| B51/5 | Left pop-out window anti-pinch protection contact strip | 43L |
| B51/5x1 | Left pop-out window anti-pinch protection contact strip electrical connector | 43K |
| B51/6 | Right pop-out window anti-pinch protection contact strip | 46L |
| B51/6x1 | Right pop-out window anti-pinch protection contact strip electrical connector | 46K |
| CAN B | Interior CAN | 9K |
| Code 218 | Backup camera | 18F |
| Code 218 | Backup camera | 64E |
| Code 501 | 360 degree camera | 18F |
| Code 501 | 360 degree camera | 64E |
| Code 872 | Left and right rear seat heaters | 64E |
| Code 872 | Left and right rear seat heaters | 69B |
| Code 872 | Left and right rear seat heaters | 77A |
| Code 876 | Interior Lights package | 54E |
| Code U01 | Rear seat belt status indicator in instrument cluster | 27F |
| Code U01 | Rear seat belt status indicator in instrument cluster | 31F |
| E17/47 | Left front illuminated door sill molding | 56L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 55J |
| E17/48 | Right front illuminated door sill molding | 57L |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 57J |
| E40 | Tailgate ambient lamp | 16L |
| E43/7 | Driver-side instrument panel ambiance illumination | 59L |
| E43/8 | Passenger-side instrument panel ambiance illumination | 61L |
| F33 | Battery compartment prefuse box | 66L |
| F33f55 | Fuse 55 | 65L |
| F4 | Rear fuse box | 3L |
| F4f152 | Fuse 152 | 2K |
| M14/31 | Tailgate locking element | 50L |
| M14/31 | Tailgate locking element | 53L |
| M14/7 | Tailgate central locking motor | 14L |
| M14/7s1 | Tailgate rotary tumbler switch | 14K |
| M14/7s2 | Liftgate locking pawl switch | 15K |
| M21/8 | Left vent window motor | 42L |
| M21/9 | Right vent window motor | 45L |
| M35/2 | Rear camera cover motor | 20L |
| M35/2s1 | Rear camera cover motor switch | 21L |
| N10/8 | Rear control unit | 44A |
| N10/8 | Rear control unit | 4A |
| N10/8 | Rear control unit | 12A |
| N10/8 | Rear control unit | 20A |
| N10/8 | Rear control unit | 29A |
| N10/8 | Rear control unit | 37A |
| N10/8 | Rear control unit | 53A |
| N10/8 | Rear control unit | 61A |
| N10/8 | Rear control unit | 68A |
| N10/8 | Rear control unit | 86A |
| N10/8 | Rear control unit | 78A |
| R13/5 | Left rear seat sitting surface heated cushion | 70L |
| R13/5 | Left rear seat sitting surface heated cushion | 78L |
| R13/6 | Left rear backrest heated cushion | 72L |
| R13/6 | Left rear backrest heated cushion | 79L |
| R13/7 | Right rear seat sitting surface heated cushion | 74L |
| R13/7 | Right rear seat sitting surface heated cushion | 81L |
| R13/8 | Right rear backrest heater pad | 76L |
| R13/8 | Right rear backrest heater pad | 83L |
| S10/4 | Right rear brake wear sensor | 48L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 48K |
| S62/36 | Tailgate control button | 11L |
| S62/36e1 | Liftgate control button symbol illumination | 12K |
| S62/36s1 | Close liftgate button | 11K |
| S62/36s2 | Close and lock liftgate button | 11K |
| S68/14 | Center rear seat belt buckle switch | 29L |
| S68/14 | Center rear seat belt buckle switch | 34L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 29K |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 34K |
| S68/16 | Left third row seat belt buckle switch | 39L |
| S68/17 | Right third row seat belt buckle switch | 40L |
| S68/5 | Left rear seat belt buckle switch | 28L |
| S68/5 | Left rear seat belt buckle switch | 33L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 28K |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 32K |
| S68/6 | Right rear seat belt buckle switch | 31L |
| S68/6 | Right rear seat belt buckle switch | 37L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 30K |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 36K |
| S88/8 | Tailgate external operation switch | 23L |
| S88/8 | Tailgate external operation switch | 26L |
| U154 | Valid for 166.0 | 27F |
| U154 | Valid for 166.0 | 22F |
| U154 | Valid for 166.0 | 49F |
| U154 | Valid for 166.0 | 69A |
| U155 | Valid for 166.8 | 31F |
| U155 | Valid for 166.8 | 22F |
| U155 | Valid for 166.8 | 38E |
| U155 | Valid for 166.8 | 49F |
| U155 | Valid for 166.8 | 77A |
| U215 | Valid for model series 292 | 27G |
| U215 | Valid for model series 292 | 24F |
| U215 | Valid for model series 292 | 52F |
| U215 | Valid for model series 292 | 69A |
| W1/4 | Cockpit ground point | 63G |
| W15/1 | Right footwell ground point | 58G |
| W15/2 | Left footwell ground point | 56G |
| W17 | Right rear seat ground point | 36F |
| W17 | Right rear seat ground point | 2G |
| W17/1 | Left rear seat ground point | 33F |
| W17/6 | Rear seat crossmember ground point | 29G |
| W17/6 | Rear seat crossmember ground point | 40G |
| W17/6 | Rear seat crossmember ground point | 48G |
| W6 | Inner left D-pillar ground point | 44G |
| W6 | Inner left D-pillar ground point | 25F |
| W7 | Right rear center section ground point | 46G |
| W8 | Liftgate ground point | 17G |
| W8 | Liftgate ground point | 24G |
| X18 | Vehicle interior and harness for tail lamp electrical connector | 59G |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 25G |
| X30/4 | Right potential distributor electrical connector (CAN) | 8L |
| X55/5 | Left rear seat adjustment unit connector block | 32G |
| X55/5 | Left rear seat adjustment unit connector block | 34G |
| X55/5 | Left rear seat adjustment unit connector block | 35G |
| X55/5 | Left rear seat adjustment unit connector block | 69J |
| X55/5 | Left rear seat adjustment unit connector block | 71J |
| X55/5 | Left rear seat adjustment unit connector block | 77G |
| X55/6 | Right rear seat adjustment unit connector block | 36G |
| X55/6 | Right rear seat adjustment unit connector block | 73J |
| X55/6 | Right rear seat adjustment unit connector block | 75J |
| X55/6 | Right rear seat adjustment unit connector block | 81G |
| X62/33 | Rear axle electrical connector, right distributor | 47J |
| Z216 | Multi-color ambiance illumination connector sleeve | 59H |
| Z232 | Ambiance illumination connector sleeve | 61H |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 62J |
| Z61/12 | Left circuit 31 2nd seat row connector sleeve | 34H |
| Z61/13 | Right circuit 31 2nd seat row connector sleeve | 36H |
| Z61/22 | Left 2nd seat row seat heater ground line connector sleeve | 79J |
| Z61/23 | Right 2nd seat row seat heater ground line connector sleeve | 82J |
| Z75/1z1 | License plate lamp connector sleeve | 25J |
