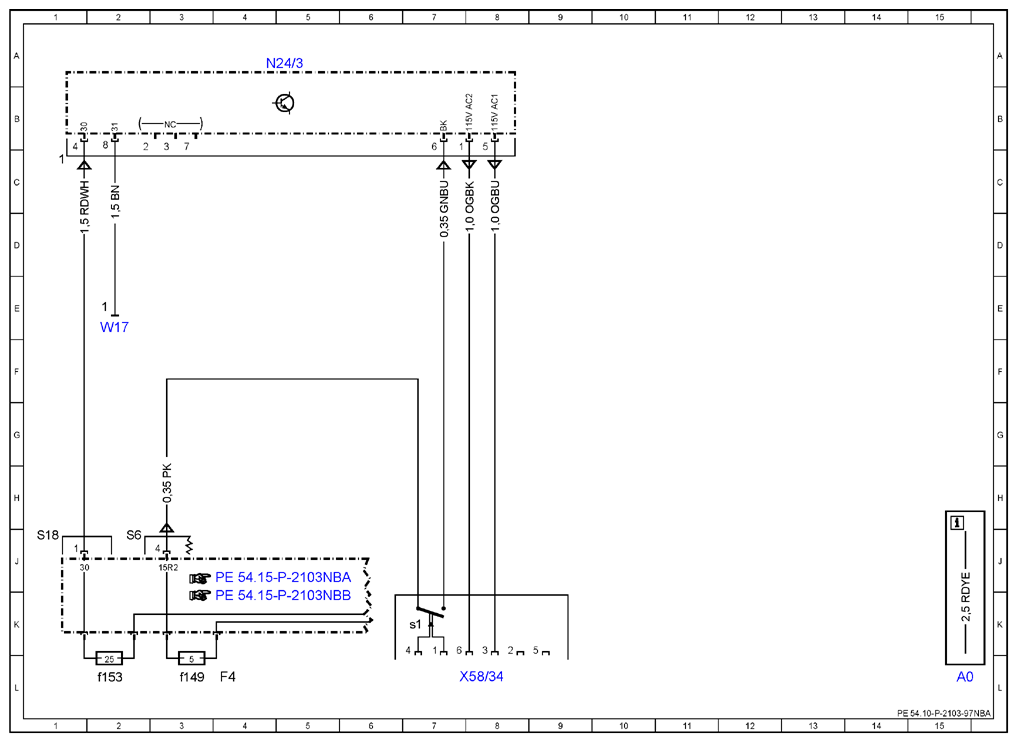

Wiring Diagram Control Unit DC/AC Converter - PE54.10-P-2103-97NBA
MODEL 166 as of model year 2016 with CODE U80 (115 V socket) Control unit N24/3
MODEL 292 with CODE U80 (115 V socket) Control unit N24/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| F4 | Rear fuse box | 4L |
| F4f149 | Fuse 149 | 3L |
| F4f153 | Fuse 153 | 2L |
| N24/3 | DC/AC converter control unit | 5A |
| W17 | Right rear seat ground point | 2E |
| X58/34 | 115 V socket | 8L |
| X58/34s1 | Socket microswitch | 7K |
