(Remove/Install Park Pawl Battery - AR54.10-P-0121GQ)
Model 166
up to model year 2016
except code B03 (ECO start/stop function)
except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Shown on model 166.024
| Risk of fire/risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30 V AC and U >= 60 V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2.1 | Remove right side of panel in trunk | Model 166.0 up to model year 2016 except code B03 (ECO start/stop function) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | AR68.30-P-4800GQ |
| 2.2 | Remove spare tire well panel | Model 166.8 up to model year 2016 except code B03 (ECO start/stop function) except code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | AR68.30-P-4620GQ |

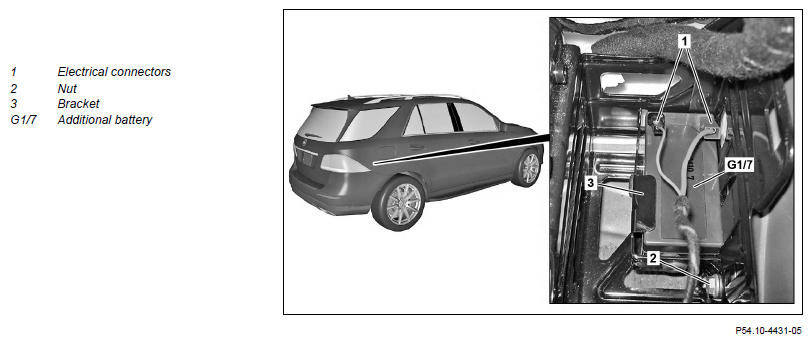

| 3 | Separate electrical connections (1) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Remove holder (3) | ||
| 6 | Remove additional battery (G17) | ||
| 7 | Install in the reverse order |
