(Remove/Install Additional Battery - AR54.10-P-0007GQX)
Model 166.8
up to model year 2016
with code B03 (ECO start/stop function)

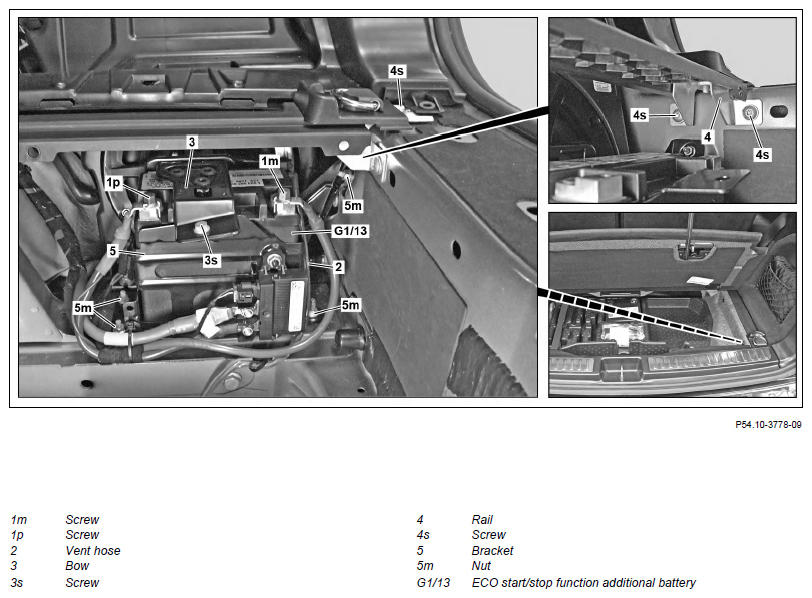

Shown on model 166.873
| Remove/install | |||
| 1 | Detach ground line from on-board electrical system battery | AR54.10-P-0003GZ | |
| 2 | Remove spare tire well panel | AR68.30-P-4620GQ | |
| 3 | Remove bolt (1m) and detach ground line from additional battery for ECO start/stop function (G1/13) | *BA54.10-P-1013-01C | |
| 4 | Remove bolt (1p) and detach positive line from additional battery for ECO start/stop function (G1/13) | *BA54.10-P-1013-01C | |
| 5 | Detach bleed hose (2) from additional battery for ECO start/stop function (G1/13) | ||
| 6 | Remove bolt (3s) and remove bracket (3) | ||
| 7 | Loosen bolts (4s) by several turns | ||
| 8 | Unscrew nuts (5m) | ||
| 9 | Lift rail (4) and place bracket (5) with additional battery for ECO start/stop function (G1/13) into spare wheel well | ||
| 10 | Remove additional battery for ECO start/stop function (G1/13) from bracket (5) | ||
| 11 | Install in the reverse order |
BATTERY
| Number | Designation | Model 166 | ||
|---|---|---|---|---|
| BA54.10-P-1013-01C | Screw/bolt, battery cable to battery terminal for additional battery | M6 | Nm | 6 |
