Wiring Diagram Of HERMES Control Unit - PE82.85-P-2107-97NBA
Model 166 as of model year 2016
with code 360 (HERMES UMTS)
with code 362 (HERMES communications module LTE) Control unit N112/9
Model 292
with code 360 (HERMES UMTS)
with code 362 (HERMES communications module LTE) Control unit N112/9
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| A2/128 | USB splitter | 31L |
| A2/23 | GPS antenna (retrofit) | 35L |

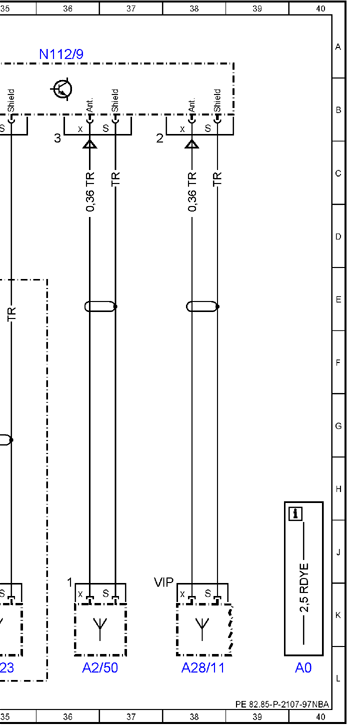

| A2/50 | TELEAID backup antenna | 36L |
| A28/11 | Multifunction antenna | 38L |
| A40/3 | COMAND control unit | 22L |
| A40/3 | COMAND control unit | 26L |
| A40/3 | COMAND control unit | 31L |
| CAN L | Hybrid CAN | 11K |
| Code 360 | HERMES UMTS | 33E |
| Code 360 | HERMES UMTS | 29E |
| Code 367 | Live Traffic Information | 29E |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 33E |
| Code 522 | Audio 20 radio | 29E |
| Code 810 | Sound system | 19E |
| Code 810 | Sound system | 25E |
| Code 810 | Sound system | 19E |
| Code 811 | Extended sound system | 19E |
| Code 811 | Extended sound system | 19F |
| Code 811 | Extended sound system | 25E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 9E |
| F33 | Battery compartment prefuse box | 3L |
| F33f50 | Fuse 50 | 2L |
| H4/27 | Center instrument panel speaker | 18L |

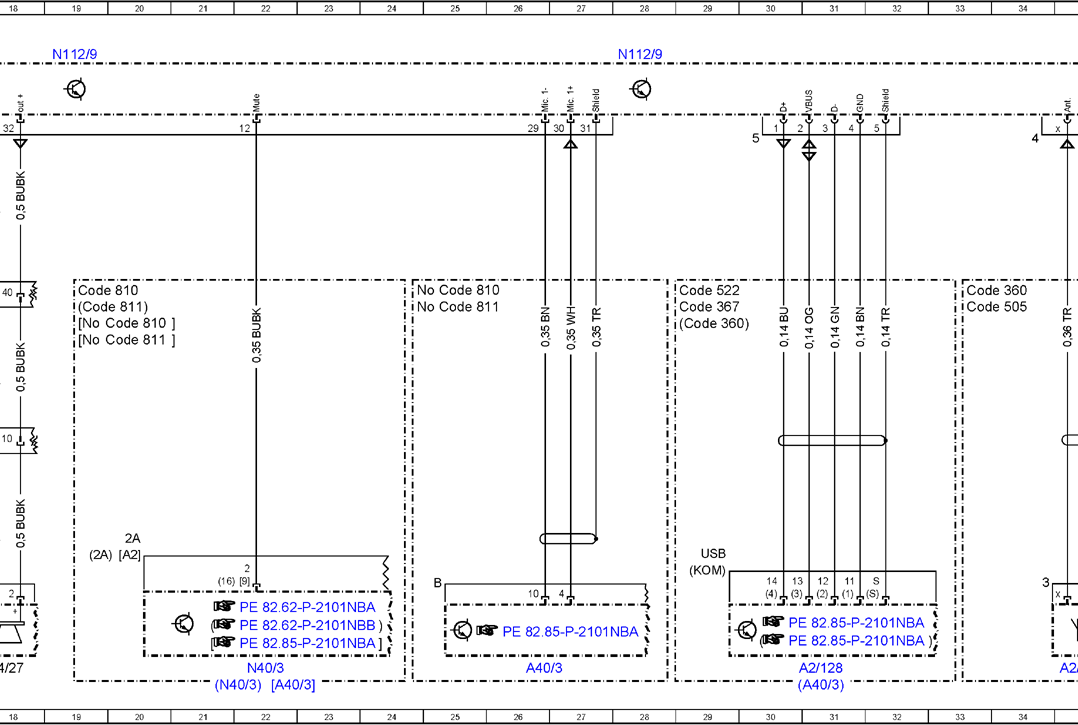

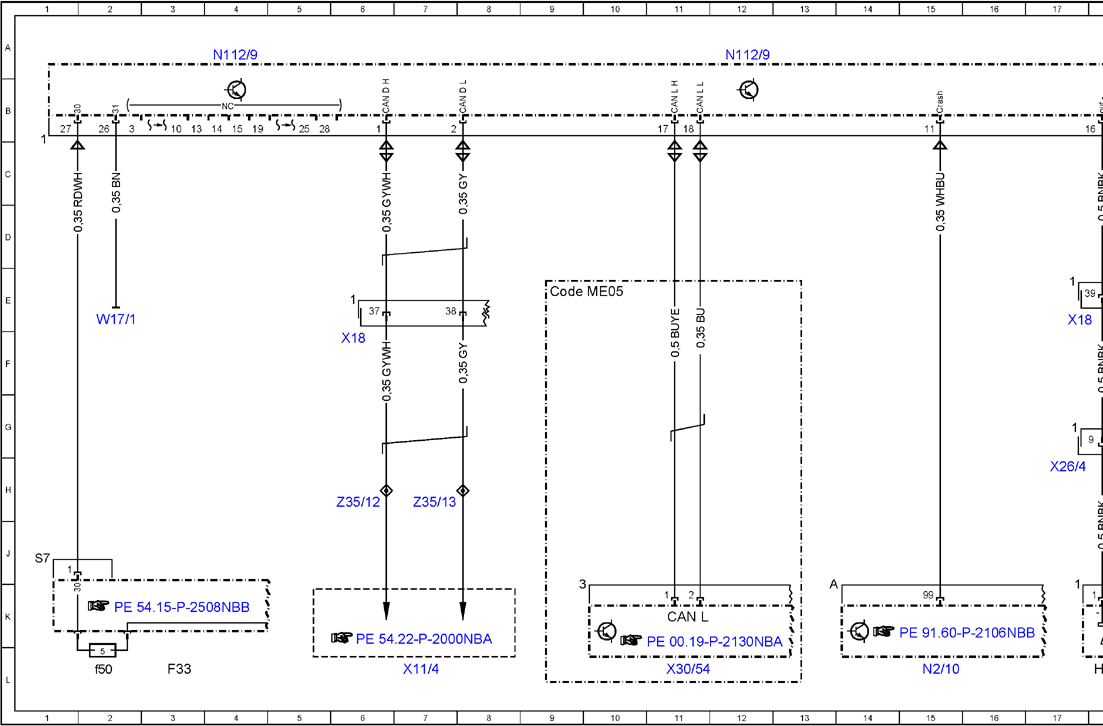

| N112/9 | HERMES control unit | 4A |
| N112/9 | HERMES control unit | 19A |
| N112/9 | HERMES control unit | 28A |
| N112/9 | HERMES control unit | 36A |
| N112/9 | HERMES control unit | 12A |
| N2/10 | Supplemental restraint system control unit | 15L |
| N40/3 | Sound system amplifier control unit | 21L |
| N40/3 | Sound system amplifier control unit | 22L |
| W17/1 | Left rear seat ground point | 2E |
| X11/4 | Diagnostic connector | 7L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 6F |
| X18 | Vehicle interior and harness for taillamp electrical connector | 17E |
| X26/4 | Cockpit adapter wiring harness electrical connector | 17H |
| X30/54 | Rear hybrid CAN (CAN L) potential distributor electrical connector | 11L |
| Z35/12 | Diagnostic CAN low connector sleeve | 6H |
| Z35/13 | Diagnostic CAN high connector sleeve | 7H |
