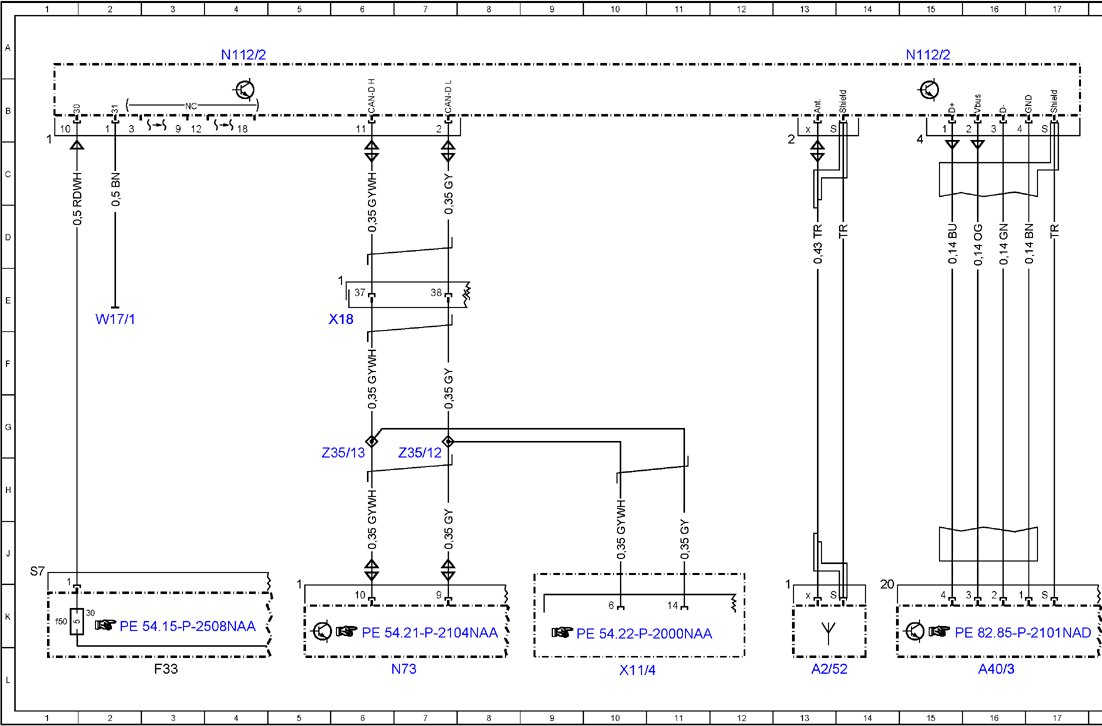

(Wiring Diagram For Telematics Services Communications Module Control Unit - PE82.85-P-2105-97NAA)
MODEL 166 up to model year 2016
with CODE B54 (COM module) Control unit N112/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| A2/52 | Emergency call system antenna | 13L |
| A40/3 | COMAND control unit | 16L |
| F33 | Battery compartment prefuse box | 3L |
| F33f50 | Fuse 50 | 1K |
| N112/2 | Telematics services communication module | 4A |
| N112/2 | Telematics services communication module | 15A |
| N73 | Electronic ignition switch control unit | 7L |
| W17/1 | Left rear seat ground point | 2E |
| X11/4 | Diagnostic connector | 10L |
| X18 | Vehicle interior and harness for taillamp electrical connector | 6E |
| Z35/12 | Diagnostic CAN low connector sleeve | 7G |
| Z35/13 | Diagnostic CAN high connector sleeve | 6G |
