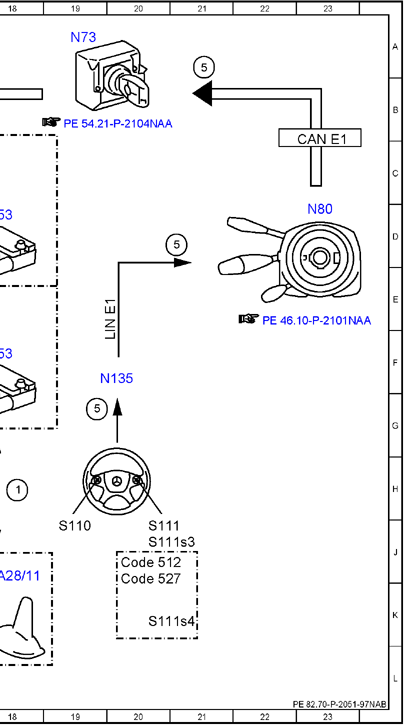

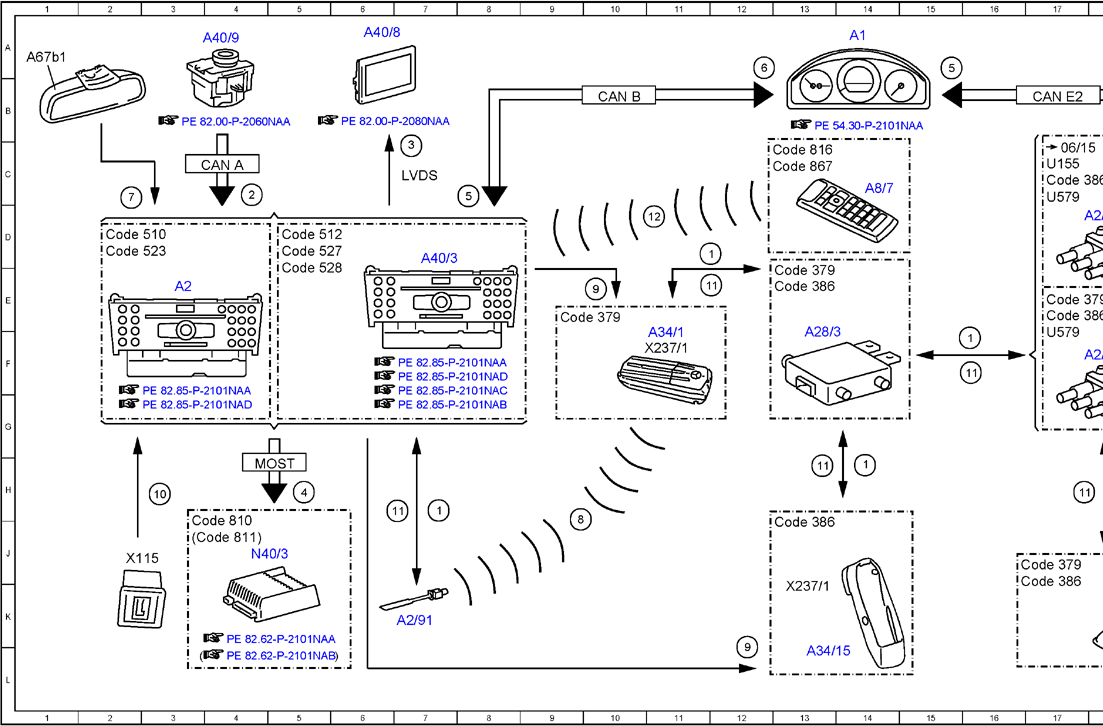

(Electrical Function Schematic For Cellular Phone - PE82.70-P-2051-97NAB)
MODEL 166 as of model year 2014 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Telephone, signal | 7H |
| 1 | Telephone, signal | 14H |
| 1 | Telephone, signal | 18H |
| 1 | Telephone, signal | 11D |
| 1 | Telephone, signal | 16F |
| 10 | Address data, signal | 3H |
| 11 | Internet, signal | 11E |
| 11 | Internet, signal | 7H |
| 11 | Internet, signal | 13H |
| 11 | Internet, signal | 16F |
| 11 | Internet, signal | 17H |
| 12 | Operation, signal | 11D |
| 2 | Audio/COMAND controller, request | 4C |
| 3 | Audio/COMAND display, signal | 7C |
| 4 | Sound system amplifier, actuation | 5H |
| 5 | Multifunction steering wheel button group, signal | 19G |
| 5 | Multifunction steering wheel button group, signal | 15A |
| 5 | Multifunction steering wheel button group, signal | 8C |
| 5 | Multifunction steering wheel button group, signal | 21D |
| 5 | Multifunction steering wheel button group, signal | 21A |
| 6 | Instrument cluster, message | 12A |
| 7 | Voice input, signal | 2C |
| 8 | Bluetooth®, signal | 9J |
| 9 | Switch-on request, signal | 12L |
| 9 | Switch-on request, signal | 10E |
| A1 | Instrument cluster | 14A |
| A2 | Radio | 3E |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 18F |
| A2/53 | Mobile phone and stationary heater radio remote control antenna splitter | 18D |
| A2/91 | Bluetooth® antenna | 7K |
| A28/11 | Multifunction antenna | 18J |
| A28/3 | Cellular telephone system antenna amplifier/compensator | 13F |
| A34/1 | Telephone module with Bluetooth® (SAP profile) | 11F |
| A34/15 | Mobile phone holder | 13L |
| A40/3 | COMAND control unit | 7D |
| A40/8 | Audio/COMAND display | 6A |
| A40/9 | Audio/COMAND control panel | 3A |
| A8/7 | Remote control | 14C |
| CAN A | Telematics CAN | 4C |
| CAN B | Interior CAN | 10B |
| CAN E1 | Chassis CAN 1 | 23C |
| CAN E2 | Chassis CAN 2 | 17B |
| Code 379 | Telephone module with Bluetooth SAP | 16J |
| Code 379 | Telephone module with Bluetooth SAP | 9E |
| Code 379 | Telephone module with Bluetooth SAP | 13E |
| Code 379 | Telephone module with Bluetooth SAP | 17E |
| Code 386 | Comfort telephony | 13J |
| Code 386 | Comfort telephony | 16K |
| Code 386 | Comfort telephony | 13E |
| Code 386 | Comfort telephony | 17E |
| Code 386 | Comfort telephony | 17C |
| Code 510 | Audio 20 with CD changer | 2D |
| Code 512 | COMAND APS with DVD changer | 20J |
| Code 512 | COMAND APS with DVD changer | 5D |
| Code 523 | Audio 20 radio | 2D |
| Code 527 | COMAND APS (with navigation) | 20K |
| Code 527 | COMAND APS (with navigation) | 5D |
| Code 528 | COMAND with DVD changer | 5E |
| Code 810 | Sound system | 3J |
| Code 811 | Extended sound system | 3J |
| Code 816 | Entertainment remote control | 12C |
| Code 867 | SPLITVIEW | 12C |
| LIN E1 | Steering LIN | 19E |
| LVDS | Low voltage differential signal | 7C |
| MOST | Media Oriented System Transport | 5H |
| N135 | Steering wheel electronics | 19F |
| N40/3 | Sound system amplifier control unit | 4J |
| N73 | Electronic ignition switch control unit | 19A |
| N80 | Steering column module control unit | 23D |
| S110 | Left multifunction steering wheel button group | 19J |
| S111 | Right multifunction steering wheel button group | 20J |
| S111s3 | Accept/terminate phone call button | 20J |
| S111s4 | Voice control system ON button | 20K |
| U155 | Valid for 166.8 | 17C |
| U579 | Valid for stationary heater | 17F |
| U579 | Valid for stationary heater | 17C |
| X115 | USB electrical connector | 2J |
| X237/1 | Mobile phone contact plate | 13K |
| X237/1 | Mobile phone contact plate | 11F |
