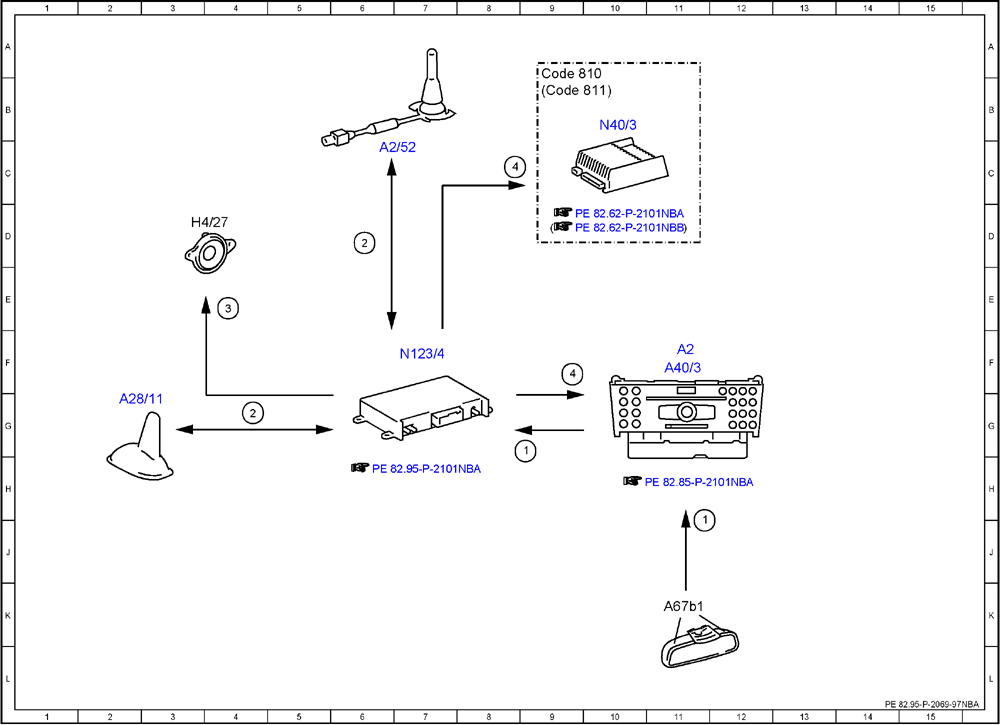

Electrical Function Diagram For Voice Connection Between Vehicle And Service Center, Function - PE82.95-P-2069-97NBA
MODEL 166 as of model year 2016 with CODE 348 (Emergency call/assistant system)
MODEL 292 with CODE 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Voice input, signal | 9G |
| 1 | Voice input, signal | 11J |
| 2 | Telephone, signal | 4G |
| 2 | Telephone, signal | 6D |
| 3 | Voice output, signal | 4E |
| 4 | Mute, signal | 8C |
| 4 | Mute, signal | 9F |
| A2 | Radio | 11F |
| A2/52 | Emergency call system antenna | 6C |
| A28/11 | Multifunction antenna | 2G |
| A40/3 | COMAND control unit | 11F |
| A67b1 | Hands-free system microphone group | 11K |
| Code 810 | Sound system | 9B |
| Code 811 | Extended sound system | 9B |
| H4/27 | Center instrument panel speaker | 3D |
| N123/4 | Emergency call system control unit | 7F |
| N40/3 | Sound system amplifier control unit | 10B |
