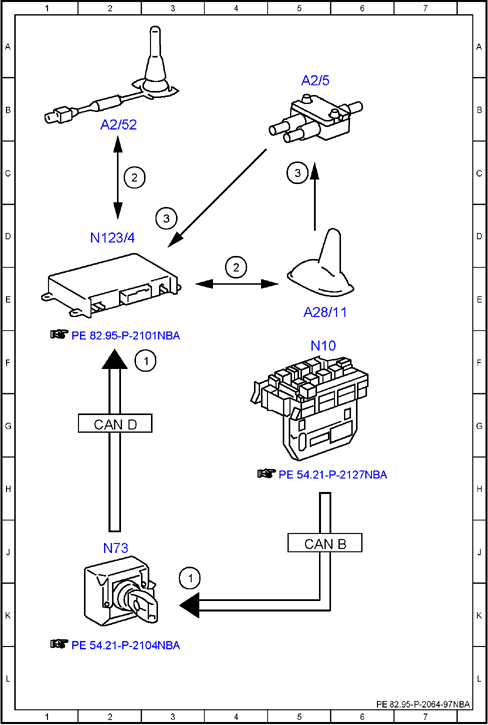

Electrical Function Diagram For Vehicle Location, Function - PE82.95-P-2064-97NBA
MODEL 166 as of model year 2016 with CODE 348 (Emergency call/assistant system)
MODEL 292 with CODE 348 (Emergency call/assistant system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ATA [EDW] alarm, signal | 3F |
| 1 | ATA [EDW] alarm, signal | 3J |
| 2 | Telephone, signal | 2C |
| 2 | Telephone, signal | 4E |
| 3 | GPS, signal | 3D |
| 3 | GPS, signal | 5C |
| A2/5 | Global positioning system antenna splitter | 5B |
| A2/52 | Emergency call system antenna | 2B |
| A28/11 | Multifunction antenna | 5E |
| CAN B | Interior CAN | 5J |
| CAN D | Diagnostic CAN | 2G |
| N10 | SAM control unit | 5F |
| N123/4 | Emergency call system control unit | 2D |
| N73 | Electronic ignition switch control unit | 2J |
