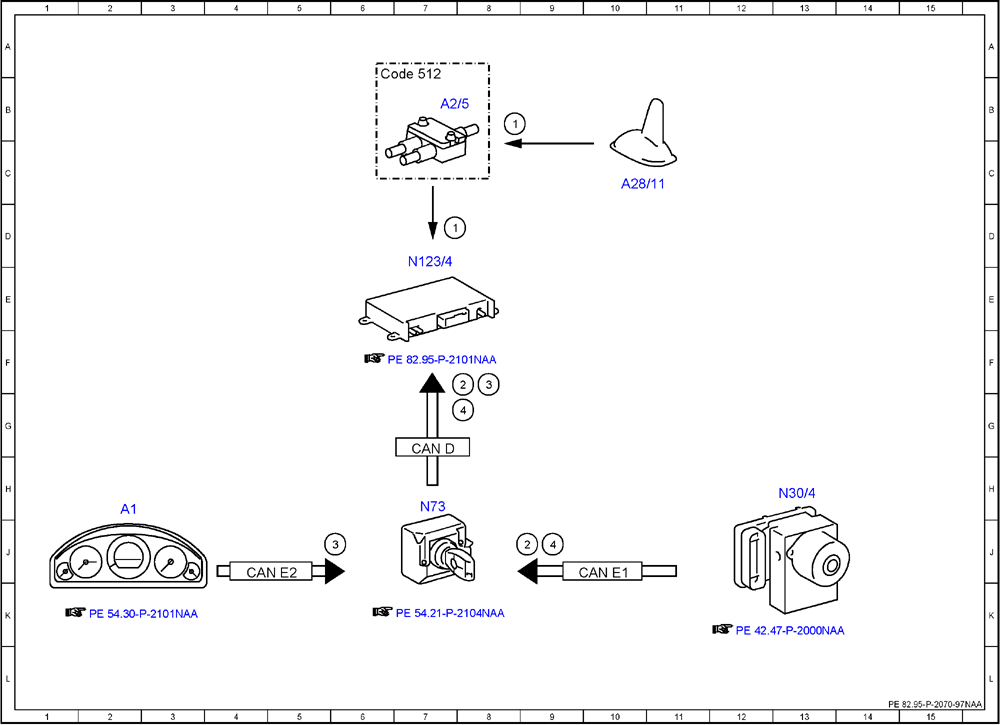

(Electrical Function Diagram For Position Finding, Function - PE82.95-P-2070-97NAA)
MODEL 166 up to model year 2016 with CODE 348 (Emergency call/assistant system)
MODEL 166 up to model year 2016 with CODE 359 (TELE AID emergency call system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | GPS, signal | 8B |
| 1 | GPS, signal | 7D |
| 2 | Wheel speed, signal | 8F |
| 2 | Wheel speed, signal | 9J |
| 3 | Travel distance, signal | 6J |
| 3 | Travel distance, signal | 8F |
| 4 | Direction of travel, signal | 8G |
| 4 | Direction of travel, signal | 9J |
| A1 | Instrument cluster | 2H |
| A2/5 | Global positioning system antenna splitter | 7B |
| A28/11 | Multifunction antenna | 10C |
| CAN D | Diagnostic CAN | 7G |
| CAN E1 | Chassis CAN 1 | 10J |
| CAN E2 | Chassis CAN 2 | 4J |
| Code 512 | COMAND APS with DVD changer | 6B |
| N123/4 | Emergency call system control unit | 7D |
| N30/4 | Electronic Stability Program control unit | 13H |
| N73 | Electronic ignition switch control unit | 7H |
