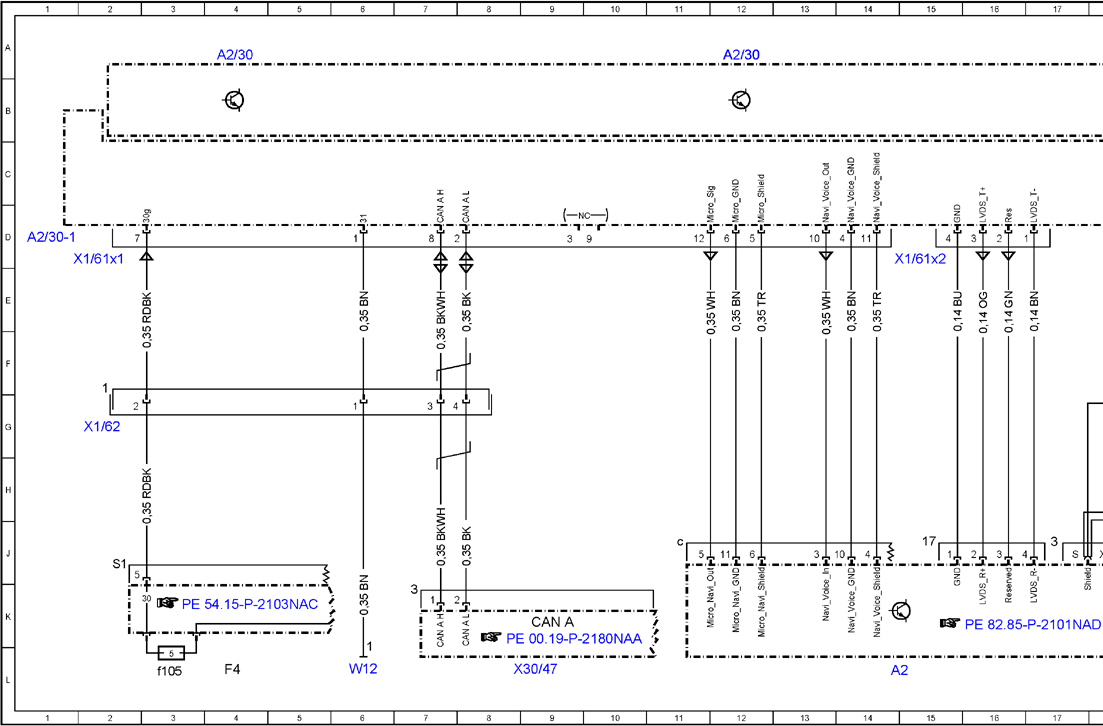

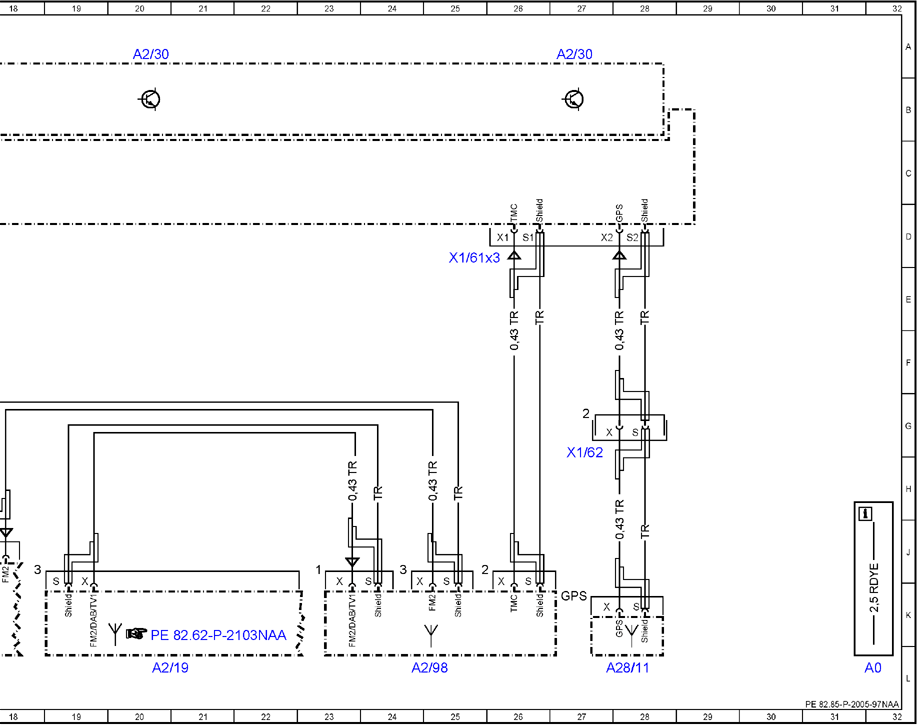

(Wiring Diagram Of Navigation System - PE82.85-P-2005-97NAA)
Model 166 up to model year 2016
with code 508 (Navigation box preinstallation)
with code 509 (Navigation box)
except code 835 (South Korea version) Navigation processor A2/30, bracket for navigation module A2/30-1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| A2 | Radio | 14L |
| A2/19 | FM 2, DAB and TV 1 antenna amplifier | 20L |
| A2/30 | Navigation module | 4A |
| A2/30 | Navigation module | 12A |
| A2/30 | Navigation module | 20A |
| A2/30 | Navigation module | 27A |
| A2/30-1 | Cradle for navigation module | 1D |
| A2/98 | FM/TMC antenna splitter | 24L |
| A28/11 | Multifunction antenna | 28L |
| CAN A | Telematics CAN | 9K |
| F4 | Rear fuse box | 4L |
| F4f105 | Fuse 105 | 3L |
| W12 | Ground point (center console) | 6L |
| X1/61x1 | Electrical connector 1 for navigation module/cradle for navigation module | 2D |
| X1/61x2 | Electrical connector 2 for navigation module/cradle for navigation module | 15D |
| X1/61x3 | Electrical connector 3 for navigation module/cradle for navigation module | 25D |
| X1/62 | Vehicle interior electrical connector for navigation module/cradle for navigation module | 2G |
| X1/62 | Vehicle interior electrical connector for navigation module/cradle for navigation module | 27H |
| X30/47 | Telematics CAN voltage distributor electrical connector | 9L |
