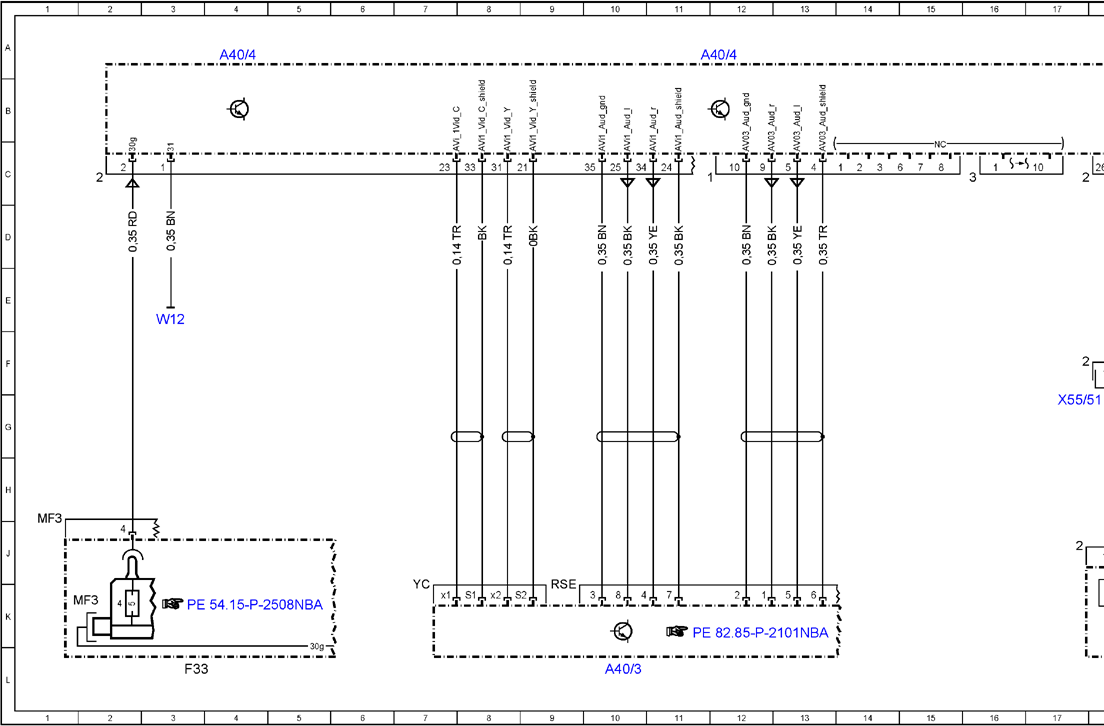

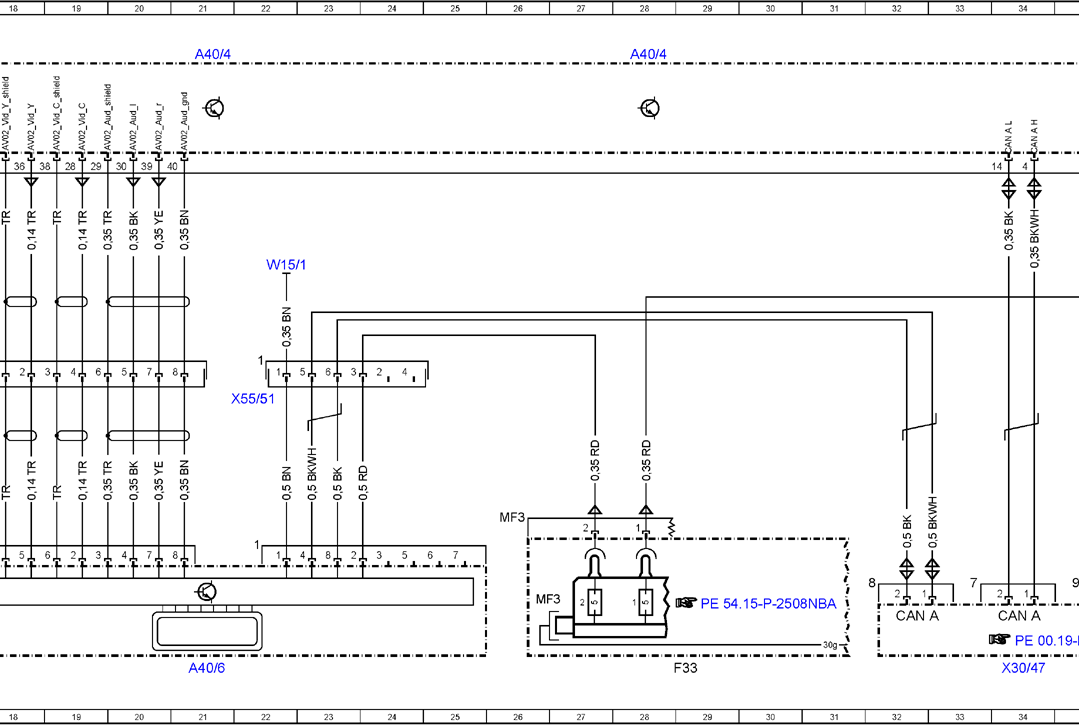

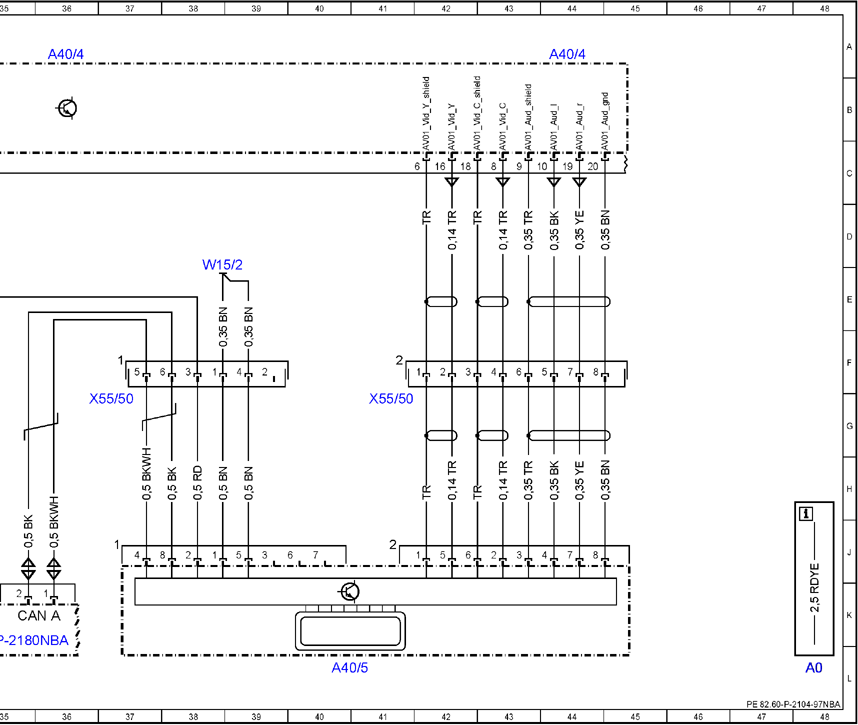

Wiring Diagram For DVD Player Control Unit - PE82.60-P-2104-97NBA
Model 166 as of model year 2016 with code 864 (Rear compartment entertainment package) Control unit A40/4
Model 292 with code 864 (Rear compartment entertainment package) Control unit A40/4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| A40/3 | COMAND control unit | 10L |
| A40/4 | DVD player | 4A |
| A40/4 | DVD player | 12A |
| A40/4 | DVD player | 21A |
| A40/4 | DVD player | 28A |
| A40/4 | DVD player | 36A |
| A40/4 | DVD player | 44A |
| A40/5 | Left rear display | 40L |
| A40/6 | Right rear display | 21L |
| CAN A | Telematics CAN | 32K |
| CAN A | Telematics CAN | 34K |
| CAN A | Telematics CAN | 35K |
| F33 | Battery compartment prefuse box | 3L |
| F33 | Battery compartment prefuse box | 29L |
| F33MF3 | Multiple fuse 3 | 2K |
| F33MF3 | Multiple fuse 3 | 27K |
| W12 | Ground point (center console) | 3E |
| W15/1 | Right footwell ground point | 22E |
| W15/2 | Left footwell ground point | 38E |
| X30/47 | Telematics CAN voltage distributor electrical connector | 34L |
| X55/50 | Left rear display electrical connector | 37G |
| X55/50 | Left rear display electrical connector | 41G |
| X55/51 | Right rear display electrical connector | 17G |
| X55/51 | Right rear display electrical connector | 22G |
