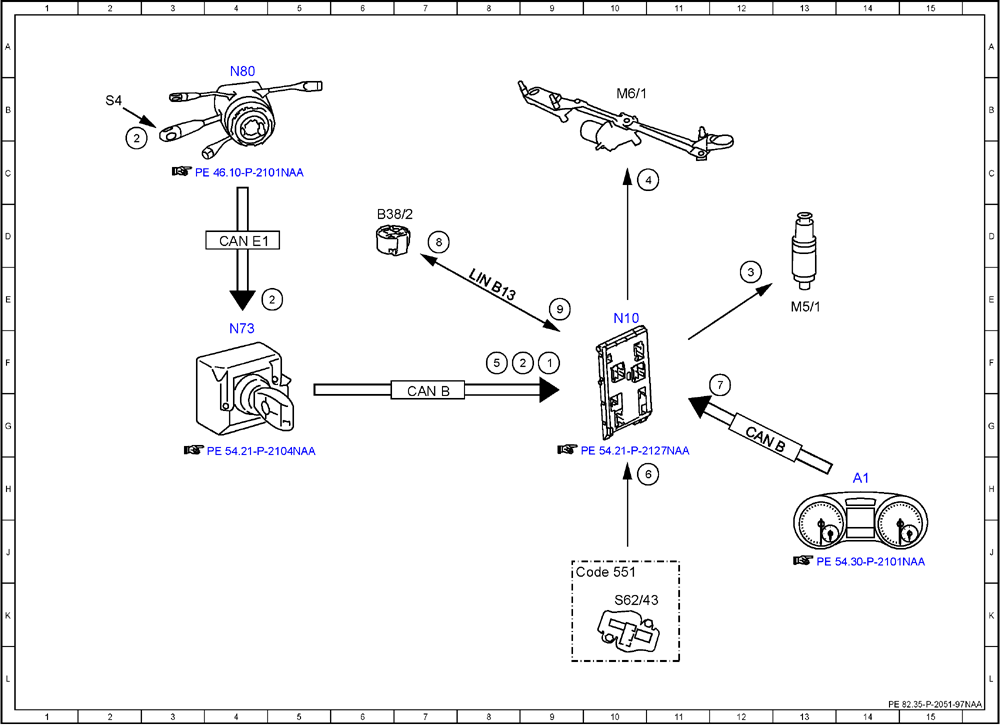

(Electrical Function Schematic For Windshield Washer - PE82.35-P-2051-97NAA)
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 9F |
| 2 | Combination switch, status | 5E |
| 2 | Combination switch, status | 9F |
| 2 | Combination switch, status | 3B |
| 3 | Windshield washer system pump, actuation | 12D |
| 4 | Wiper motor, actuation | 10C |
| 5 | Circuit 50, status | 8F |
| 6 | Engine hood contact switch, status | 10H |
| 7 | Vehicle speed, signal | 12F |
| 8 | Re-wipe, status | 7D |
| 9 | Rain/light sensor, status | 9E |
| A1 | Instrument cluster | 14H |
| B38/2 | Rain/light sensor | 6D |
| CAN B | Interior CAN | 7G |
| CAN B | Interior CAN | 12G |
| CAN E1 | Chassis CAN 1 | 4D |
| Code 551 | Anti-theft alarm system (ATA [EDW]) | 9J |
| LIN B13 | Roof LIN | 8E |
| M5/1 | Windshield washer system pump | 13E |
| M6/1 | Wiper motor | 10B |
| N10 | SAM control unit | 10E |
| N73 | Electronic ignition switch control unit | 4F |
| N80 | Steering column module control unit | 4A |
| S4 | Combination switch | 2B |
| S62/43 | Left engine hood contact switch | 10K |
