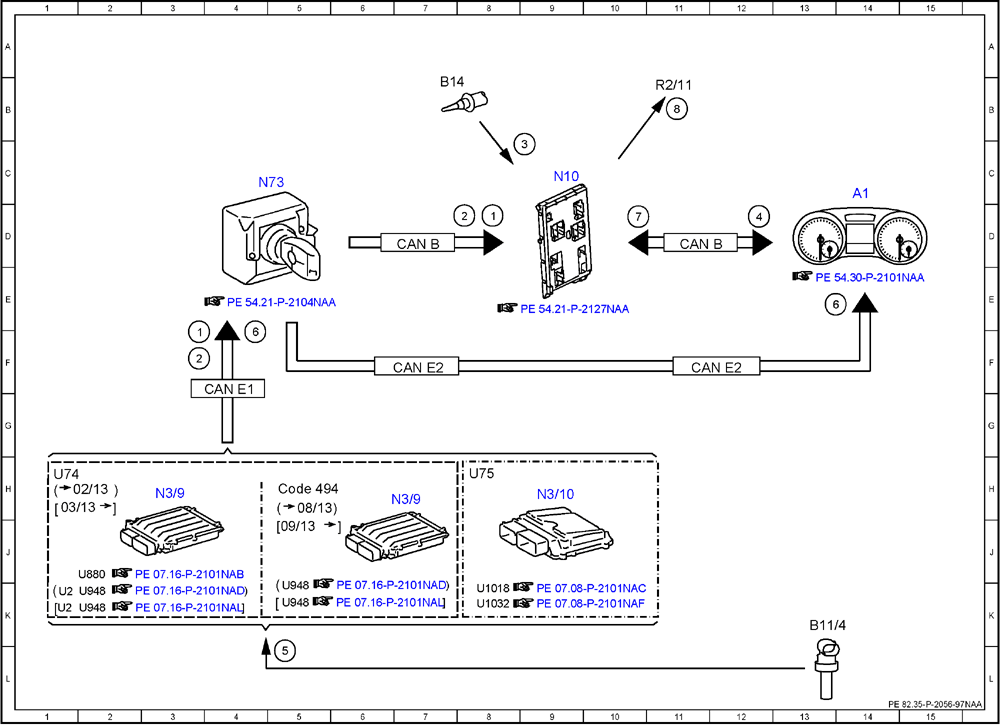

(Electrical Function Schematic For Spray Nozzle And Spray Nozzle Hose Heater - PE82.35-P-2056-97NAA)
MODEL 166 up to model year 2016 with CODE 875 (Heated windscreen washer system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 4F |
| 1 | Engine running, signal | 8D |
| 2 | Drivetrain operational, signal | 8G |
| 2 | Drivetrain operational, signal | 12A |
| 3 | Outside temperature sensor, signal | 7C |
| 4 | Outside temperature, signal | 12G |
| 5 | Coolant temperature sensor, signal | 5K |
| 6 | Coolant temperature, signal | 14E |
| 6 | Coolant temperature, signal | 13E |
| 7 | Displayed outside temperature, signal | 10G |
| 8 | Spray nozzle hose heater, actuation | 11B |
| A1 | Instrument cluster | 14C |
| B11/4 | Coolant temperature sensor | 13K |
| B14 | Outside temperature sensor | 7B |
| CAN B | Interior CAN | 11D |
| CAN B | Interior CAN | 7D |
| CAN E1 | Chassis CAN 1 | 4G |
| CAN E2 | Chassis CAN 2 | 7F |
| CAN E2 | Chassis CAN 2 | 11F |
| Code 494 | USA version | 5H |
| N10 | SAM control unit | 9C |
| N3/10 | ME-SFI [ME] control unit | 9H |
| N3/9 | CDI control unit | 3H |
| N3/9 | CDI control unit | 7H |
| N73 | Electronic ignition switch control unit | 4C |
| R2/11 | Spray nozzle hose heater | 11B |
| U1018 | Valid for gasoline engine 276 | 8K |
| U1032 | Valid for engine 278 and 157 | 8K |
| U2 | Valid for all except USA | 1K |
| U2 | Valid for all except USA | 1K |
| U74 | Valid for diesel engines | 1H |
| U75 | Valid for gasoline engines | 8H |
| U880 | Valid for engine 642 | 2J |
| U948 | Valid for diesel engine 651 | 2K |
| U948 | Valid for diesel engine 651 | 2K |
| U948 | Valid for diesel engine 651 | 5K |
| U948 | Valid for diesel engine 651 | 5K |
