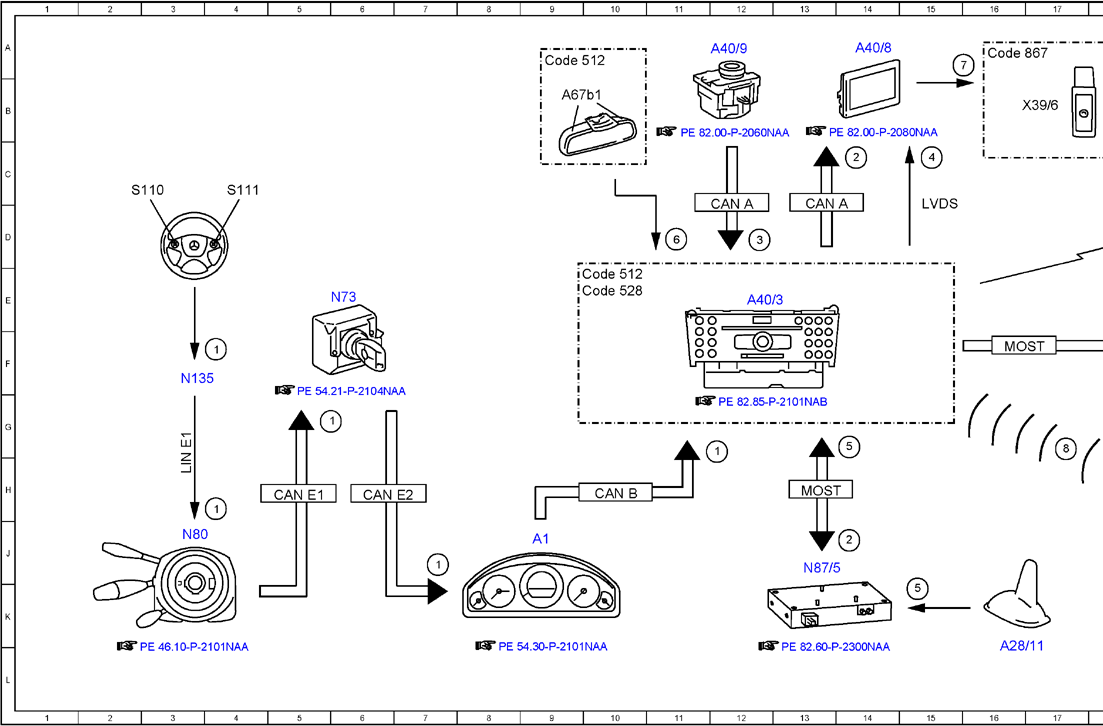

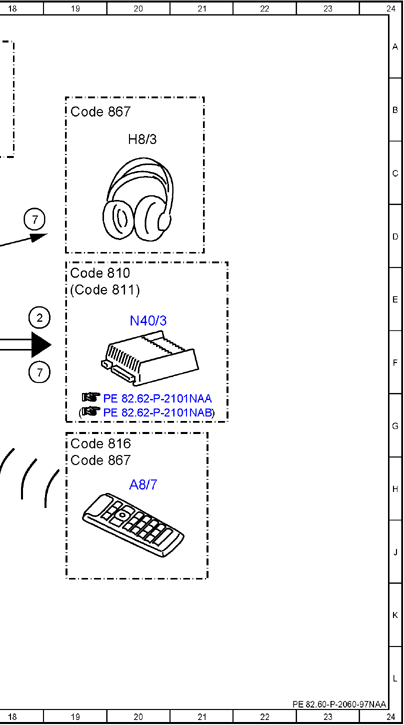

(Electrical Function Schematic For SDAR Function - PE82.60-P-2060-97NAA)
Model 166 up to model year 2016 with code 536 (Sirius satellite radio complete system)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 4H |
| 1 | Multifunction steering wheel button group, signal | 7J |
| 1 | Multifunction steering wheel button group, signal | 5G |
| 1 | Multifunction steering wheel button group, signal | 12G |
| 1 | Multifunction steering wheel button group, signal | 4F |
| 2 | Switch-on request, signal | 14C |
| 2 | Switch-on request, signal | 18E |
| 2 | Switch-on request, signal | 14J |
| 3 | Audio/COMAND controller, request | 12D |
| 4 | Audio/COMAND display, message | 15C |
| 5 | SDAR antenna, signal | 15K |
| 5 | SDAR antenna, signal | 14G |
| 6 | Voice input, signal | 11D |
| 7 | Audio, signal | 18F |
| 7 | Audio, signal | 15A |
| 7 | Audio, signal | 18D |
| 8 | Operation, signal | 17G |
| A1 | Instrument cluster | 9J |
| A28/11 | Multifunction antenna | 16L |
| A40/3 | COMAND control unit | 12E |
| A40/8 | Audio/COMAND display | 14A |
| A40/9 | Audio/COMAND control panel | 12A |
| A67b1 | Hands-free system microphone group | 9B |
| A8/7 | Remote control | 20H |
| CAN A | Telematics CAN | 12D |
| CAN A | Telematics CAN | 13D |
| CAN B | Interior CAN | 10H |
| CAN E1 | Chassis CAN 1 | 5H |
| CAN E2 | Chassis CAN 2 | 6H |
| Code 512 | COMAND APS with DVD changer | 9E |
| Code 512 | COMAND APS with DVD changer | 9A |
| Code 528 | COMAND with DVD changer | 9E |
| Code 810 | Sound system | 19E |
| Code 811 | Extended sound system | 19E |
| Code 816 | Entertainment remote control | 19G |
| Code 867 | SPLITVIEW | 16A |
| Code 867 | SPLITVIEW | 19H |
| H8/3 | Radio frequency headphones | 20C |
| LIN E1 | Steering LIN | 3G |
| LVDS | Low voltage differential signal | 15D |
| MOST | Media Oriented System Transport | 13H |
| MOST | Media Oriented System Transport | 16F |
| N135 | Steering wheel electronics | 3F |
| N40/3 | Sound system amplifier control unit | 20E |
| N73 | Electronic ignition switch control unit | 6E |
| N80 | Steering column module control unit | 3J |
| N87/5 | Satellite digital audio radio (SDAR) control unit | 13J |
| S110 | Left multifunction steering wheel button group | 2C |
| S111 | Right multifunction steering wheel button group | 4C |
| X39/6 | Headphones electrical connector (cabled) | 17B |
