Retrofit Tablet PC Mount - AZ82.80-P-0003GQA

MODEL 166.0## (except 166.074) 1#, 166.8## (except 166.874) 1#

with CODE 866 (Preinstallation for rear entertainment system)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

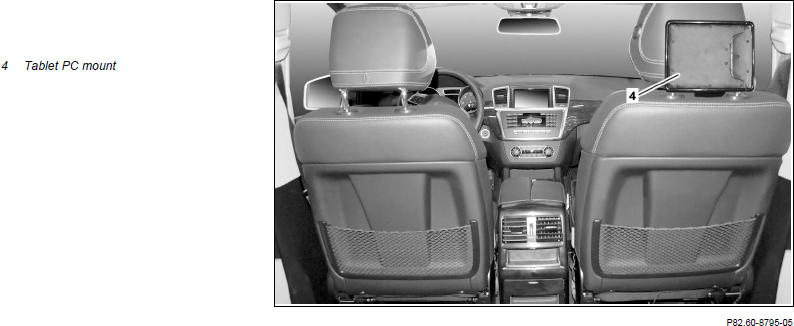

1	Define installation location for tablet PC mount (4)	Clarify with customer, whether the tablet PC mount (4) is to be mounted to the left or right front seat. The installation on the right front seat is described below.
2	Loosen center console in rear area
			AR68.20-P-2000GQ
3	Loosen right front seat
			AR91.10-P-1000GQ
	Install
4	Retrofit Tablet PC mount (4) bracket		AZ82.80-P-0003-04GQA
5	Retrofit Tablet PC mount (4) wiring harness		AZ82.80-P-0003-02GQB
6	Retrofit Tablet PC mount (4)		AZ82.80-P-0003-03GQA
7	Install remaining parts
8	Document retrofitted equipment through VeDoc	Attach "Mount for Tablet PC retrofitted as per AZ82.80-P-0003GQA" note under field organization text to design group 82 and design group 91.
	Check
9	Check tablet PC mount (4) for proper operation	See Owner's Manual.
