Retrofit Rear-Entertainment With Two Screens - AZ82.60-P-0015GQ

MODEL 166.0## (except 166.074) 1#, 166.8## (except 166.874) 1#

without CODE 864 (Rear entertainment system)

without CODE 866 (Preinstallation for rear entertainment system)

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Loosen center console in rear area
	Remove/install center console		AR68.20-P-2000GQ
2	Loosen front seats
	Remove/install front seat		AR91.10-P-1000GQ
3	Remove seat-back lining from front seat backrests
	Remove/install front seat backrest seat-back lining		AR91.10-P-1910GQ
	Install

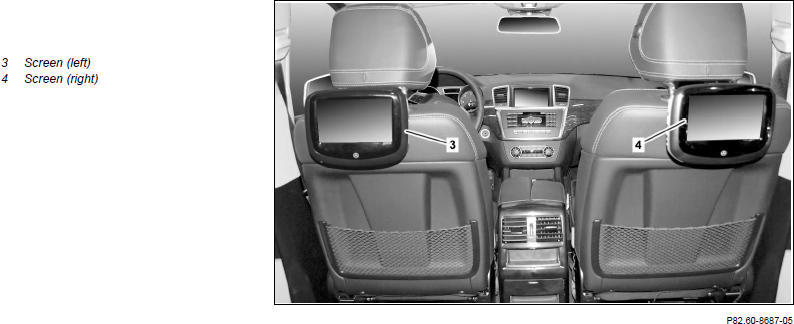

4	Retrofit bracket of screens (3, 4)	Retrofit rear entertainment screen bracket	AZ82.60-P-0015-04GQ
5	Retrofit rear entertainment wiring harness	Retrofit rear entertainment wiring harness Ensure that the wiring harnesses are not damaged by chafing or pinching. Otherwise the corresponding wiring harness must be replaced.	AZ82.60-P-0015-02GQ
6	Attach screens (3, 4) to bracket
7	Install remaining parts
8	Program rear entertainment infrared channel	Program rear entertainment infrared channel	AZ82.60-P-0015-05GZ
9	Program rear entertainment regional code	Program rear entertainment regional code	AZ82.60-P-0015-06GZ
10	Document retrofitted equipment through VeDoc	Attach "Rear Seat Entertainment system with two screens retrofitted as per AZ82.60-P-0015GQ" note under field organization text to design group 82 and design group 91.
11	Perform function test	See rear entertainment operating instructions.
