Retrofit Navigation Box - AN82.85-P-0020-01GQX
Model 166.8## 1#
with code 510 (Audio 20 CD with 6-disc CD changer)
except code 494 (US version)
except code 498 (Japanese version)
except code 512 (COMAND APS with DVD changer)
except code 527 (COMAND APS with single DVD drive (with navigation))
except code 830 (China version)
Model 166.8## 1#
with code 523 (Audio 20 CD)
except code 494 (US version)
except code 498 (Japanese version)
except code 512 (COMAND APS with DVD changer)
except code 527 (COMAND APS with single DVD drive (with navigation))
except code 830 (China version)

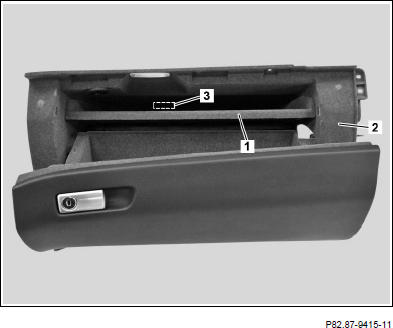

- Pull intermediate bottom (1) out of glove box (2).
- Cut stamped cutout (3) for cable duct out of glove box (2).

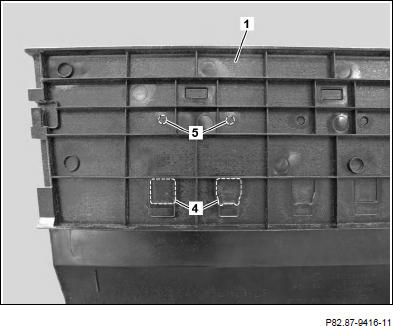

- Cut stamped cutouts (4) out of intermediate bottom (1).
- Drill out stamped cutouts (5) using drill bit with Ø 6 mm.

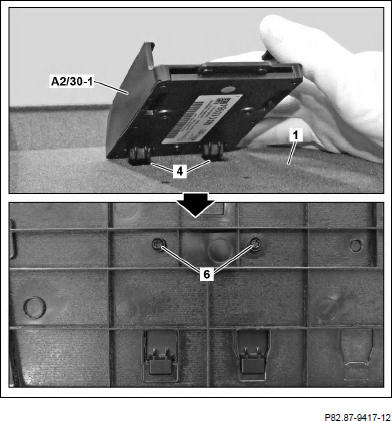

- Slide bracket for navigation module (A2/30-1) into cutouts (4) on intermediate bottom (1) and tighten screws/bolts (6).

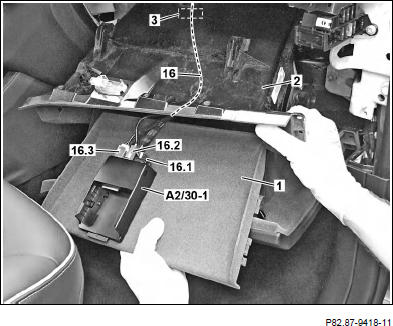

- Route navigation module wiring harness (16) through cutout (3) into glove box (2) and connect black 12-pin connector (16.1), gray 4-pin connector (16.2) and white 2-pin connector (16.3) to bracket for navigation module (A2/30-1).
- Slide intermediate bottom (1) during installation of glove box (2) into glove box (2).
Ensure that navigation module wiring harness (16) is correctly routed. Do not crush navigation module wiring harness (16).
In order to prevent damage.
