Install Additional Fan For COMAND - AN82.85-P-0005-01GQX

Model 166.0##/8## 1#

except code 494 (US version)

except code 498 (Japanese version)

except code 830 (China version)

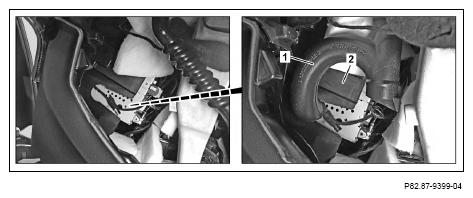

1. Engage air exhaust duct (1) in right-hand guide at slot (2) of COMAND controller unit as shown.

   Courtesy of MERCEDES-BENZ USA

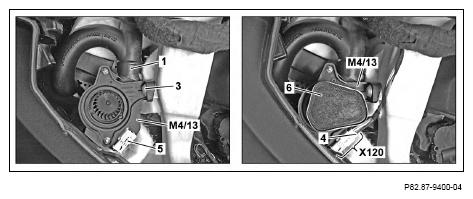

2. Engage COMAND fan motor (M4/13) in air exhaust duct (1) and tighten screw/bolt (3).
3. Engage white 4-pin connector (4) in white 4-pin plug (5) and therefore make the radio fan electrical connection (X120).
4. Engage filter (6) in COMAND fan motor (M4/13) as shown.

Courtesy of MERCEDES-BENZ USA
