Remove/Install TV Tuner - AR82.85-P-7366GQ
Model 166
with code 863 (Digital/analog TV tuner)
Model 166
with code 865 (digital TV)
Model 292
with code 865 (digital TV)

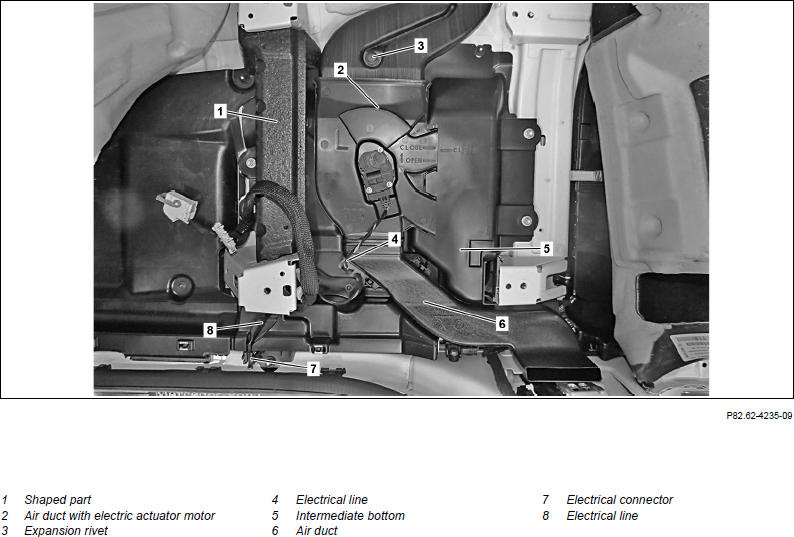

Shown on model 166 with code 581 (Automatic climate control)
Shown on model 166

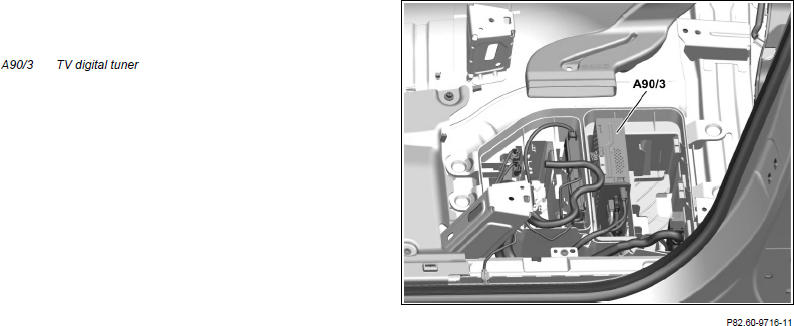

Shown on model 166 with code 865 (TV tuner)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of digital TV tuner control unit (A90/3) | When replacing the digital TV tuner control unit (A90/3). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove left front seat | AR91.10-P-1000GQ | |
| 3 | Remove lower molding from left B-pillar | AR68.30-P-4700GQ | |
| 4 | Place rear floor covering to one side | ||
| 5 | Place front floor covering to one side | ||
| 6.1 | Unhook electric line (4) at molded part and remove molded part | Model 166, 292 with code 865 (digital TV) except code 581 (Automatic air conditioning) Model 166 with code 863 (Digital/analog TV tuner) except code 581 (Automatic air conditioning) |
|
| 6.2 | Unhook electric line (4) at air duct (6) and remove air duct (6) | Model 166, 292 with code 581 (Automatic air conditioning) with code 865 (digital TV) Model 166 with code 581 (Automatic air conditioning) with code 863 (Digital/analog TV tuner) |
|
| 7 | Remove expansion rivet (3) | Fig 1 | |
| 8 | Remove air duct with electric actuator motor (2) and place to one side with electric line (4) connected | ||
| 9 | Remove molded part (1) | ||
| 10 | Unhook electrical connector (7) and electric line (8) at intermediate bottom (5) | ||

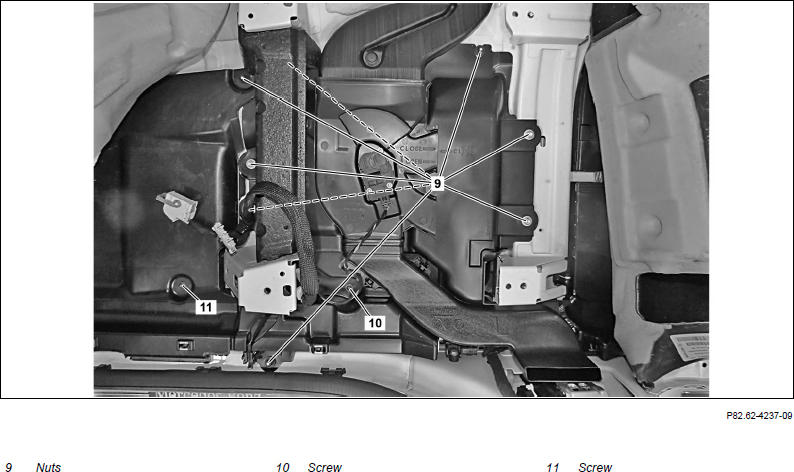

| 11 | Unscrew nuts (9) from intermediate bottom (5) | ||
| 12 | Remove screws (10, 11) | ||
| 13 | Remove intermediate bottom (5) | ||
| 14 | Unclip digital TV tuner (A90/3) and remove from bracket | ||
| 15 | Disconnect electrical connectors | ||
| 16 | Install in the reverse order |
