(Remove/Install Rain/Light Sensor - AR82.30-P-7800CW)
Model 166 up to model year 2016
Model 204, 207, 212, 218
Shown on model 204.0 with code 345 (Windshield wiper with rain sensor)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2.1 | Unclip and remove cover (1) | Model 204, 212, 218 Model 207.4 except code 513 (Speed Limit Assist) except code 608 (Adaptive Highbeam Assist) |
|
| 2.2 | Unclip cover (1) in downward direction using assembly wedge and remove | Model 166 up to model year 2016 Model 207.4 with code 513 (Speed Limit Assist) Model 207.4 with code 608 (Adaptive Highbeam Assist) |

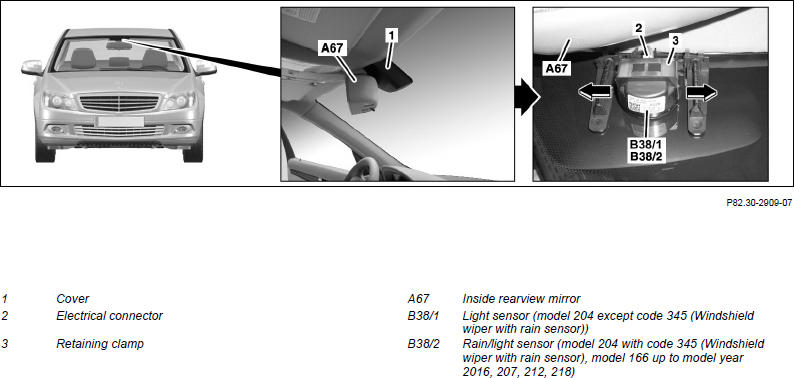

Fig 1 |
| 3 | Remove splinter protection | Model 212 with code Z04 (Light armoring) |
*BA63.20-P-1004-01B |
| 4 | Unhook retaining clamp (3) at both sides of rain/light sensor (B38/2) or light sensor (B38/1) | ||
| 5 | Remove rain/light sensor (B38/2) or light sensor (B38/1) | Otherwise, soiling may cause the rain/light sensor (B38/2) or the light sensor (B38/1) to malfunction. |
|
| 6 | Disconnect electrical connector (2) | ||
| 7 | Install in the reverse order | ||
| 8 | Carry out initial startup of rain/light sensor (B38/2) or light sensor (B38/1) | ||
| AD00.00-P-2000-04A |
COLUMNS
| Number | Designation | Model 212 with code Z04 (Light armoring) | |
|---|---|---|---|
| BA63.20-P-1004-01B | Nut/bolt, splinter guard to rain/light sensor guard plate | Nm | 12 |
